Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0805CS-301EJTSFIXED IND 300NH 330MA 1.2OHM SMD |
1,496 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 300 nH | ±5% | 330 mA | - | Unshielded | 1.2Ohm | 48 @ 250MHz | 620MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
0402HS-270EGTSFIXED IND 27NH 400MA 300MOHM SMD |
1,438 |
|
Datasheet |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 400 mA | - | Unshielded | 300mOhm | 24 @ 250MHz | 2.48GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0805CS-240EJTSFIXED IND 24NH 500MA 220MOHM SMD |
1,410 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 24 nH | ±5% | 500 mA | - | Unshielded | 220mOhm | 50 @ 500MHz | 2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-251EGTSFIXED IND 250NH 350MA 1 OHM SMD |
1,323 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 250 nH | ±2% | 350 mA | - | Unshielded | 1Ohm | 45 @ 250MHz | 680MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-820EKTSFIXED IND 82NH 400MA 420MOHM SMD |
1,252 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 82 nH | ±10% | 400 mA | - | Unshielded | 420mOhm | 65 @ 500MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
NLCV25T-R15M-PFRFIXED IND 150NH 1.8A 52.8MOHM SM |
1,245 |
|
Datasheet |
NLCV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 1.8 A | - | Unshielded | 52.8mOhm Max | 5 @ 25.2MHz | 500MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|

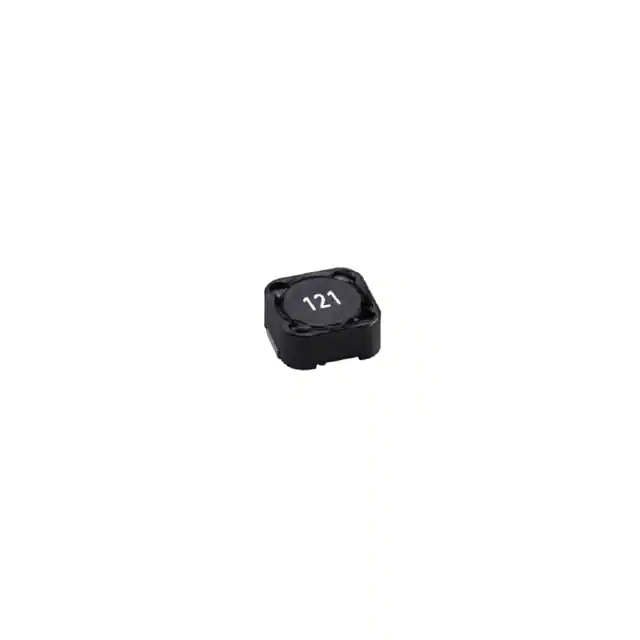

PCS127MT101FIXED IND 100UH 1.7A 220MOHM SMD |
1,200 |
|
Datasheet |
PCS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.7 A | - | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
0805CS-471EKTSFIXED IND 470NH 250MA 1.7OHM SMD |
1,156 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 470 nH | ±10% | 250 mA | - | Unshielded | 1.7Ohm | 33 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-751EJTSFIXED IND 750NH 180MA 2.3OHM SMD |
1,125 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 750 nH | ±5% | 180 mA | - | Unshielded | 2.3Ohm | 23 @ 50MHz | 200MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-470EGTSFIXED IND 47NH 500MA 310MOHM SMD |
1,108 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 500 mA | - | Unshielded | 310mOhm | 60 @ 500MHz | 1.65GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-470EKTSFIXED IND 47NH 500MA 310MOHM SMD |
1,070 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 47 nH | ±10% | 500 mA | - | Unshielded | 310mOhm | 60 @ 500MHz | 1.65GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0402HS-680EGTSFIXED IND 68NH 100MA 1.12OHM SMD |
1,033 |
|
Datasheet |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 68 nH | ±2% | 100 mA | - | Unshielded | 1.12Ohm | 22 @ 250MHz | 1.62GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
0402HP-6N8EGTSFIXED IND 6.8NH 1.5A 55 MOHM SMD |
1,015 |
|
Datasheet |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 6.8 nH | ±2% | 1.5 A | - | Unshielded | 55mOhm | - | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
AL0410-331K-TINDUCTOR 330UH 10% 137MA AXIAL |
3,000 |
|
Datasheet |
- | Axial | Tape & Box (TB) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 0.137 A | - | Shielded | 6.4Ohm Max | 60 @ 796kHz | - | - | -55°C ~ 105°C | 0.796 MHz | - | Through Hole | Axial | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) | - |
|
|
AL0410-101KINDUCTOR 100UH 10% 275MA AXIAL |
3,000 |
|
Datasheet |
- | Axial | Tape & Box (TB) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 0.275 A | - | Shielded | 1.8Ohm Max | 35 @ 2.52MHz | - | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | Axial | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) | - |
|
|
AL0410-470K-TINDUCTOR 47UH 10% 340MA AXIAL |
1,475 |
|
Datasheet |
- | Axial | Tape & Box (TB) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 0.34 A | - | Shielded | 1.22Ohm Max | 50 @ 2.52MHz | - | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | Axial | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) | - |
|
|
AL0410-100K-TINDUCTOR 10UH 10% 500MA AXIAL |
1,450 |
|
Datasheet |
- | Axial | Tape & Box (TB) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 0.5 A | - | Shielded | 580mOhm Max | 60 @ 7.96MHz | - | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | Axial | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) | - |
|
|
AL0410-102KINDUCTOR 1000UH 10% 85MA AXIAL |
1,425 |
|
Datasheet |
- | Axial | Tape & Box (TB) | Active | Drum Core, Wirewound | Ferrite | 1000 µH | ±10% | 0.085 A | - | Shielded | 14Ohm Max | 50 @ 796kHz | - | - | -55°C ~ 105°C | 0.796 MHz | - | Through Hole | Axial | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) | - |
|
|
HBWS1005-7N5SFIXED IND 7.5NH 680MA 104MOHM SM |
10,000 |
|
Datasheet |
HBWS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 7.5 nH | ±0.3nH | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.020" (0.50mm) |
|
|
HBWS1005-2N2SFIXED IND 2.2NH 960MA 70MOHM SMD |
10,000 |
|
Datasheet |
HBWS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.2 nH | ±0.3nH | 960 mA | - | Unshielded | 70mOhm Max | 18 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.020" (0.50mm) |
