Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP5050FDER150MA1IHLP-5050FD-A1 15 20% ER E3 |
468 |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 7.7 A | 15A | Shielded | 29.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
|
SPB1005-R22MIND POWER BEAD 220NH 53A SHLD |
2,190 |
|
Datasheet |
SPB1005 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±20% | 53 A | 33A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
|
LSRNJ12565GL151MMYFIXED IND 150UH 1.54A 207.6 MOHM |
2,000 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.54 A | 1.84A | Shielded | 208mOhm Max | - | 4.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|

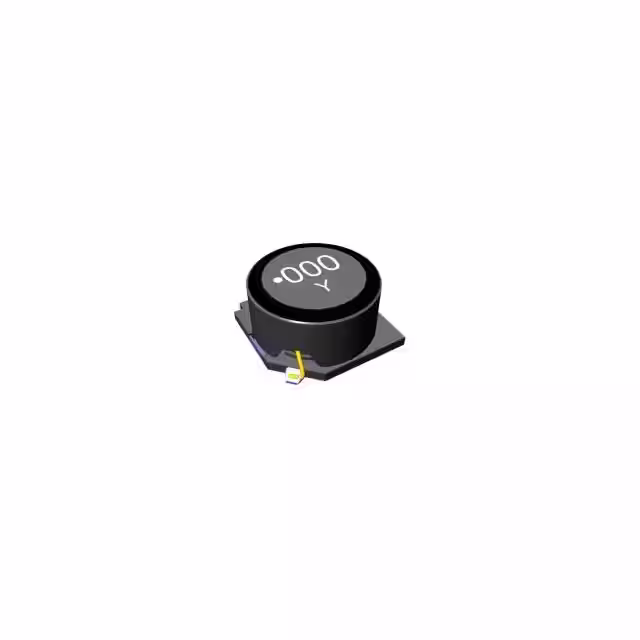

LSRNJ12565GL7R0NMYFIXED IND 7UH 5.21A 19.44MOHM SM |
2,000 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 7 µH | ±30% | 5.21 A | 7.93A | Shielded | 19.5mOhm Max | - | 24.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL680MMYFIXED IND 68UH 2.3A 93 MOHM SMD |
1,991 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 2.78A | Shielded | 93mOhm Max | - | 6.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL330MMYFIXED IND 33UH 3.22A 46.8MOHM SM |
1,965 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 3.22 A | 3.89A | Shielded | 46.8mOhm Max | - | 9.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
BPSA00131358102M00INDUCTOR POWER |
1,800 |
|
Datasheet |
BPSA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 600 mA | 340mA | Shielded | 1.344Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
IHLP2525BDERR33M01FIXED IND 330NH 18A 4.1 MOHM SMD |
1,235 |
|
Datasheet |
IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 18 A | 22A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
|
SPB1005-R10MIND POWER BEAD 100NH 53A SHLD |
1,152 |
|
Datasheet |
SPB1005 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±20% | 53 A | 73A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
|
B82475A1104K000FIXED IND 100UH 970MA 350MOHM SM |
970 |
|
Datasheet |
B82475A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 970 mA | 1A | Unshielded | 350mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
|
LCRNJ10145GL680MNFIXED IND 68UH 1.45A 180MOHM SMD |
2,000 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 1.45 A | 1.66A | Shielded | 150mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|

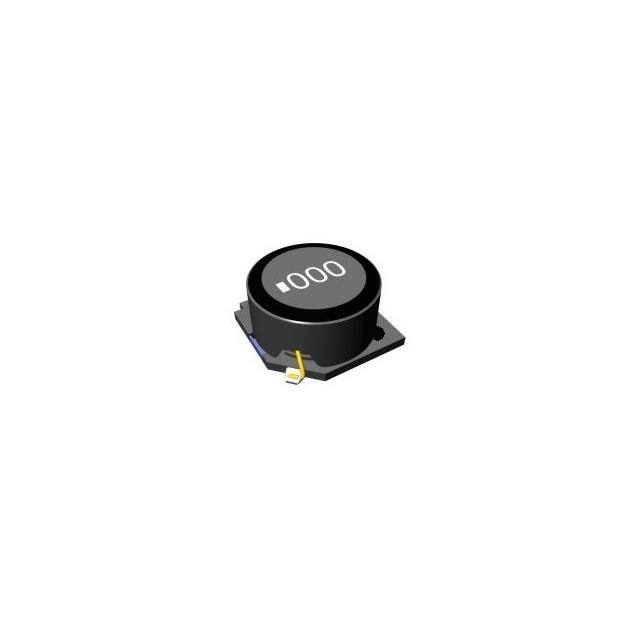

LCRNJ10145GL152MNFIXED IND 1.5MH 270MA 4.44OHM SM |
1,995 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 mH | ±20% | 270 mA | 360mA | Shielded | 3.7Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LCRNJ10145GL471MNFIXED IND 470UH 520MA 1.236 OHM |
1,900 |
|
Datasheet |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 520 mA | 610mA | Shielded | 1.03Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
IHLP2525AHERR22M01FIXED IND 220NH 14A 5.7 MOHM SMD |
1,800 |
|
Datasheet |
IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 14 A | 26A | Shielded | 5.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|
|
5300-11-RCFIXED IND 6.8UH 1.6A 80 MOHM TH |
1,488 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 1.6 A | 1.2A | Unshielded | 80mOhm Max | - | 44MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
B82477G2105M000FIXED IND 1MH 400MA 1.53 OHM SMD |
1,190 |
|
Datasheet |
B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 400 mA | - | Shielded | 1.53Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
|
5300-02-RCFIXED IND 1.2UH 3.2A 19 MOHM TH |
1,028 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 3.2 A | 2.7A | Unshielded | 19mOhm Max | - | 170MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-04-RCFIXED IND 1.8UH 2.9A 23 MOHM TH |
1,000 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 2.9 A | 2.1A | Unshielded | 23mOhm Max | - | 150MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-06-RCFIXED IND 2.7UH 2.5A 33 MOHM TH |
995 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 2.5 A | 1.9A | Unshielded | 33mOhm Max | - | 120MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-48-RCFIXED IND 8.2MH 54MA 68 OHM TH |
995 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 54 mA | 33mA | Unshielded | 68Ohm Max | - | 290kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
