Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744918238FIXED IND 380NH 2.5A 50 MOHM SMD |
949 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 380 nH | ±5% | 2.5 A | - | Unshielded | 50mOhm Max | 100 @ 50MHz | 590MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
SRP7020TA-R10YIND 7X6.6X1.8MM 0.1UH30% 21A SHD |
929 |
|
Datasheet |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 100 nH | ±30% | 21 A | 40A | Shielded | 2.4mOhm Max | 6 @ 100kHz | 180MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.079" (2.00mm) |
|
|
SRP7020TA-5R6MIND 7X6.6X1.8MM 5.6UH20% 4A SHD |
144 |
|
Datasheet |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 5.6 µH | ±20% | 4 A | 6A | Shielded | 68mOhm Max | 15 @ 100kHz | 20MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.079" (2.00mm) |
|
|
74479889268WE-PMI SMT POWER INDUCTOR SIZE 1 |
3,000 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 800 mA | 700mA | Shielded | 625mOhm Max | 15 @ 1MHz | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74479889233WE-PMI SMT POWER INDUCTOR SIZE 1 |
2,970 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 900 mA | 1.3A | Shielded | 312.5mOhm Max | 15 @ 1MHz | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

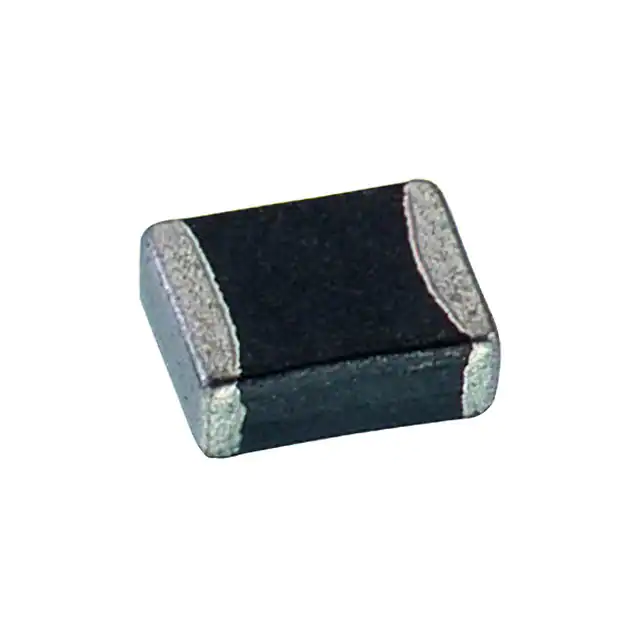

74479889247FIXED IND |
2,890 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Bulk | Active | Multilayer | - | 4.7 µH | ±20% | 900 mA | 900mA | Shielded | 500mOhm Max | 15 @ 1MHz | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRR0906-103YLFIXED IND 10MH 70MA 38 OHM SMD |
2,328 |
|
Datasheet |
SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±15% | 70 mA | 80mA | Shielded | 38Ohm Max | 100 @ 79.6kHz | 700kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.248" (6.30mm) |
|
PM4342.471NLTFIXED IND 470NH 28A 1.5 MOHM SMD |
1,498 |
|
Datasheet |
PM4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 28 A | 43A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
SRP7020TA-4R7MIND 7X6.6X1.8MM 4.7UH20% 4.5A SH |
1,410 |
|
Datasheet |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 4.7 µH | ±20% | 4.5 A | 7A | Shielded | 60mOhm Max | 15 @ 100kHz | 22MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.079" (2.00mm) |
|
SRP7030-R22MFIXED IND 220NH 23A 0.0028OHM SM |
970 |
|
Datasheet |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±20% | 23 A | 36A | Shielded | 2.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
SRP7030-1R8MFIXED IND 1.8UH 8.5A 0.017OHM SM |
935 |
|
Datasheet |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1.8 µH | ±20% | 8.5 A | 13A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
SRR0906-272YLFIXED IND 2.7MH 140MA 9.2OHM SMD |
841 |
|
Datasheet |
SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±15% | 140 mA | 170mA | Shielded | 9.2Ohm Max | 100 @ 252kHz | 1.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.248" (6.30mm) |
|
|
ASPI-1207S-221M-TFIXED IND 220UH 1.16A 0.39OHM SM |
307 |
|
Datasheet |
ASPI-1207S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.16 A | - | Shielded | 390mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
ASPI-1207S-330M-TFIXED IND 33UH 3A 0.065OHM SMD |
197 |
|
Datasheet |
ASPI-1207S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3 A | - | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
ASPI-1207S-220M-TFIXED IND 22UH 3.6A 0.043OHM SMD |
177 |
|
Datasheet |
ASPI-1207S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.6 A | - | Shielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
P1173.472NLFIXED IND 4.7UH 7.9A 9.5MOHM SMD |
1,610 |
|
Datasheet |
P1173NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±30% | 7.9 A | 8.2A | Shielded | 9.5mOhm Max | - | 33MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
MGV03023R3M-10FIXED IND 3.3UH 3A 145 MOHM SMD |
4,924 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3 A | 3.5A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRP7030-R82MFIXED IND 820NH 13A 0.008OHM SMD |
993 |
|
Datasheet |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±20% | 13 A | 20A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
AIAP-03-180KFIXED IND 18UH 6.64A 23 MOHM TH |
960 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 18 µH | ±10% | 6.64 A | - | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
B82477G2333M000FIXED IND 33UH 2.1A 57 MOHM SMD |
745 |
|
Datasheet |
B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.1 A | - | Shielded | 57mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
