Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N3822A-1DIODE ZENER 3.6V 1W DO204AL |
7,990 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Active | 3.6 V | ±5% | 1 W | 10 Ohms | 75 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/115 | Through Hole | DO-204AL (DO-41) |
|
|
JANTXV1N3823A-1DIODE ZENER 3.9V 1W DO204AL |
8,721 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Active | 3.9 V | ±5% | 1 W | 9 Ohms | 25 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/115 | Through Hole | DO-204AL (DO-41) |
|
|
JANTXV1N3824A-1DIODE ZENER 4.3V 1W DO204AL |
9,636 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Discontinued at Digi-Key | 4.3 V | ±5% | 1 W | 9 Ohms | 5 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/115 | Through Hole | DO-204AL (DO-41) |
|
|
JANTXV1N3826A-1DIODE ZENER 5.1V 1W DO204AL |
4,019 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Discontinued at Digi-Key | 5.1 V | ±5% | 1 W | 7 Ohms | 3 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/115 | Through Hole | DO-204AL (DO-41) |
|
|
JANTXV1N3828A-1DIODE ZENER 6.2V 1W DO204AL |
5,187 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Discontinued at Digi-Key | 6.2 V | ±5% | 1 W | 2 Ohms | 3 µA @ 3 V | 1.2 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/115 | Through Hole | DO-204AL (DO-41) |
|
|
JANTXV1N3827A-1DIODE ZENER 5.6V 1W DO41 |
3,877 |
|
- |
- | DO-204AL, DO-41, Axial | Bulk | Active | 5.6 V | ±5% | 1 W | 5 Ohms | 3 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 175°C (TA) | Military | MIL-PRF-19500/115 | Through Hole | DO-41 |
|
1N991ADIODE ZENER 180V 500MW DO7 |
9,826 |
|
Datasheet |
- | DO-204AA, DO-7, Axial | Bulk | Active | 180 V | ±10% | 500 mW | 2200 Ohms | 5 µA @ 136.8 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Through Hole | DO-7 |
|
|
1N991BDIODE ZENER 180V 500MW DO7 |
3,498 |
|
Datasheet |
- | DO-204AA, DO-7, Axial | Bulk | Active | 180 V | ±5% | 500 mW | 2200 Ohms | 5 µA @ 136.8 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Through Hole | DO-7 |
|
JANTX1N981D-1/TRDIODE ZENER 68V 500MW DO204AH |
2,013 |
|
- |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 68 V | ±1% | 500 mW | 230 Ohms | 500 nA @ 52 V | 1.1 V @ 200 mA | -55°C ~ 175°C | Military | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
|

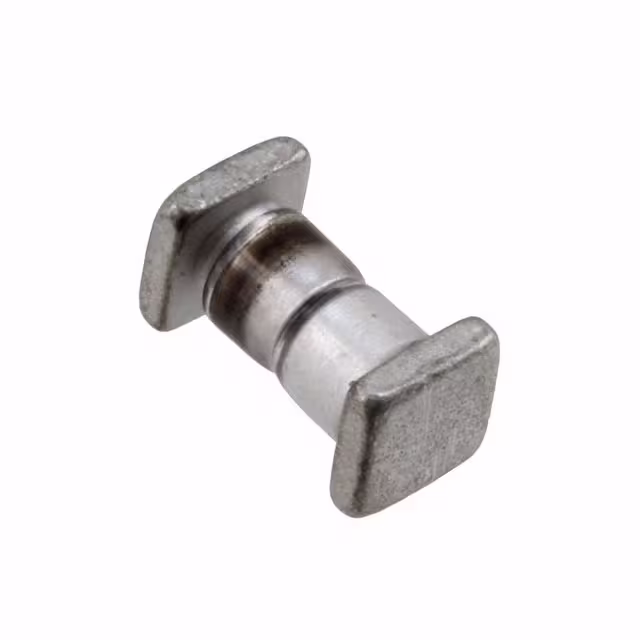

1N4465USDIODE ZENER 10V 1.5W D5A |
5,572 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 10 V | ±5% | 1.5 W | 5 Ohms | 300 nA @ 8 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5A |
|
|
JANTXV1N4129UR-1DIODE ZENER 62V 500MW DO213AA |
3,821 |
|
Datasheet |
- | DO-213AA | Bulk | Active | 62 V | ±5% | 500 mW | 500 Ohms | 10 nA @ 47.1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/435 | Surface Mount | DO-213AA |
|
|
1N4486USDIODE ZENER 75V 1.5W SQ-MELF |
8,390 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 75 V | ±5% | 1.5 W | 130 Ohms | 250 nA @ 60 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
1N4460USDIODE ZENER 6.2V 1.5W D5A |
4,488 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 6.2 V | ±5% | 1.5 W | 4 Ohms | 10 µA @ 3.72 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | D-5A |
|
|
1N4461USDIODE ZENER 6.8V 1.5W D5A |
3,272 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 6.8 V | ±5% | 1.5 W | 2.5 Ohms | 5 µA @ 4.08 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | D-5A |
|
|
1N4462USDIODE ZENER 7.5V 1.5W SQ-MELF |
8,894 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 7.5 V | ±5% | 1.5 W | 2.5 Ohms | 1 µA @ 4.5 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
1N4471USDIODE ZENER 18V 1.5W D5A |
8,653 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 18 V | ±5% | 1.5 W | 11 Ohms | 50 nA @ 14.4 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | D-5A |
|
|
1N4475USDIODE ZENER 27V 1.5W SQ-MELF |
6,586 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 27 V | ±5% | 1.5 W | 18 Ohms | 50 nA @ 21.6 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
1N4477USDIODE ZENER 33V 1.5W D5A |
4,970 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 33 V | ±5% | 1.5 W | 25 Ohms | 50 nA @ 26.4 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | D-5A |
|
|
1N4478USDIODE ZENER 36V 1.5W SQ-MELF |
3,094 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 36 V | ±5% | 1.5 W | 27 Ohms | 50 nA @ 28.8 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
1N4483USDIODE ZENER 56V 1.5W SQ-MELF |
6,559 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 56 V | ±5% | 1.5 W | 70 Ohms | 250 nA @ 44.8 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
