TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6KE180ARLTVS DIODE 154VWM 246VC AXIAL |
6,229 |
|
Datasheet |
T-18, Axial | P6KE6.8A | Bulk | Active | Zener | 1 | - | 154V (Max) | 171V | 246V | 2.4A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|

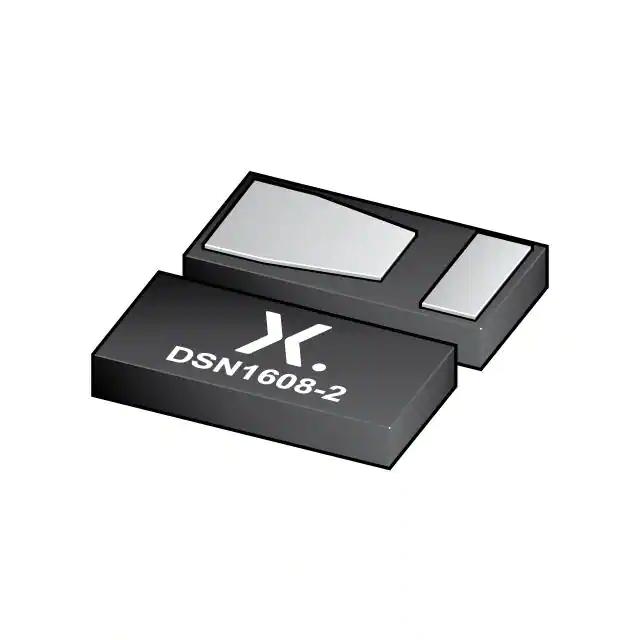

PTVS12VZ1USK315TRANS VOLTAGE SUPPRESSOR DIODE |
7,377 |
|
Datasheet |
0603 (1608 Metric) | - | Bulk | Active | Zener | 1 | - | 12V (Max) | 13.3V | 21.8V | 10.5A | 1900W (1.9kW) | No | General Purpose | 430pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN1608-2 |
|

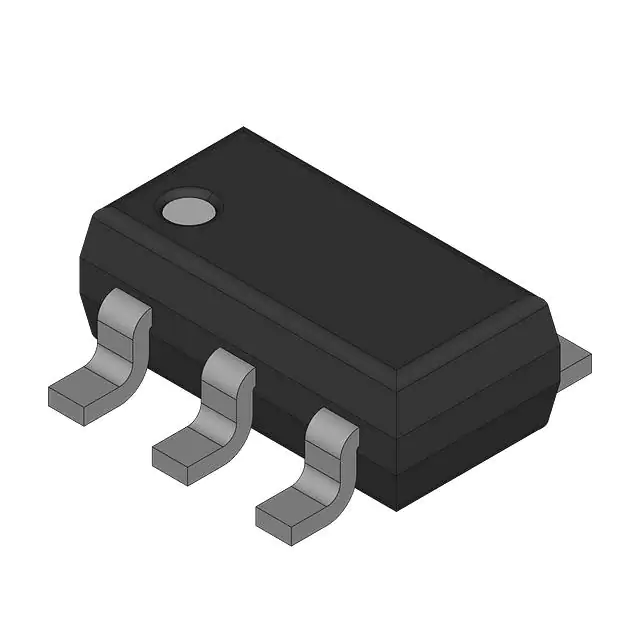

PRTR5V0U4D/S911125TRANS VOLTAGE SUPPRESSOR DIODE |
8,199 |
|
Datasheet |
SC-74, SOT-457 | - | Bulk | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | - | - | - | Yes | DVI, HDMI, USB | 1pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | 6-TSOP |
|
ESD201-B2-03LRHE6327TRANS VOLTAGE SUPPRESSOR DIODE |
8,867 |
|
Datasheet |
SC-101, SOT-883 | - | Bulk | Active | Zener | - | 2 | 5.5V (Max) | - | 12.1V (Typ), 10.2V (Typ) | 16A | - | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | PG-TSLP-3 |
|
PESD5V0R1BSF315TVS DIODE |
9,736 |
|
Datasheet |
0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 5V (Max) | 6V | 5V | 4.5A (8/20µs) | - | No | General Purpose | 0.1pF @ 2.5GHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
|
SMB15F20ATVS DIODE 20VWM 32.4VC SMBFLAT |
4,079 |
|
- |
DO-221AA, SMB Flat Leads | SMB6FxxA | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 20V | 22.2V | 32.4V | 19.4A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMBflat |
|
|
ESD0514PD-TPTVS DIODE 5VWM 12VC DFN0808-4 |
5,189 |
|
Datasheet |
4-XFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 5V (Max) | 6V | 12V | 3.5A (8/20µs) | 40W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN0808-4 |
|
DLP05LCQ-7-FTVS DIODE 5VWM 11VC SOT23 |
3,707 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6V | 11V | 17A (8/20µs) | 300W | No | General Purpose | 1.6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
TPD6V8LP-7BTVS DIODE 5VWM 19VC DFN1006-2 |
8,971 |
|
- |
0402 (1006 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.4V | 19V | 4.5A (8/20µs) | 85W | No | - | 65pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
SDA004V-7TVS DIODE 70VWM 16VC SOT363 |
7,735 |
|
- |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 2 | - | 70V (Max) | 80V | 16V | 20A (8/20µs) | - | No | USB 1.1, USB 2.0 | 3.3pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
MMBZ5V6ALQ-7-FTVS DIODE 3VWM 8VC SOT23-3 |
9,760 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 3V | 5.32V | 8V | 3A | 24W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
CSMF05C BKTVS DIODE 5VWM 11VC SOT363 |
7,597 |
|
- |
6-TSSOP, SC-88, SOT-363 | - | Bulk | Obsolete | Zener | 5 | - | 5V | 6.2V | 11V | 9A (8/20µs) | 100W | No | Telecom | 100pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
CSMF24C TRTVS DIODE 24VWM 45VC SOT363 |
6,706 |
|
- |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 24V | 26.7V | 45V | 2A (8/20µs) | 100W | No | Telecom | 30pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
CSMF05C TRTVS DIODE 5VWM 11VC SOT363 |
8,739 |
|
- |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5V | 6.2V | 11V | 9A (8/20µs) | 100W | No | Telecom | 100pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
SZNSP8814MTWTAGTVS DIODE 3VWM 15VC 8-WDFNW |
5,579 |
|
- |
8-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3V (Max) | 3.2V | 15V | 35A (8/20µs) | - | No | Ethernet | 5pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 8-WDFNW (2.2x2) |
|
1SMB51AT3GTVS DIODE 51VWM 82.4VC 425TEPBGA |
7,676 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 7.3A | 600W | No | Telecom | 345pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
1N6288AGTVS DIODE 43.6VWM 70.1VC AXIAL |
3,644 |
|
Datasheet |
DO-201AD, Axial | Mosorb™ | Bulk | Active | Zener | 1 | - | 43.6V | 48.5V | 70.1V | - | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|
|
1SMA9.0AT3GTVS DIODE 9VWM 15.4VC 6TDFN |
9,195 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 9V | 10V | 15.4V | 26A | 400W | No | General Purpose | 1200pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
1N6292AGTVS DIODE 64.1VWM 103VC AXIAL |
9,040 |
|
Datasheet |
DO-201AD, Axial | Mosorb™ | Bulk | Active | Zener | 1 | - | 64.1V | 71.3V | 103V | - | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|
|
1SMB45AT3GTVS DIODE 45V 600W |
7,619 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 45V | 50V | 72.7V | 8.3A | 600W | No | Telecom | 385pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
