TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTVS12VZ1USKNYLTVS DIODE 12VWM 32VC DSN1608-2 |
7,705 |
|
Datasheet |
0603 (1608 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V (Max) | 13.3V | 32V | 65A (8/20µs) | 2100W (2.1kW) | No | General Purpose | 430pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN1608-2 |
Schottky.jpg)
|
ESDBL5V0AE2-TPTVS DIODE 5VWM 10VC 0201-B |
4,678 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 5.8V | 10V | 5A (8/20µs) | 50W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201-B |
|
ESDH12VD1-TPTVS DIODE 12VWM 35VC SOD123 |
6,276 |
|
Datasheet |
SOD-123 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V (Max) | 13V | 35V | 120A (8/20µs) | 4200W (4.2kW) | No | General Purpose | 620pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123 |
|
ESDLC5V0PB8-TPTVS DIODE 5VWM 20VC DFN3810-9 |
7,344 |
|
Datasheet |
9-UDFN | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5V (Max) | 6V | 20V | 5A (8/20µs) | 100W | Yes | General Purpose | 0.29pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN3810-9 |
|
ESDN12VD3-TPTVS DIODE 12VWM 27VC SOD323 |
7,895 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V (Max) | 13V | 27V | 20A (8/20µs) | 990W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SP0544TUTGTVS DIODE 5VWM 7VC 10UDFN |
7,442 |
|
Datasheet |
10-XFDFN | SP0544T | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | - | 7V (Typ) | 2A (8/20µs) | - | Yes | HDMI | 0.5pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-µDFN (2.5x1.0) |
|
CM1773-5006YLTVS DIODE DIE |
3,525 |
|
Datasheet |
Die | - | Bulk | Obsolete | Zener | - | 1 | - | 200V | - | - | - | No | General Purpose | - | -40°C ~ 150°C | - | - | Surface Mount | Die |
|

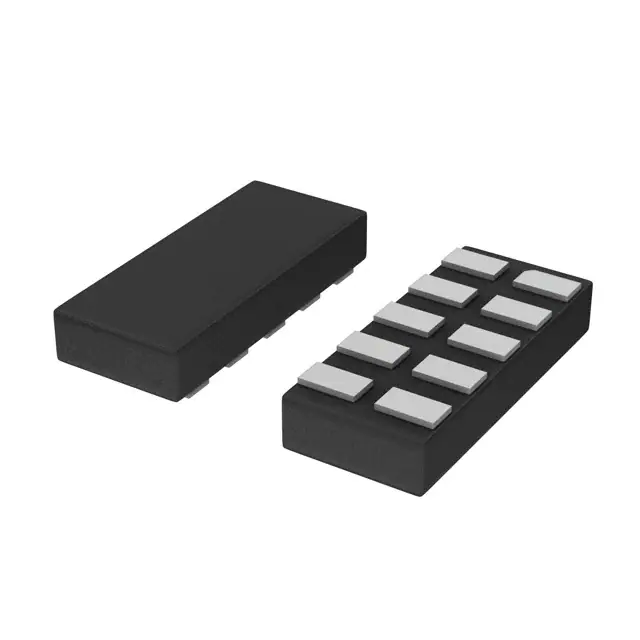

IP4283CZ10-TBR/S9XTVS DIODE 5.5VWM 9.5VC DFN2510 |
9,301 |
|
- |
10-XFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 9.5V (Typ) | 3.8A (8/20µs) | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN2510-10 |
|

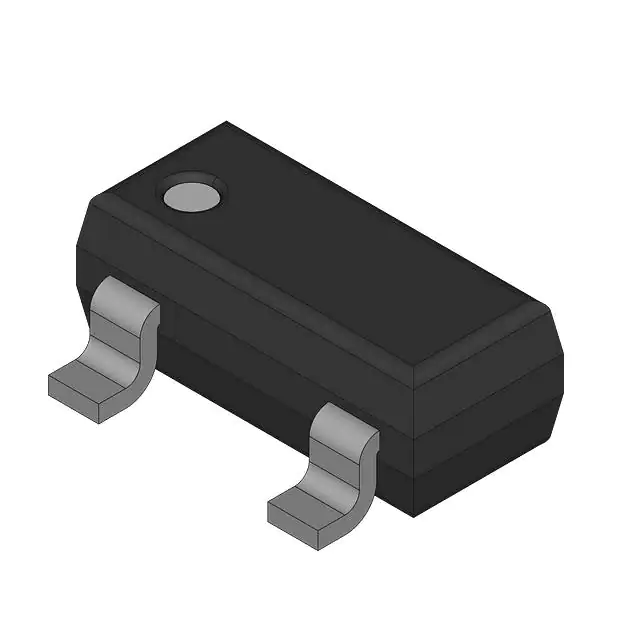

PESD15VS2UT/ZLRDIODE ESD SOT23 |
9,931 |
|
- |
TO-236-3, SC-59, SOT-23-3 | PESDxS2UT | Tape & Reel (TR) | Active | Zener | 2 | - | 15V (Max) | 17.6V | 40V | 5A (8/20µs) | 160W | No | General Purpose | 32pF @ 1MHz | -65°C ~ 150°C (TA) | - | - | Surface Mount | SOT-23 (TO-236AB) |
|
|
PESD24VS2UT/ZLRDIODE ESD SOT23 |
3,753 |
|
- |
TO-236-3, SC-59, SOT-23-3 | PESDxS2UT | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | 26.5V | 70V | 3A (8/20µs) | 160W | No | General Purpose | 23pF @ 1MHz | -65°C ~ 150°C (TA) | - | - | Surface Mount | SOT-23 (TO-236AB) |
|
|
PESD5V0C1BSF/S50YLDIODE ESD BIDIRECT SOD962 |
2,973 |
|
Datasheet |
2-XFDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 6V | 5.5V (Typ) | 9A (8/20µs) | - | No | Telecom | 0.2pF @ 2.5GHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DSN0603 |
|
|
PESD5V0C1USF/S50YLDIODE ESD BIDIRECT SOD962 |
9,606 |
|
Datasheet |
2-XFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 5.5V | 3V (Typ) | 9A (8/20µs) | - | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DSN0603 |
|
|
PESD5V0H1BSF/S50YLDIODE ESD BIDIRECT SOD962 |
5,113 |
|
- |
- | * | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PESD5V0S1BA/ZLXDIODE ESD PROTECT SOD323 |
2,747 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | Telecom | 35pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
PESD5V2S2UT/ZLRDIODE ESD PROTECT SOT23 |
4,397 |
|
- |
- | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMAJ180CA-HTVS DIODE 180VWM 292VC SMA |
3,743 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 180V | 201V | 292V | 1.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ400CA-HTVS DIODE 400VWM 648VC SMA |
3,524 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 400V | 447V | 648V | 600mA | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ440CA-HTVS DIODE 440VWM 713VC SMA |
4,391 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 440V | 492V | 713V | 600mA | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ180CA-HTVS DIODE 180VWM 292VC SMB |
9,384 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 180V | 201V | 292V | 2.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ250CA-HTVS DIODE 250VWM 405VC SMB |
7,747 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 250V | 279V | 405V | 1.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
