TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DUP45V6P5-7TVS DIODE 3VWM 10.5VC SOT953 |
3,130 |
|
Datasheet |
SOT-953 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3V | 5.3V | 10.5V | - | 20W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-953 |
|
IP4327CX15,135TVS DIODE WAFER |
5,696 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IP4340CX15/P,135TVS DIODE 15WLCSP |
9,088 |
|
Datasheet |
15-XFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | - | 6 | - | 6V | - | - | - | - | Multimedia Card Interface | 11pF @ 1MHz | -35°C ~ 85°C (TA) | - | - | Surface Mount | 15-WLCSP (1.56x1.56) |
|

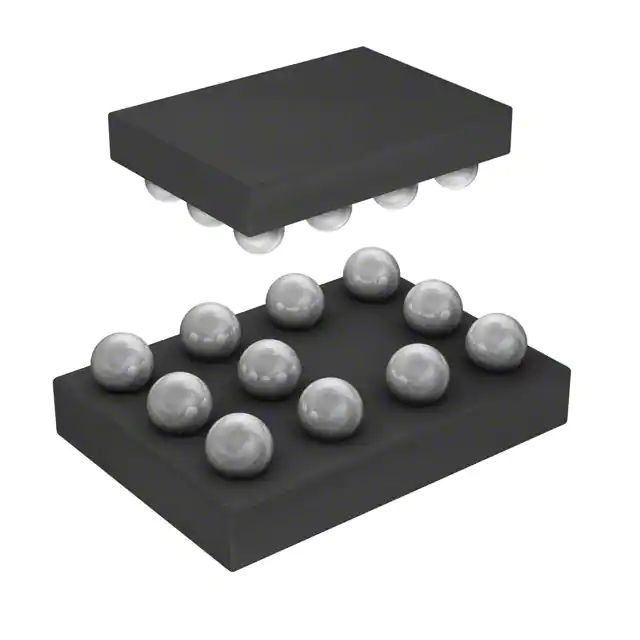

IP4365CX11/P,135TVS DIODE 5.5VWM 11WLCSP |
2,356 |
|
Datasheet |
11-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5.5V | 6V | - | - | - | Yes | Multimedia Card Interface | 10pF @ 1MHz | -35°C ~ 85°C (TA) | - | - | Surface Mount | 11-WLCSP (1.56x1.16) |
|
IP4223CZ6,125TVS DIODE 6TSOP |
6,513 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | - | 6V | - | - | - | Yes | General Purpose | 1.5pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOP |
|
IP4285CZ6-TY,125TVS DIODE 5.5VWM 4.2VC 6TSSOP |
7,499 |
|
- |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 4.2V (Typ) | 4A (8/20µs) | - | Yes | General Purpose | 0.85pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSSOP |
|
PRTR5V0U2AX/S911,2TVS DIODE 5.5VWM SOT143B |
7,955 |
|
Datasheet |
TO-253-4, TO-253AA | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | - | - | - | Yes | - | 1.8pF @ 1MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-143B |
|
SM16LC08/TR13TVS DIODE 8VWM 16SO |
7,279 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | 8 | - | 8V | - | - | - | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SO |
|
|
SM16LC08C/TR13TVS DIODE 8VWM 13.4VC 16SO |
2,531 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 8 | 8V | 8.5V | 13.4V | 5A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SO |
|
|
SM16LC08CE3/TR13TVS DIODE 8VWM 13.4VC 16SO |
4,820 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 8 | 8V | 8.5V | 13.4V | 5A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SO |
|
|
SL05E3/TR7TVS DIODE SOT23 |
6,507 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23 |
|
|
SL12E3/TR7TVS DIODE SOT23 |
8,076 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23 |
|
|
SL15E3/TR7TVS DIODE SOT23 |
2,859 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23 |
|
|
SM03E3/TR7TVS DIODE 3.3VWM 7VC SOT23 |
4,066 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 3.3V | 4V | 7V | 5A (8/20µs) | 300W | No | General Purpose | 600pF @ 1MHz, 300pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM05E3/TR7TVS DIODE 5VWM 9.8VC SOT23 |
9,757 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V | 6V | 9.8V | 5A (8/20µs) | 300W | No | General Purpose | 400pF @ 1MHz, 200pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM12E3/TR7TVS DIODE 12VWM 19VC SOT23 |
2,584 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 12V | 13.3V | 19V | 5A (8/20µs) | 300W | No | General Purpose | 160pF @ 1MHz, 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM15E3/TR7TVS DIODE 15VWM 24VC SOT23 |
5,649 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 15V | 16.7V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 130pF @ 1MHz, 65pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM24E3/TR7TVS DIODE 24VWM 43VC SOT23 |
2,495 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 24V | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 80pF @ 1MHz, 40pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM36E3/TR7TVS DIODE 36VWM 60VC SOT23 |
9,529 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 36V | 40V | 60V | 5A (8/20µs) | 300W | No | General Purpose | 70pF @ 1MHz, 35pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
MAD1108E3/TUTVS DIODE 75VWM 16DIP |
6,158 |
|
Datasheet |
16-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Steering (Rail to Rail) | 8 | - | 75V (Max) | 90V | - | - | - | No | Ethernet | 1.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | 16-DIP |
