TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IP4286CZ6-TTY,125TVS DIODE 6TSSOP |
4,628 |
|
- |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | - | 6V | - | - | - | Yes | General Purpose | - | - | - | - | Surface Mount | 6-TSSOP |
|
IP4303CX4/P,135TVS DIODE 4WLCSP |
4,382 |
|
- |
4-WFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | - | - | 2 | - | 15V | - | - | - | - | - | - | - | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
|
IP4305CX4/LF/P,315TVS DIODE 4WLCSP |
6,030 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 2 | - | - | 15V | - | - | - | - | - | - | - | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
IP4310CX8/P,135TVS DIODE 5.5VWM 8WLCSP |
7,002 |
|
Datasheet |
8-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5.5V (Max) | 6V | - | - | - | Yes | HDMI | 12pF @ 1MHz | -30°C ~ 85°C (TA) | - | - | Surface Mount | 8-WLCSP (1.16x1.16) |
|

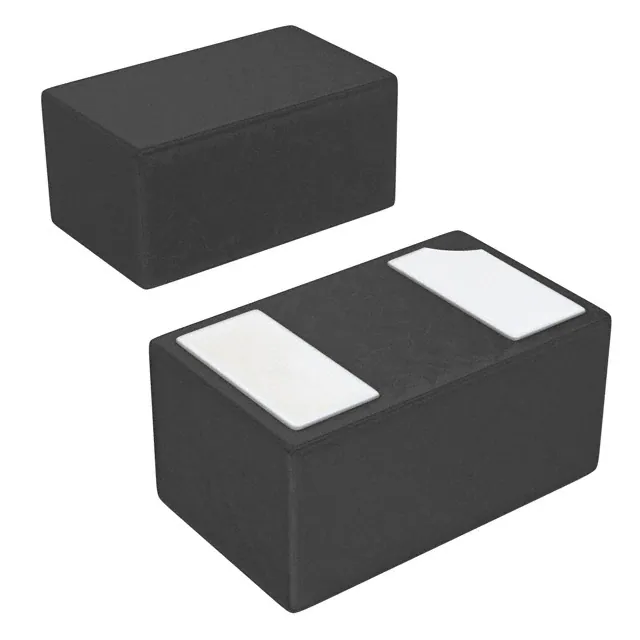

LXES1UBBB1-008TVS DIODE 6VWM SMD |
6,920 |
|
Datasheet |
2-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 6V | 7V | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
CM1771-5006YJQTVS DIODE DIE |
3,593 |
|
Datasheet |
Die | - | Bulk | Obsolete | Zener | - | 1 | - | 90V | - | - | - | No | General Purpose | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
CM6116TVS DIODE 20VC 4WLCSP |
3,209 |
|
- |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | - | 16V | 20V | 1A (8/20µs) | - | No | General Purpose | - | -30°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
LXES15AAA1-100TVS DIODE 1005 |
3,266 |
|
Datasheet |
0402 (1005 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | - | - | - | - | - | No | General Purpose | 0.05pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 1005 |
|

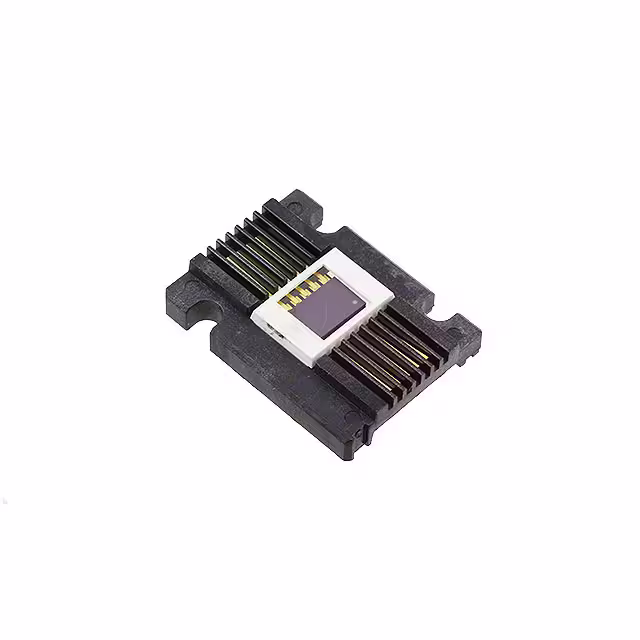

JANTX1N5772TVS DIODE 10CFLATPACK |
4,704 |
|
- |
10-CFlatPack | - | Bulk | Active | Steering (Rail to Rail) | 8 | - | - | - | - | - | - | No | Ethernet | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500/474 | Surface Mount | 10-CFlatpack |
|
SMDA12CDR2GTVS DIODE 12VWM 24VC 8-SOIC |
3,722 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 12V (Max) | 13.3V | 24V | 12A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ESD5V0D7-TPTVS DIODE 5VWM 13.3VC SOD723 |
2,500 |
|
Datasheet |
SOD-723 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 6.2V | 13.3V | 8.8A (8/20µs) | 117W | No | General Purpose | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-723 |
|
DF2B6.8FS(TPL3,T)TVS DIODE 5VWM 8.5VC FSC |
7,332 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 5.8V | 8.5V (Typ) | 1A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | - | - | - | Surface Mount | fSC |
|

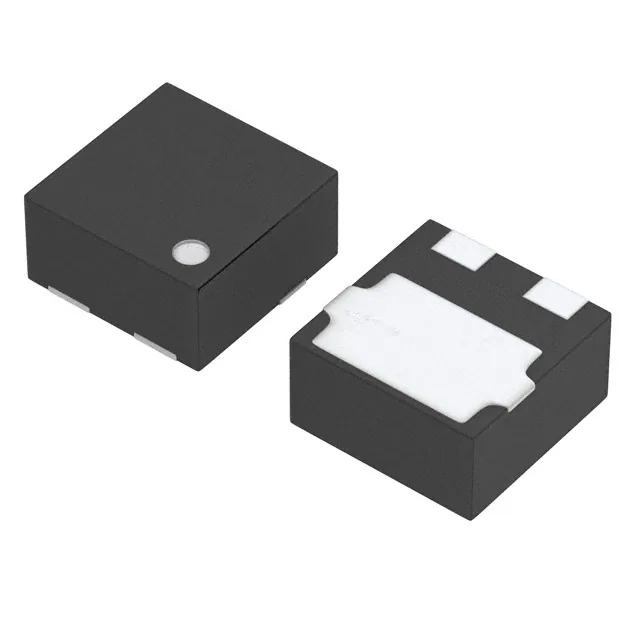

XBP06V4E2HR-GTVS DIODE 5VWM 3USP |
3,162 |
|
Datasheet |
2-SFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V | 6.4V | - | - | 70W | No | General Purpose | 40pF @ 1MHz | - | - | - | Surface Mount | 3-USP (1.2x1.2) |
|
SMA6F13A-TPTVS DIODE 13VWM 20.4VC DO221AC |
7,813 |
|
Datasheet |
DO-221AC, SMA Flat Leads | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 13V | 14.4V | 20.4V | 29A | 600W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-221AC (SMA-FL) |
|
15KP16A-TPTVS DIODE 15KW 17V UNI-DIR R6 |
3,581 |
|
Datasheet |
R-6, Axial | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | R-6 |
|
PESD9X5.0L,315TVS DIODE 5VWM 18VC DFN1006-2 |
8,464 |
|
- |
SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 6.2V | 18V | 10A (8/20µs) | 150W | No | - | 68pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
PUSBM12VX4-TL,115TVS DIODE 5.5VWM 12VC DFN1616-6 |
5,579 |
|
Datasheet |
6-XFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 12.5V | 12V | 3A (8/20µs) | 35W | Yes | USB OTG | - | -30°C ~ 85°C (TA) | - | - | Surface Mount | DFN1616-6 |
|
|
PUSBM5V5X4-TL,115TVS DIODE 5.5VWM 12VC DFN1616-6 |
8,503 |
|
Datasheet |
6-XFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.4V | 12V | 3A (8/20µs) | 35W | Yes | USB OTG | - | -30°C ~ 85°C (TA) | - | - | Surface Mount | DFN1616-6 |
|
ESD5V3S1B02LSE6327XTSA1TVS DIODE 5.3VWM 26VC TSSLP-2 |
7,778 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.3V (Max) | 6V | 26V | 5A (8/20µs) | - | No | General Purpose | 17pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-1 |
|
|
ESD5V3S1U02LSE6327XTSA1TVS DIODE 5.3VWM 15VC TSSLP-2-1 |
3,382 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5.3V | - | 15V | 2A (8/20µs) | - | - | General Purpose | - | - | - | - | Surface Mount | PG-TSSLP-2-1 |
