Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

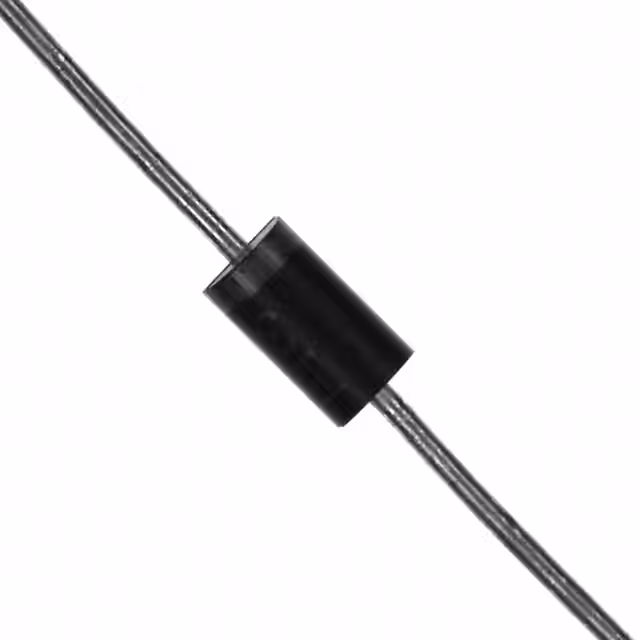

VS-31DQ09TRDIODE SCHOTTKY 90V 3.3A C-16 |
9,392 |
|
Datasheet |
- | DO-201AD, Axial | Tape & Reel (TR) | Obsolete | Schottky | 90 V | 3.3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 90 V | - | - | - | Through Hole | C-16 | -40°C ~ 150°C |
|

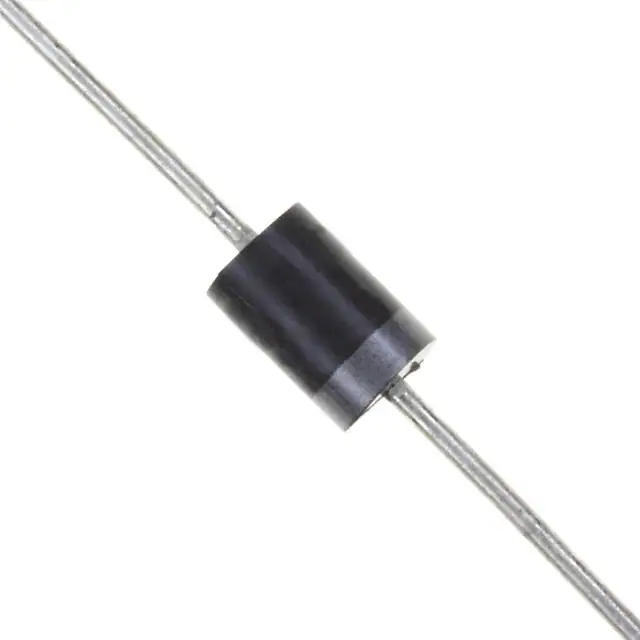

VS-50SQ060DIODE SCHOTTKY 60V 5A DO204AR |
5,474 |
|
Datasheet |
- | DO-204AR, Axial | Bulk | Obsolete | Schottky | 60 V | 5A | 660 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 60 V | - | - | - | Through Hole | DO-204AR | -55°C ~ 175°C |
|
|
VS-50SQ060TRDIODE SCHOTTKY 60V 5A DO204AR |
5,195 |
|
Datasheet |
- | DO-204AR, Axial | Tape & Reel (TR) | Obsolete | Schottky | 60 V | 5A | 660 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 60 V | - | - | - | Through Hole | DO-204AR | -55°C ~ 175°C |
|
|
VS-50SQ080TRDIODE SCHOTTKY 80V 5A DO204AR |
7,553 |
|
Datasheet |
- | DO-204AR, Axial | Tape & Reel (TR) | Obsolete | Schottky | 80 V | 5A | 660 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 80 V | - | - | - | Through Hole | DO-204AR | -55°C ~ 175°C |
|
50WQ03FNTRRDIODE SCHOTTKY 30V 5.5A DPAK |
4,181 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 5.5A | 460 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 30 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
|
50WQ04FNTRLDIODE SCHOTTKY 40V 5.5A DPAK |
4,244 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 5.5A | 510 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 40 V | 405pF @ 5V, 1MHz | - | - | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
|
50WQ04FNTRRDIODE SCHOTTKY 40V 5.5A DPAK |
6,681 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 5.5A | 510 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 40 V | 405pF @ 5V, 1MHz | - | - | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
|
50WQ06FNTRLDIODE SCHOTTKY 60V 5.5A DPAK |
2,671 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Schottky | 60 V | 5.5A | 570 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 360pF @ 5V, 1MHz | - | - | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
|
50WQ06FNTRDIODE SCHOTTKY 60V 5.5A DPAK |
7,311 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Schottky | 60 V | 5.5A | 570 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 360pF @ 5V, 1MHz | - | - | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
50WQ10FNTRDIODE SCHOTTKY 100V 5.5A DPAK |
2,546 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Schottky | 100 V | 5.5A | 770 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | 183pF @ 5V, 1MHz | - | - | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
|
50WQ10FNTRRDIODE SCHOTTKY 100V 5.5A DPAK |
4,796 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Schottky | 100 V | 5.5A | 770 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | 183pF @ 5V, 1MHz | - | - | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
60HFUR-200DIODE GEN PURP 200V 60A DO203AB |
6,344 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 200 V | 60A | 1.3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 50 µA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
60HFUR-400DIODE GEN PURP 400V 60A DO203AB |
7,331 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 400 V | 60A | 1.3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 50 µA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
60HFUR-500DIODE GEN PURP 500V 60A DO203AB |
7,626 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 500 V | 60A | 1.3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 50 µA @ 500 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
60HFUR-600DIODE GEN PURP 600V 60A DO203AB |
6,136 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 600 V | 60A | 1.3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 50 µA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
VS-80SQ030DIODE SCHOTTKY 30V 8A DO204AR |
5,803 |
|
Datasheet |
- | DO-204AR, Axial | Bulk | Obsolete | Schottky | 30 V | 8A | 530 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 30 V | 900pF @ 5V, 1MHz | - | - | Through Hole | DO-204AR | -55°C ~ 175°C |
|
|
VS-80SQ040TRDIODE SCHOTTKY 40V 8A DO204AR |
8,606 |
|
Datasheet |
- | DO-204AR, Axial | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 8A | 530 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 40 V | - | - | - | Through Hole | DO-204AR | -55°C ~ 175°C |
|
VS-8AF2NPPDIODE GEN PURP 200V 50A B-47 |
7,623 |
|
Datasheet |
- | B-47 | Bulk | Obsolete | Standard | 200 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 200 V | - | - | - | Chassis, Stud Mount | B-47 | -65°C ~ 195°C |
|
|
VS-8AF2RPPDIODE GEN PURP REV 200V 50A B-47 |
2,299 |
|
Datasheet |
- | B-47 | Bulk | Obsolete | Standard, Reverse Polarity | 200 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 200 V | - | - | - | Chassis, Stud Mount | B-47 | -65°C ~ 195°C |
|
|
8AF4NPPDIODE GEN PURP 400V 50A B-47 |
2,624 |
|
Datasheet |
- | B-47 | Bulk | Obsolete | Standard | 400 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 400 V | - | - | - | Chassis, Stud Mount | B-47 | -65°C ~ 195°C |
