PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLD60P010XFPTC RESET FUSE 60V 100MA RADIAL |
5,344 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
RLD60P017XFPTC RESET FUSE 60V 170MA RADIAL |
6,998 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
RLD60P020XFPTC RESET FUSE 60V 200MA RADIAL |
8,961 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
|
RLD60P025XFPTC RESET FUSE 60V 250MA RADIAL |
5,809 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
RLD60P030XFPTC RESET FUSE 60V 300MA RADIAL |
8,165 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
|
RLD60P040XFPTC RESET FUSE 60V 400MA RADIAL |
5,396 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
|
RLD60P050XFPTC RESET FUSE 60V 500MA RADIAL |
8,485 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
|
RLD60P065XFPTC RESET FUSE 60V 650MA RADIAL |
8,239 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
|
RLD60P075XFPTC RESET FUSE 60V 750MA RADIAL |
5,740 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
RLD60P090XFPTC RESET FUSE 60V 900MA RADIAL |
9,984 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.118" T (11.70mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
|
RLD60P110XFPTC RESET FUSE 60V 1.1A RADIAL |
6,701 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
|
RLD60P135XFPTC RESET FUSE 60V 1.35A RADIAL |
9,554 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.571" Dia x 0.122" T (14.50mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|
|
RLD60P160XFPTC RESET FUSE 60V 1.6A RADIAL |
9,667 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.122" T (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
RLD60P185XFPTC RESET FUSE 60V 1.85A RADIAL |
9,674 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" Dia x 0.122" T (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
|
RLD60P250XFPTC RESET FUSE 60V 2.5A RADIAL |
9,369 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" Dia x 0.122" T (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
|
RLD60P300XFPTC RESET FUSE 60V 3A RADIAL |
7,825 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" Dia x 0.122" T (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
|
RLD60P375XFPTC RESET FUSE 60V 3.75A RADIAL |
9,017 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.118" Dia x 0.122" T (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|

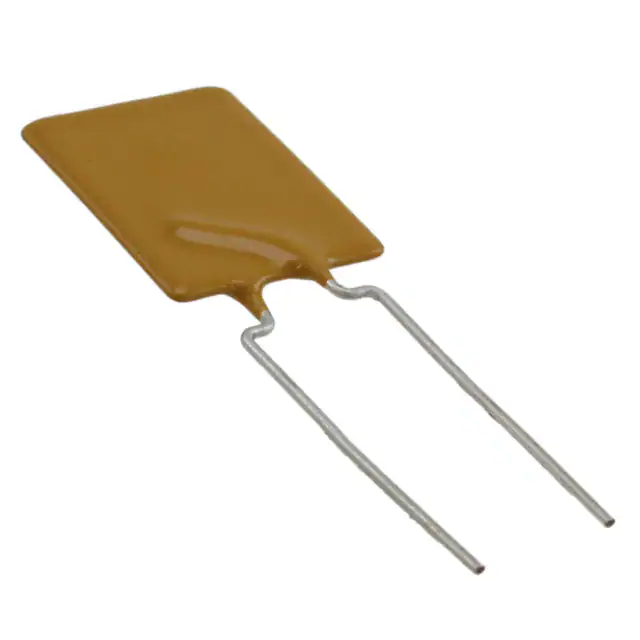

AHR1000PTC RESET FUSE 16V 10A RADIAL |
3,609 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHR | Bulk | Obsolete | Polymeric | 16V | 10 A | 20.5 A | 100 A | 10.5 s | 5.1 mOhms | 10.5 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|
RUSB155PTC RESET FUSE 6V 1.55A RADIAL |
4,996 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 6V | 1.55 A | 2.65 A | 40 A | 2.2 s | 40 mOhms | 100 mOhms | - | - | - | - | - | Through Hole | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) | 0.461" (11.70mm) | - | 0.201" (5.10mm) |
|
RTE120PTC RESET FUSE 33V 1.2A RADIAL |
4,154 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 33V | 1.2 A | 2.3 A | 40 A | 3.5 s | 74 mOhms | 180 mOhms | - | - | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
