PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-MSHT175KX-21812 HIGH TEMP SMD POLYMER PTC 1 |
9,597 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse® MF-MSHT | Tape & Reel (TR) | Active | Polymeric | 9V | 1.75 A | 7 A | 40 A | 5 s | 18 mOhms | 170 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.063" (1.60mm) | - |
|
|
MF-MSHT150KX-21812 HIGH TEMP SMD POLYMER PTC 1 |
5,823 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse® MF-MSHT | Tape & Reel (TR) | Active | Polymeric | 9V | 1.5 A | 6 A | 40 A | 5 s | 22 mOhms | 200 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.063" (1.60mm) | - |
|
|
MF-MSHT125KX-21812 HIGH TEMP SMD POLYMER PTC 1 |
6,321 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse® MF-MSHT | Tape & Reel (TR) | Active | Polymeric | 9V | 1.25 A | 6.25 A | 40 A | 5 s | 30 mOhms | 300 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.063" (1.60mm) | - |
|
YPCL0010TPTC RESET FUSE 265V 200MA RADIAL |
4,136 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 200 mA | 400 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.591" (15.00mm) | - | 0.200" (5.08mm) |
|
PTGL16AS101H0B02BZPTC RESET FUSE |
7,720 |
|
- |
- | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

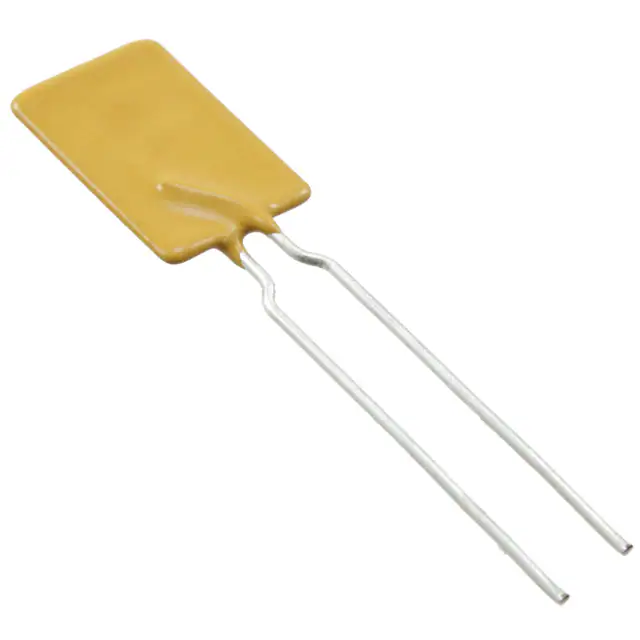

AHRF650-2PTC RESET FUSE 16V 6.5A RADIAL |
8,190 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Tape & Reel (TR) | Active | Polymeric | 16V | 6.5 A | 13.7 A | 100 A | 7 s | 9 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.200" (5.08mm) |
|
|
YPBJ3.70TPTC RESET FUSE 80V 170MA RADIAL |
7,792 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 170 mA | 350 mA | 5.5 A | - | - | - | 3.7 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.138" T (13.50mm x 3.50mm) | 0.591" (15.00mm) | - | 0.200" (5.08mm) |
|
YQD120N0050PTC RESET FUSE 265V RADIAL DISC |
4,389 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | - | - | - | - | - | - | - | 0°C ~ 60°C | - | - | - | Through Hole | - | - | - | - |
|
|
YQD120N0055PTC RESET FUSE 265V 90MA RADIAL |
4,572 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 90 mA | 180 mA | 800 mA | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
TS250-130F-RA-2PTC RESET FUSE 60V 130MA 2SMD |
7,694 |
|
Datasheet |
2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 2.5 s | 6.5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|
PTCCL07H411DTEPTC RESET FUSE 30V 410MA RADIAL |
6,755 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 410 mA | 615 mA | 4.5 A | - | - | - | 3 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.276" Dia x 0.157" T (7.00mm x 4.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL07H111HTEPTC RESET FUSE 265V 110MA RADIAL |
8,694 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 110 mA | 165 mA | 650 mA | - | - | - | 48 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.276" Dia x 0.217" T (7.00mm x 5.50mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL09H171HTEPTC RESET FUSE 265V 170MA RADIAL |
5,202 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 170 mA | 255 mA | 900 mA | - | - | - | 22 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.217" T (8.50mm x 5.50mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
.jpg)
|

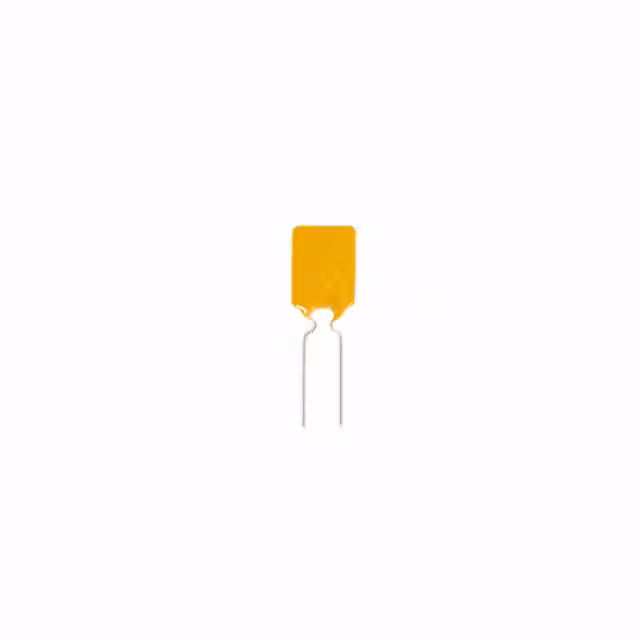

RS30-400PTC RESET FUSE 30V 4A RADIAL |
4,004 |
|
Datasheet |
Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 4 A | 8 A | 100 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|

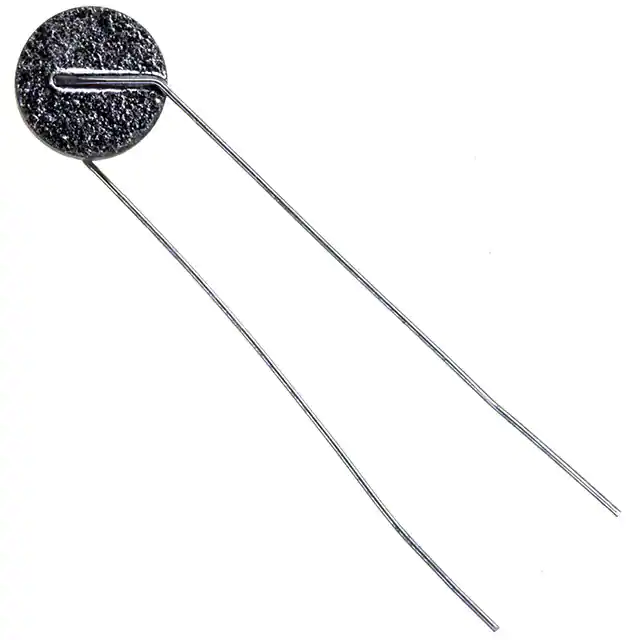

RL4510-50-120-120-PTOPTC RESET FUSE 120V RADIAL DISC |
5,931 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 120V | - | - | - | 70 s | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.500" Dia x 0.200" T (12.70mm x 5.08mm) | 0.500" (12.70mm) | - | 0.330" (8.38mm) |
|
|
YS5656PTC RESET FUSE RADIAL DISC |
4,051 |
|
- |
Radial, Disc | YS | Bulk | Active | Ceramic | - | - | - | - | - | - | - | 100 Ohms | - | - | - | - | Through Hole | - | - | - | - |
|
B59850C0080A051PTC RESET FUSE 265V 110MA RADIAL |
8,460 |
|
- |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 110 mA | 230 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
|
YPBJ2.30TPTC RESET FUSE 80V 245MA RADIAL |
4,149 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 245 mA | 500 mA | 8 A | - | - | - | 2.3 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
YQS5846PTFPTC RESET FUSE 25V 370MA RADIAL |
9,364 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Active | Ceramic | 25V | 370 mA | 740 mA | - | - | - | - | 3 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.551" Dia x 0.181" T (14.00mm x 4.60mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
|

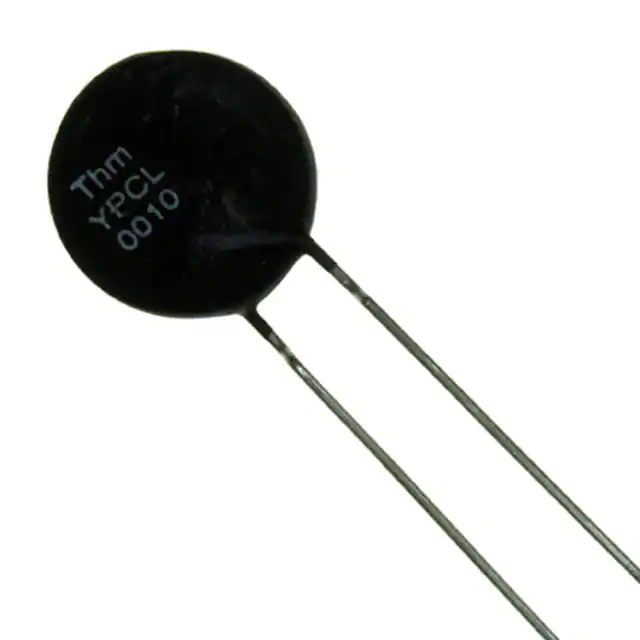

YPCL0010NPTC RESET FUSE 265V 200MA RADIAL |
8,374 |
|
Datasheet |
Radial, Disc | YP | Bulk | Obsolete | Ceramic | 265V | 200 mA | 400 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.591" (15.00mm) | - | 0.200" (5.08mm) |
