PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

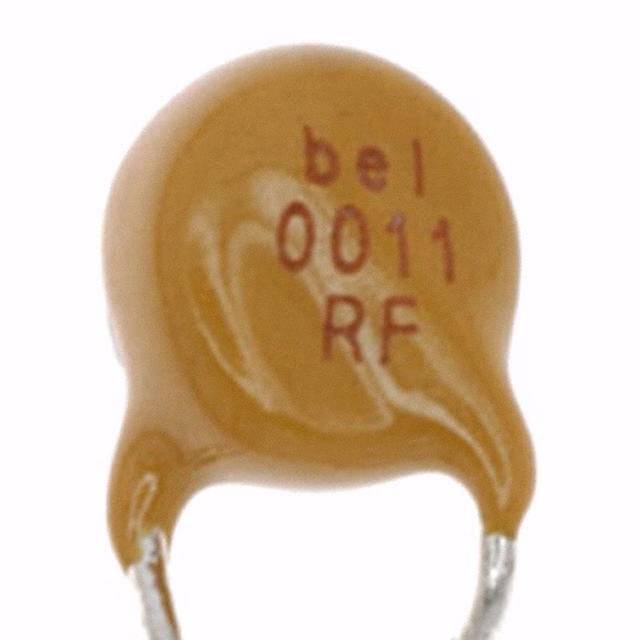

0ZRF0011FF1EPTC RESET FUSE 60V 110MA RADIAL |
8,429 |
|
Datasheet |
Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 110 mA | 400 mA | 3 A | 2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.268" L x 0.181" W (6.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.197" (5.00mm) |
|
0ZRF0012FF1EPTC RESET FUSE 60V 120MA RADIAL |
5,098 |
|
Datasheet |
Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 120 mA | 480 mA | 3 A | 2 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|

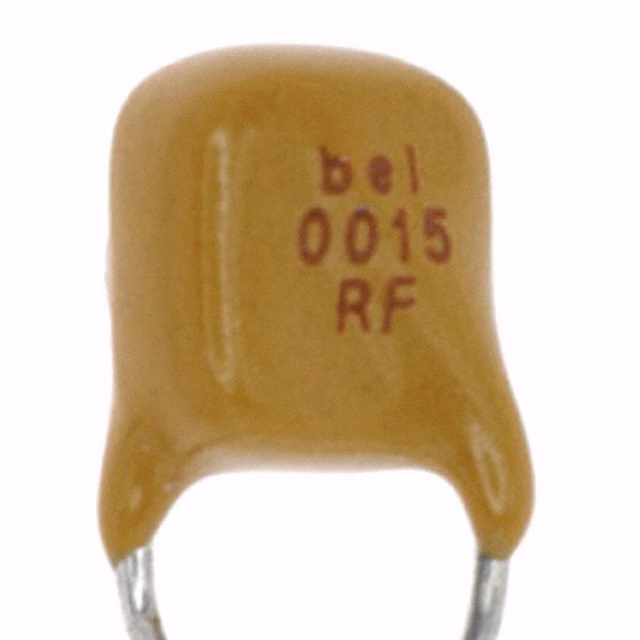

0ZRF0015FF1EPTC RESET FUSE 60V 150MA RADIAL |
6,203 |
|
Datasheet |
Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 150 mA | 580 mA | 3 A | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
PTR016V0185-TRPTC RESET FUSE 16V 1.85A RADIAL |
5,721 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.122" W (10.20mm x 3.10mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
PTR030V0110-TRPTC RESET FUSE 30V 1.1A RADIAL |
7,998 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.197" (5.00mm) |
|

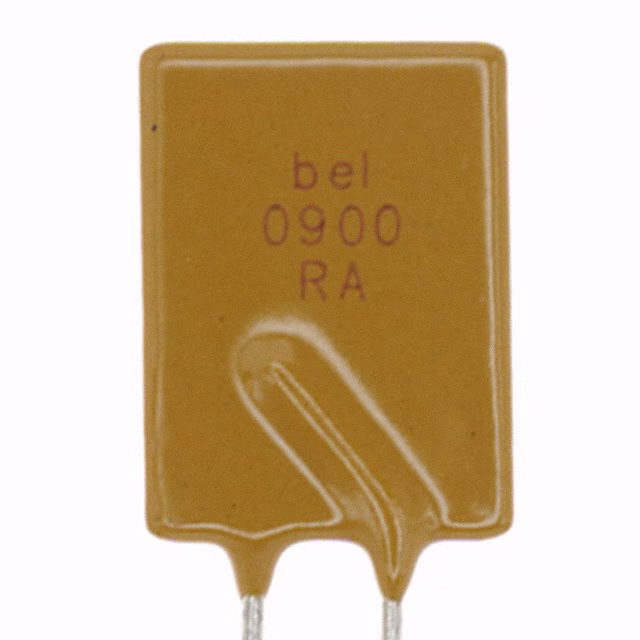

0ZRA0900FF1APTC RESET FUSE 16V 9A RADIAL |
4,827 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 12 s | 4 mOhms | 15 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
PTGL07BD330N3B51A0PTC RESET FUSE 32V 60MA RADIAL |
6,141 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 32V | 60 mA | 135 mA | 1.5 A | - | - | - | 33 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
SRP420PTC RESET FUSE 30V 4.2A STRAP |
6,225 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Obsolete | Polymeric | 30V | 4.2 A | 7.6 A | 100 A | 6 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.240" L x 0.522" W (31.50mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
PFMF.160.2PTC RESET FUSE 8V 1.6A 1812 |
2,701 |
|
Datasheet |
1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 8V | 1.6 A | 2.8 A | 100 A | 2 s | 35 mOhms | 99 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
15LR190UPTC RESET FUSE 15V 1.9A STRAP |
8,831 |
|
Datasheet |
Strap | POLY-FUSE®, LR | Bulk | Obsolete | Polymeric | 15V | 1.9 A | 3.9 A | 100 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.827" L x 0.205" W (21.00mm x 5.20mm) | - | 0.039" (1.00mm) | - |
|
MF-RX040/72-APPTC RESET FUSE 72V 400MA RADIAL |
2,054 |
|
Datasheet |
Radial, Disc | MF-RX/72 | Tape & Box (TB) | Active | - | 72V | 400 mA | 800 mA | 40 A | 3.9 s | - | - | - | - | - | - | - | Through Hole | 0.291" Dia x 0.122" W (7.40mm x 3.10mm) | - | - | 0.201" (5.10mm) |
|
|
MF-RX065/72-APPTC RESET FUSE 72V 650MA RADIAL |
5,777 |
|
Datasheet |
Radial, Disc | MF-RX/72 | Tape & Box (TB) | Active | - | 72V | 650 mA | 1.3 A | 40 A | 5.3 s | - | - | - | - | - | - | - | Through Hole | 0.382" Dia x 0.122" W (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
MF-RX075/72-APPTC RESET FUSE 72V 750MA RADIAL |
4,725 |
|
Datasheet |
Radial, Disc | MF-RX/72 | Tape & Box (TB) | Active | - | 72V | 750 mA | 1.5 A | 40 A | 6.3 s | - | - | - | - | - | - | - | Through Hole | 0.409" Dia x 0.122" W (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RX090/72-APPTC RESET FUSE 72V 900MA RADIAL |
4,292 |
|
Datasheet |
Radial, Disc | MF-RX/72 | Tape & Box (TB) | Active | - | 72V | 900 mA | 1.8 A | 40 A | 7.2 s | - | - | - | - | - | - | - | Through Hole | 0.461" Dia x 0.122" W (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
MF-RX110/72-APPTC RESET FUSE 72V 1.1A RADIAL |
5,284 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.122" W (10.84mm x 3.10mm) | 0.662" (16.84mm) | - | 0.201" (5.10mm) |
|
MF-RX135/72-APPTC RESET FUSE 72V 1.35A RADIAL |
3,548 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.483" L x 0.122" W (12.26mm x 3.10mm) | 0.718" (18.26mm) | - | 0.201" (5.10mm) |
|
MF-RX075/72-0-17PTC RESETTABLE 0.75A 72V RADIAL |
7,887 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 750 mA | 1.5 A | 40 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RX030/72-2-17PTC RESETTABLE 0.3A 72V RADIAL L |
2,793 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Reel (TR) | Active | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.528" (13.40mm) | - | 0.201" (5.10mm) |
|
|
MF-RX025/72-AP-17PTC RESETTABLE 0.25A 72V RADIAL |
4,302 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R065-2-17PTC RESETTABLE 0.6A 60V RADIAL L |
3,133 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 270 mOhms | 720 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
