PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRC0040FF2EPTC RESET FUSE 90V 400MA RADIAL |
4,259 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" L x 0.122" W (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
0ZRB0090FF2EPTC RESET FUSE 30V 900MA RADIAL |
6,969 |
|
Datasheet |
Radial, Disc | 0ZRB | Tape & Reel (TR) | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
|
0ZRC0055FF2EPTC RESET FUSE 90V 550MA RADIAL |
4,071 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 550 mA | 1.2 A | 40 A | 10 s | 400 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" L x 0.122" W (9.70mm x 3.10mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
|
|
0ZRC0030FF2EPTC RESET FUSE 90V 300MA RADIAL |
5,448 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
|
0ZRC0035FF2EPTC RESET FUSE 90V 350MA RADIAL |
5,029 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 350 mA | 750 mA | 40 A | 10 s | 700 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
TRF250-090UTPTC RESET FUSE 60V 90MA RADIAL |
6,800 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Obsolete | Polymeric | 60V (250V Int) | 90 mA | 180 mA | 3 A | - | 8 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - |
|

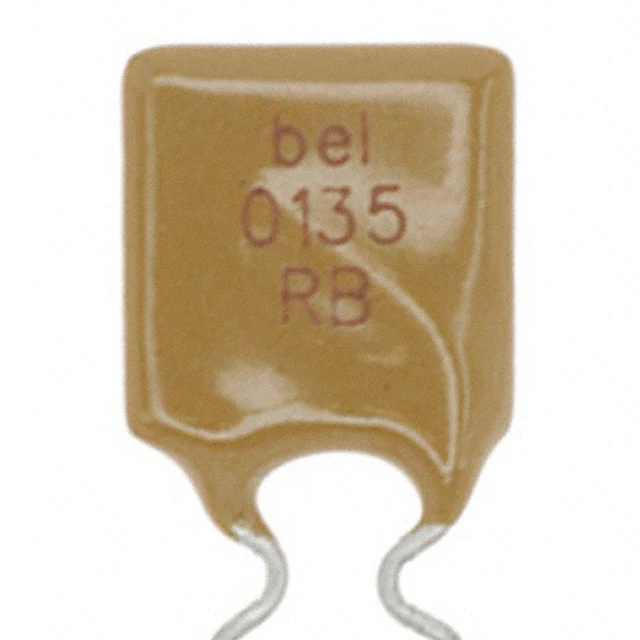

0ZRB0135FF1EPTC RESET FUSE 30V 1.35A RADIAL |
8,916 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
|
0ZRB0110FF2EPTC RESET FUSE 30V 1.1A RADIAL |
6,178 |
|
Datasheet |
Radial, Disc | 0ZRB | Tape & Reel (TR) | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
0ZRB0110FF1CPTC RESET FUSE 30V 1.1A RADIAL |
2,142 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
0ZRB0160FF1EPTC RESET FUSE 30V 1.6A RADIAL |
6,177 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
SMD2920B260TFPTC RESET FUSE 6V 2.6A 2920 |
6,460 |
|
Datasheet |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 40 A | 10 s | 14 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.047" (1.20mm) | - |
|
|
SMD1812P075TSAPTC RESET FUSE 13.2V 750MA 1812 |
3,768 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.025" (0.63mm) | - |
|
|
SMD1812P110TSAPTC RESET FUSE 6V 1.1A 1812 |
5,461 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
|
BK130-300-SZPTC RESET FUSE 130V 300MA RAD |
6,002 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 300 mA | 600 mA | 20 A | 5 s | 1.3 Ohms | 2.6 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.689" (17.50mm) | - | 0.201" (5.10mm) |
|
|
BK130-160-DZPTC RESET FUSE 130V 160MA RAD |
3,629 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 160 mA | 320 mA | 20 A | 7 s | 3.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.335" Dia x 0.150" T (8.50mm x 3.80mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
|
|
BK130-100-DZPTC RESET FUSE 130V 100MA RAD |
6,140 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 100 mA | 200 mA | 20 A | 5 s | 9 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia (8.30mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
|
BK130-250-SZPTC RESET FUSE 130V 250MA RAD |
9,812 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 250 mA | 500 mA | 20 A | 5 s | 1.9 Ohms | 3.8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.201" (5.10mm) |
|
|
BK130-120-DZPTC RESET FUSE 130V 120MA RAD |
4,639 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 120 mA | 240 mA | 20 A | 6 s | 6 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia (8.30mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
|
BK130-200-SZPTC RESET FUSE 130V 200MA RAD |
7,762 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 200 mA | 400 mA | 20 A | 5 s | 2.5 Ohms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.201" (5.10mm) |
|
|
SMD2920B075TFPTC RESET FUSE 30V 750MA 2920 |
6,893 |
|
Datasheet |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 30V | 750 mA | 1.5 A | 40 A | 300 ms | 100 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.041" (1.05mm) | - |
