PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

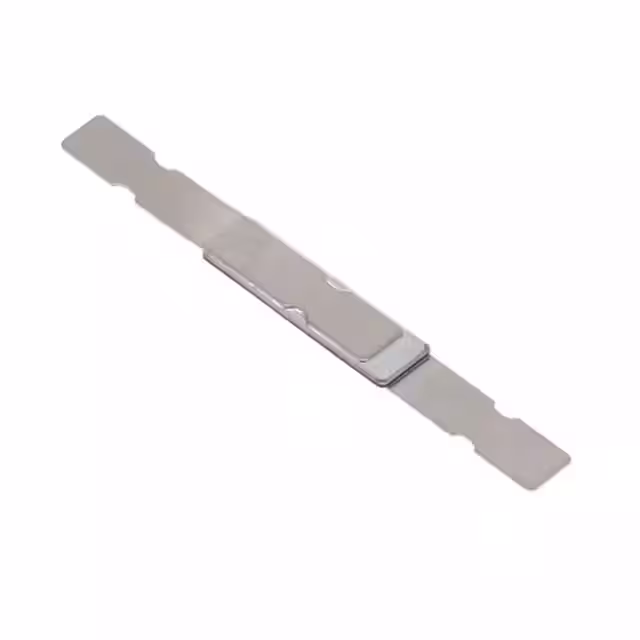

VLP175UAFPTC RESET FUSE 16V 1.75A STRAP |
7,260 |
|
Datasheet |
Strap | PolySwitch®, VLP | Bulk | Active | Polymeric | 16V | 1.75 A | 3.9 A | 60 A | 5 s | 23 mOhms | 82 mOhms | - | - | - | - | - | User Defined | - | 0.028" (0.70mm) | - | - |
|
RUSBF135PTC RESET FUSE 16V 1.35A RADIAL |
3,822 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 16V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 112 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
PFMF.125.2PTC RESET FUSE 6V 1.25A 1812 |
2,452 |
|
Datasheet |
1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.25 A | 2.5 A | 100 A | 400 ms | 35 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
|
RUSBF160PTC RESET FUSE 16V 1.6A RADIAL |
2,472 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 16V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|
RGEF400KPTC RESET FUSE 16V 4A RADIAL |
3,329 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.331" L x 0.098" W (8.40mm x 2.50mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
|
0ZRC0025FF2EPTC RESET FUSE 90V 250MA RADIAL |
4,966 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
,-Concave.jpg)
|
0ZCF0260FF2CPTC RESET FUSE 6V 2.6A 2920 |
3,182 |
|
Datasheet |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5.2 A | 100 A | 20 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
RUEF160SPTC RESET FUSE 30V 1.6A RADIAL |
4,638 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Active | Polymeric | 30V | 1.6 A | 3.2 A | 100 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|

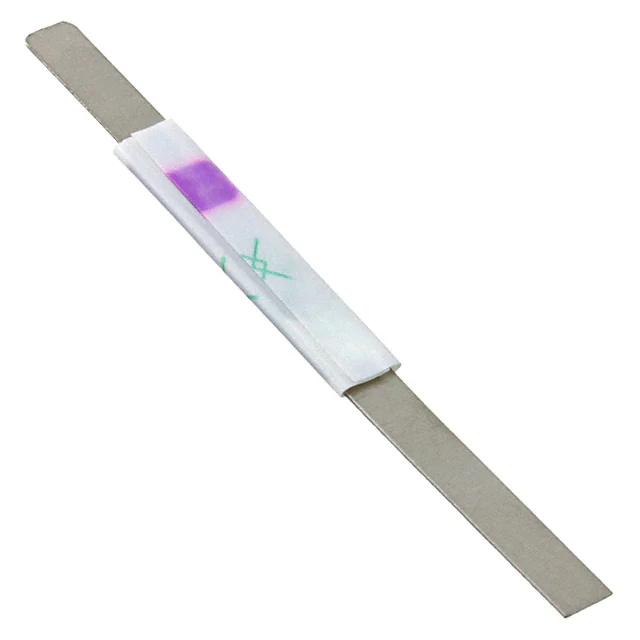

VLR175LFPTC RESET FUSE 12V 1.75A STRAP |
3,920 |
|
Datasheet |
Strap | PolySwitch®, VLR | Bulk | Active | Polymeric | 12V | 1.75 A | 4.2 A | 100 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 70°C | - | - | - | User Defined | 1.201" L x 0.122" W (30.50mm x 3.10mm) | - | 0.032" (0.80mm) | - |
|

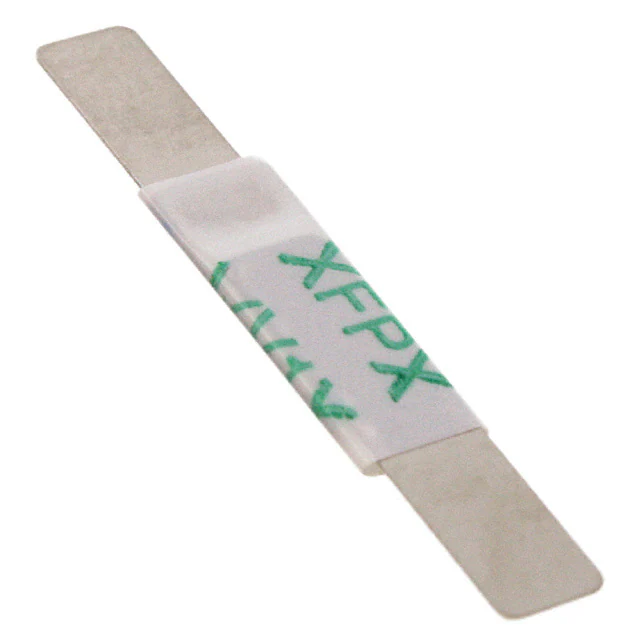

VTP175FPTC RESET FUSE 16V 1.75A STRAP |
8,057 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.75 A | 3.6 A | 100 A | 5 s | 29 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.874" L x 0.146" W (22.20mm x 3.70mm) | - | 0.032" (0.80mm) | - |
|
PFNF.110.2PTC RESET FUSE 6V 1.1A 1206 |
2,526 |
|
Datasheet |
1206 (3216 Metric), Concave | PFNF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 300 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
0ZRR0050FF2EPTC RESET FUSE 60V 500MA RADIAL |
2,818 |
|
Datasheet |
Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
0ZRR0040FF2EPTC RESET FUSE 60V 400MA RADIAL |
2,457 |
|
Datasheet |
Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
RGEF700-1PTC RESET FUSE 16V 7A RADIAL |
1,978 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.098" W (10.70mm x 2.50mm) | 0.776" (19.70mm) | - | 0.199" (5.05mm) |
|
AGRF500PTC RESET FUSE 16V 5A RADIAL |
2,710 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 5 A | 9.4 A | 100 A | 2.5 s | 14 mOhms | 34 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.614" (15.60mm) | - | 0.199" (5.05mm) |
|
|
0ZRC0075FF2EPTC RESET FUSE 90V 750MA RADIAL |
2,783 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.122" W (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
PFRA.090.009PTC RESET FUSE 30V 900MA RADIAL |
4,180 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
AHRF450PTC RESET FUSE 16V 4.5A RADIAL |
4,462 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 4.5 A | 8.7 A | 100 A | 4 s | 17 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
|
0ZRA0300FF2DPTC RESET FUSE 16V 3A RADIAL |
2,699 |
|
Datasheet |
Radial, Disc | 0ZRA | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 2 s | 34 mOhms | 105 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
0ZRB0185FF2EPTC RESET FUSE 30V 1.85A RADIAL |
4,077 |
|
Datasheet |
Radial, Disc | 0ZRB | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
