Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
186F28PWR XFMR LAMINATED 100VA CHAS MT |
1,763 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 28V | 3.57A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.7 lbs (1.2 kg) |
|
62074PWR XFMR TOROIDAL 35VA CHAS MT |
3,018 |
|
Datasheet |
Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.944A, Series 972mA | Dual | Dual | No | 35VA | Chassis Mount | Wire Leads | - | - | 4000Vrms | 1 lb (453.59 g) |
|
266LA12PWR XFMR LAMINATED 24VA CHAS MT |
2,056 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 6V, Series 12V | Parallel 4A, Series 2A | Dual | Dual | No | 24VA | Chassis Mount | Wire Leads | 79.50mm L x 50.04mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
|
266M2PWR XFMR LAMINATED 7.5VA CHAS MT |
3,991 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 1.25V, Series 2.5V | Parallel 6A, Series 3A | Dual | Dual | No | 7.5VA | Chassis Mount | Wire Leads | 71.63mm L x 42.93mm W | 42.93mm | 2000Vrms | 0.6 lb (272.16 g) |
|
|
266L12BPWR XFMR LAMINATED 25.2VA CHAS |
4,787 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 25.2VA | Chassis Mount | Wire Leads | 79.50mm L x 50.04mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
167L28PWR XFMR LAMINATED 56VA CHAS MT |
2,964 |
|
Datasheet |
167 | Bulk | Active | Laminated Core | 115V | 28V | 2A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|
229D24PWR XFMR SEMI-TORO 48VA TH |
3,461 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.3 lbs (589.7 g) |
|
|
229D20PWR XFMR SEMI-TORO 48VA TH |
4,209 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.6 lbs (725.7 g) |
|

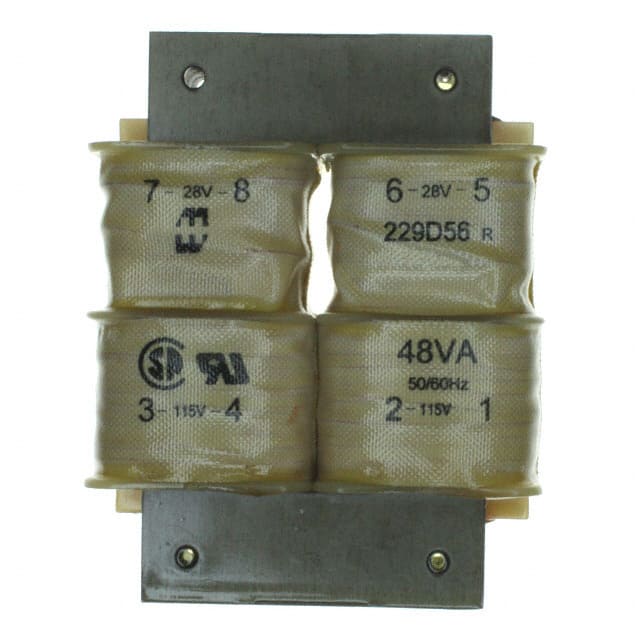

229D56PWR XFMR SEMI-TORO 48VA TH |
3,410 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.7A, Series 850mA | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.4 lbs (635 g) |
|
|
266GB6PWR XFMR LAMINATED 3.78VA CHAS |
3,681 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 3.78VA | Chassis Mount | Wire Leads | 60.45mm L x 37.59mm W | 36.32mm | 2000Vrms | 0.55 lb (249.48 g) |
|
|
187F24PWR XFMR LAMINATED 96VA CHAS MT |
1,516 |
|
Datasheet |
187 | Box | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 96VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.7 lbs (1.2 kg) |
|
L01-6380PWR XFMR TOROIDAL 50VA TH |
3,277 |
|
Datasheet |
L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 7.142A, Series 3.571A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms | 1.8 lbs (816.5 g) |
|
PT120CFPWR XFMR LAMINATED CHAS MT |
1,670 |
|
Datasheet |
PT | Box | Active | Laminated Core | 120V | - | - | Single | Single | No | - | Chassis Mount | Wire Leads | 52.40mm L x 27.94mm W | 31.75mm | 4000Vrms | - |
|
166N12PWR XFMR LAMINATED 50.4VA CHAS |
4,345 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 12.6V | 4A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 93.73mm L x 50.80mm W | 58.67mm | 2000Vrms | 2 lbs (907.2 g) |
|
|
166N8PWR XFMR LAMINATED 34VA CHAS MT |
1,121 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 8.5V | 4A | Single | Single | Yes | 34VA | Chassis Mount | Wire Leads | 93.73mm L x 50.80mm W | 58.67mm | 2000Vrms | 1.4 lbs (635 g) |
|
166L18PWR XFMR LAMINATED 36VA CHAS MT |
3,597 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 18V | 2A | Single | Single | Yes | 36VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 0.3 lb (136.08 g) |
|
|
266L24PWR XFMR LAMINATED 48VA CHAS MT |
1,525 |
|
Datasheet |
266 | Bulk | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Chassis Mount | Wire Leads | 90.42mm L x 57.15mm W | 79.25mm | 2000Vrms | 2.3 lbs (1 kg) |
|
|
266F48PWR XFMR LAMINATED 12VA CHAS MT |
1,619 |
|
Datasheet |
266 | Bulk | Active | Laminated Core | 117V, 234V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Dual | Dual | No | 12VA | Chassis Mount | Wire Leads | 73.15mm L x 44.20mm W | 60.20mm | 2000Vrms | 2.2 lbs (997.9 g) |
|
|
166J36PWR XFMR LAMINATED 36VA CHAS MT |
4,308 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 36V | 1A | Single | Single | Yes | 36VA | Chassis Mount | Wire Leads | 93.73mm L x 47.75mm W | 58.67mm | 2000Vrms | 1.5 lbs (680.4 g) |
|
|
166J33PWR XFMR LAMINATED 33VA CHAS MT |
2,893 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 33V | 1A | Single | Single | Yes | 33VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms | 1.4 lbs (635 g) |
