| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DDB6U75N16W1RB11BOMA1IGBT MOD 1200V 69A 335W |
8,970 |
|
Datasheet |
EasyBRIDGE | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 69 A | 335 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
APTGT30SK170T1GIGBT MODULE 1700V 45A 210W SP1 |
3,299 |
|
Datasheet |
- | SP1 | Bulk | Obsolete | Trench Field Stop | Single | 1700 V | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
VS-GT75NA60UFMODULES IGBT - SOT-227 IGBT |
3,587 |
|
Datasheet |
FRED Pt® | SOT-227-4, miniBLOC | Bulk | Active | Trench Field Stop | Single Chopper | 600 V | 81 A | 231 W | 2.26V @ 15V, 70A | 100 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SOT-227 |
|

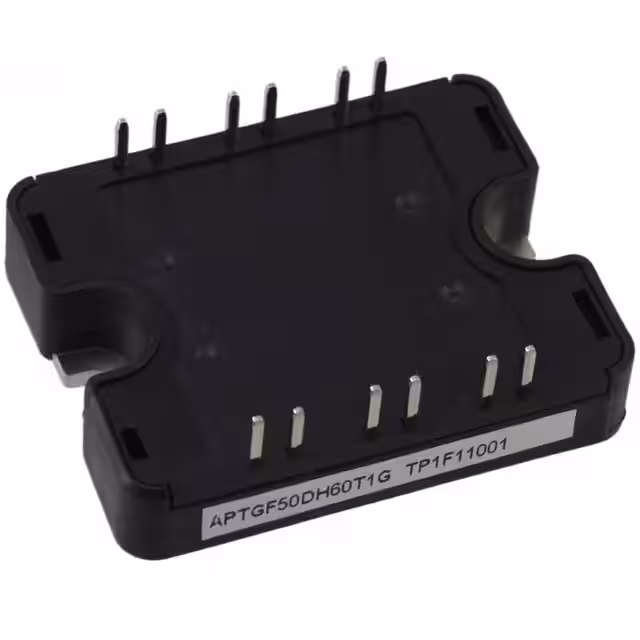

APTGF50DH60T1GIGBT MODULE 600V 65A 250W SP1 |
6,038 |
|
- |
- | SP1 | Bulk | Obsolete | NPT | Asymmetrical Bridge | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
VS-GT100LA65UFMODULES IGBT - SOT-227 IGBT |
9,430 |
|
Datasheet |
FRED Pt® | SOT-227-4, miniBLOC | Bulk | Active | Trench Field Stop | Single Chopper | 650 V | 94 A | 230 W | 2.1V @ 15V, 100A | 80 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SOT-227 |
|
APT40GL120JU3IGBT MOD 1200V 65A 220W SOT227 |
3,034 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | Trench Field Stop | Single | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis, Stud Mount | SOT-227 |
|
|
APT40GL120JU2IGBT MOD 1200V 65A 220W SOT227 |
8,884 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | Trench Field Stop | Single | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis, Stud Mount | SOT-227 |
|
|
APT35GT120JU2IGBT MOD 1200V 55A 260W SOT227 |
9,316 |
|
Datasheet |
- | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 55 A | 260 W | 2.1V @ 15V, 35A | 5 mA | 2.53 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT35GT120JU3IGBT MOD 1200V 55A 260W SOT227 |
9,928 |
|
- |
- | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 55 A | 260 W | 2.1V @ 15V, 35A | 5 mA | 2.53 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
CP20TD1-12AIGBT MODULE 600V 20A 96W |
3,694 |
|
Datasheet |
- | 26-DIP Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 20 A | 96 W | 2.5V @ 15V, 20A | 1 mA | 1.57 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -20°C ~ 150°C (TJ) | Through Hole | - |
|
|
GSA100AA60IGBT MODULE 100A SINGLE 600V LOW |
2,401 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | - | Single | 600 V | 100 A | 500 W | 1.5V @ 15V, 100A | 100 µA | 6.69 nF @ 10 V | DC | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
FP7G75US60IGBT MODULE 600V 75A 310W EPM7 |
2,685 |
|
Datasheet |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 4.515 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|
|
FF75R12YT3BOMA1IGBT MOD 1200V 100A 345W |
8,344 |
|
Datasheet |
- | Module | Bulk | Obsolete | - | 2 Independent | 1200 V | 100 A | 345 W | 2.3V @ 15V, 75A | 1 mA | 5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
IXBN42N170AIGBT MOD 1700V 42A 312W SOT227B |
7,666 |
|
Datasheet |
BIMOSFET™ | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1700 V | 42 A | 312 W | 6V @ 15V, 21A | 50 µA | 3.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
MUBW25-06A6KIGBT MODULE 600V 31A 100W E1 |
3,297 |
|
Datasheet |
- | E1 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 31 A | 100 W | 2.4V @ 15V, 20A | 600 µA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
STG3P2M10N60BIGBT MOD 600V 19A 56W SEMITOP2 |
7,490 |
|
Datasheet |
SEMITOP® | SEMITOP®2 | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 19 A | 56 W | 2.5V @ 15V, 7A | 10 µA | 720 pF @ 25 V | Single Phase Bridge Rectifier | No | -40°C ~ 150°C (TJ) | Chassis Mount | SEMITOP®2 |
|
|
MIXA20WB1200TMHIGBT MOD 1200V 28A MINIPACK2 |
9,556 |
|
Datasheet |
- | MiniPack2 | Box | Obsolete | PT | Three Phase Inverter with Brake | 1200 V | 28 A | 100 W | 2.1V @ 15V, 16A | 100 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | MiniPack2 |
|
|
MITA30WB600TMHIGBT MODULE 1600V 40A MINIPACK2 |
7,314 |
|
Datasheet |
- | MiniPack2 | Tube | Obsolete | NPT | - | 1600 V | 40 A | - | - | - | - | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | MiniPack2 |
|
FZ30R07W1E3B31ABOMA1IGBT MODULE |
5,902 |
|
Datasheet |
EasyPACK™ | Module | Tray | Obsolete | Trench Field Stop | Single Switch | 650 V | 45 A | 150 W | 2V @ 15V, 30A | 50 µA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
VS-GT250SA60SIGBT MOD 600V 380A 893W SOT227 |
5,569 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 600 V | 359 A | 750 W | 1.16V @ 15V, 100A | 100 µA | 24.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SOT-227 |
