Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0298100.VFUSE AUTO 100A 32VDC AUTO LINK |
8,170 |
|
Datasheet |
MEGA® | Box | Discontinued at Digi-Key | Bolt Mount | Automotive | 100 A | - | 32 V | Slow Blow | 2kA | 31100.0 | cULus | -40°C ~ 125°C | Yellow | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0MIN010.VXGLOFUSE AUTO 10A 32VAC 32VDC BLADE |
3,234 |
|
Datasheet |
MINI® | Box | Obsolete | Requires Holder | Automotive | 10 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Red | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0362003.VFUSE GLASS 3A 32VAC 32VDC 8AG |
5,658 |
|
Datasheet |
362 | Box | Active | Requires Holder | Cartridge, Glass | 3 A | 32 V | 32 V | Fast Blow | - | - | - | - | - | 0.250" Dia x 1.000" L (6.35mm x 25.40mm) | |
|
|
0298175.VFUSE AUTO 175A 32VDC AUTO LINK |
8,591 |
|
Datasheet |
MEGA® | Box | Discontinued at Digi-Key | Bolt Mount | Automotive | 175 A | - | 32 V | Slow Blow | 2kA | 168000.0 | cULus | -40°C ~ 125°C | White | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298125.VFUSE AUTO 125A 32VDC AUTO LINK |
7,980 |
|
Datasheet |
MEGA® | Box | Discontinued at Digi-Key | Bolt Mount | Automotive | 125 A | - | 32 V | Slow Blow | 2kA | 57800.0 | cULus | -40°C ~ 125°C | Blue, Green | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298150.VFUSE AUTO 150A 32VDC AUTO LINK |
4,128 |
|
Datasheet |
MEGA® | Box | Discontinued at Digi-Key | Bolt Mount | Automotive | 150 A | - | 32 V | Slow Blow | 2kA | 100000.0 | cULus | -40°C ~ 125°C | Orange | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0MIN07.5VXGLOFUSE AUTO 7.5A 32VAC/VDC BLADE |
2,702 |
|
Datasheet |
MINI® | Box | Obsolete | Requires Holder | Automotive | 7.5 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Brown | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
125.7000.5157FUSE AUTO 15A 125VDC BLADE MINI |
7,125 |
|
- |
FUN MINI® | Box | Discontinued at Digi-Key | Requires Holder | Automotive | 15 A | - | 125 V | Fast Blow | 1kA | - | - | - | Blue | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
|
0MIN030.VXGLOFUSE AUTO 30A 32VAC 32VDC BLADE |
9,518 |
|
Datasheet |
MINI® | Box | Obsolete | Requires Holder | Automotive | 30 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Green | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0298225.VFUSE AUTO 225A 32VDC AUTO LINK |
8,217 |
|
Datasheet |
MEGA® | Box | Discontinued at Digi-Key | Bolt Mount | Automotive | 225 A | - | 32 V | Slow Blow | 2kA | 257000.0 | - | -40°C ~ 125°C | Tan | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298200.VFUSE AUTO 200A 32VDC AUTO LINK |
2,530 |
|
Datasheet |
MEGA® | Box | Discontinued at Digi-Key | Bolt Mount | Automotive | 200 A | - | 32 V | Slow Blow | 2kA | 204000.0 | - | -40°C ~ 125°C | Blue | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298250.VFUSE AUTO 250A 32VDC AUTO LINK |
9,999 |
|
Datasheet |
MEGA® | Box | Discontinued at Digi-Key | Bolt Mount | Automotive | 250 A | - | 32 V | Slow Blow | 2kA | 389000.0 | - | -40°C ~ 125°C | Pink | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298300.VFUSE AUTO 300A 32VDC AUTO LINK |
8,406 |
|
Datasheet |
MEGA® | Box | Discontinued at Digi-Key | Bolt Mount | Automotive | 300 A | - | 32 V | Slow Blow | 2kA | - | - | -40°C ~ 125°C | Gray | 1.149" L x 0.750" W x 0.422" H (29.20mm x 19.05mm x 10.72mm) | |
|
|
0MIN005.VXGLOFUSE AUTO 5A 32VAC 32VDC BLADE |
2,033 |
|
Datasheet |
MINI® | Box | Obsolete | Requires Holder | Automotive | 5 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Tan | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0MIN020.VXGLOFUSE AUTO 20A 32VAC 32VDC BLADE |
6,950 |
|
Datasheet |
MINI® | Box | Obsolete | Requires Holder | Automotive | 20 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0MIN015.VXGLOFUSE AUTO 15A 32VAC 32VDC BLADE |
2,651 |
|
Datasheet |
MINI® | Box | Obsolete | Requires Holder | Automotive | 15 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

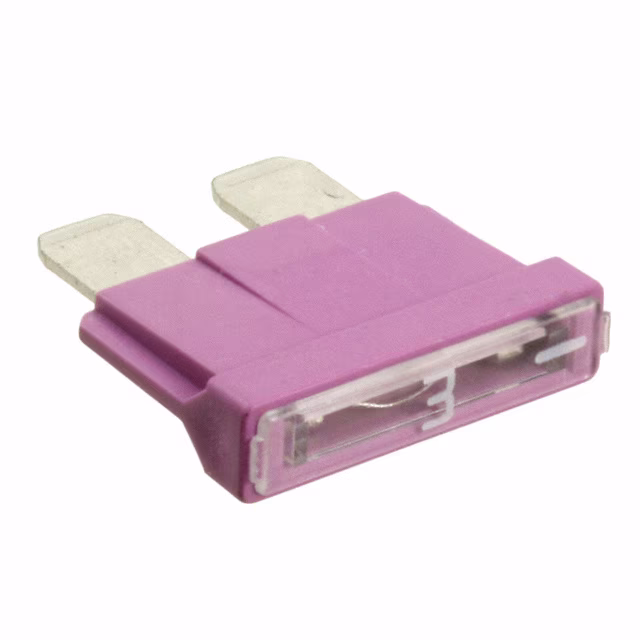

162.6185.4306FUSE AUTO 3A 32VDC BLADE ATO/ATC |
6,405 |
|
- |
FKS ATO® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | 15.0 | cULus | - | Violet | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
|
162.6185.5356FUSE AUTO 35A 32VDC BLADE ATO |
6,073 |
|
- |
FKS ATO® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 35 A | - | 32 V | Fast Blow | 1kA | 1600.0 | cULus | - | Green | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
|
162.6185.4107FUSE AUTO 1A 32VDC BLADE ATO/ATC |
9,148 |
|
- |
FKS ATO® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 1 A | - | 32 V | Fast Blow | 1kA | 2.0 | cULus | - | Black | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|

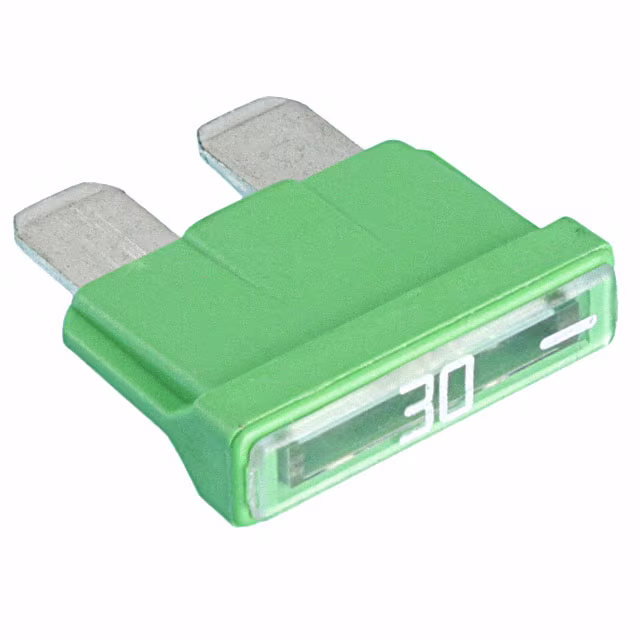

162.6185.5306FUSE AUTO 30A 32VDC BLADE ATO |
9,524 |
|
- |
FKS ATO® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | 1070.0 | cULus | - | Blue, Green | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) |
