Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-3FN220MFIXED IND 22UH 330MA 1.18OHM SMD |
3,862 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±20% | 330 mA | - | Unshielded | 1.18Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN330MFIXED IND 33UH 260MA 1.9 OHM SMD |
3,764 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 260 mA | - | Unshielded | 1.9Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN470MFIXED IND 47UH 230MA 2.45OHM SMD |
2,236 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 230 mA | - | Unshielded | 2.45Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
ELC-3FN680MFIXED IND 68UH 170MA 4.2 OHM SMD |
2,886 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 68 µH | ±20% | 170 mA | - | Unshielded | 4.2Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|

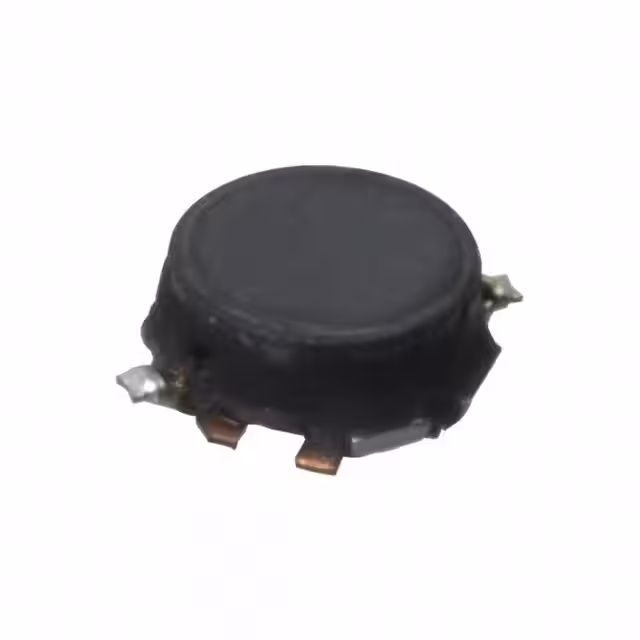

ELC-3GN330MFIXED IND 33UH 280MA 1.4 OHM SMD |
2,723 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 280 mA | - | Unshielded | 1.4Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|

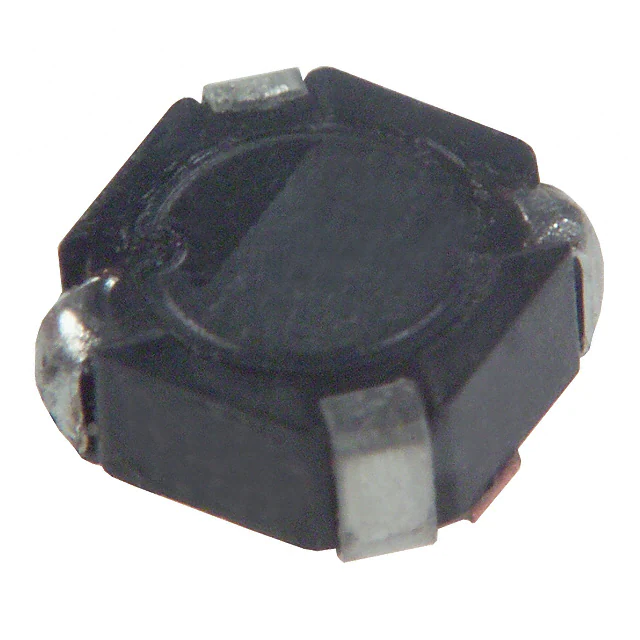

ELL-4GM3R6NFIXED IND 3.6UH 950MA 100MOHM SM |
3,957 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.6 µH | ±30% | 950 mA | - | Shielded | 100mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
|
ELL-4GM4R7NFIXED IND 4.7UH 800MA 120MOHM SM |
2,618 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 800 mA | - | Shielded | 120mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|

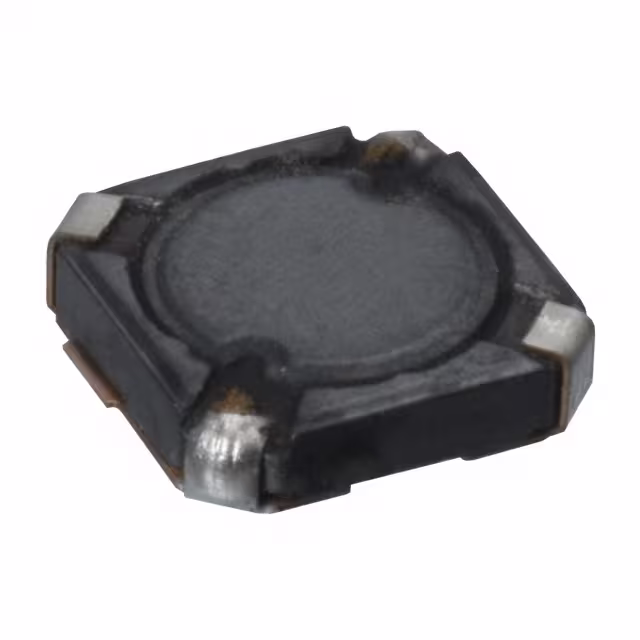

ELL-5GM2R2NFIXED IND 2.2UH 1.6A 53 MOHM SMD |
4,218 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 1.6 A | - | Shielded | 53mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|
|
ELL-5GM4R7NFIXED IND 4.7UH 1.1A 92 MOHM SMD |
4,239 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.1 A | - | Shielded | 92mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|
|
ELL-5GM8R2NFIXED IND 8.2UH 850MA 140MOHM SM |
3,539 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 8.2 µH | ±30% | 850 mA | - | Shielded | 140mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|
|
ELL-5GM220MFIXED IND 22UH 500MA 380MOHM SMD |
3,980 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 500 mA | - | Shielded | 380mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.059" (1.50mm) |
|

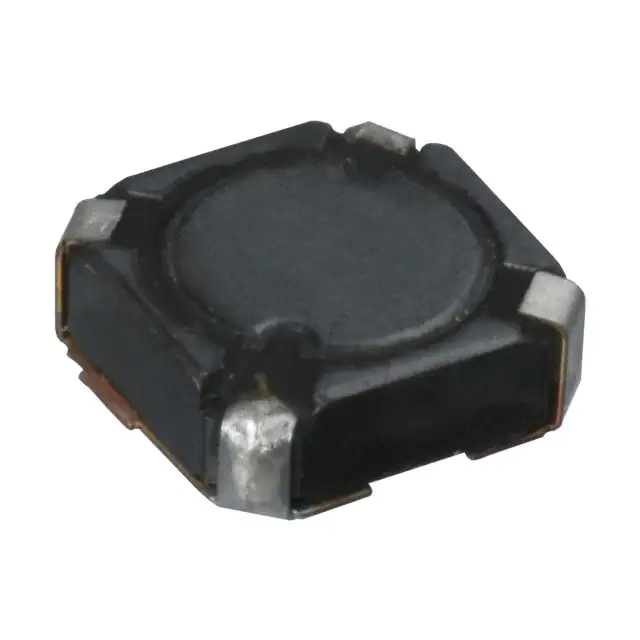

ELL-5PM1R8NFIXED IND 1.8UH 2.3A 27 MOHM SMD |
4,281 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.8 µH | ±30% | 2.3 A | - | Shielded | 27mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
ELL-5PM6R8NFIXED IND 6.8UH 1.2A 74 MOHM SMD |
4,467 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 1.2 A | - | Shielded | 74mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
ELL-5PM120MFIXED IND 12UH 850MA 120MOHM SMD |
4,490 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±20% | 850 mA | - | Shielded | 120mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
ELL-5PM220MFIXED IND 22UH 680MA 210MOHM SMD |
4,053 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 680 mA | - | Shielded | 210mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
ELL-5PM270MFIXED IND 27UH 550MA 230MOHM SMD |
1,793 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±20% | 550 mA | - | Shielded | 230mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
ELL-5PM390MFIXED IND 39UH 480MA 390MOHM SMD |
3,808 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±20% | 480 mA | - | Shielded | 390mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
ELL-5PM470MFIXED IND 47UH 450MA 440MOHM SMD |
4,663 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 450 mA | - | Shielded | 440mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
ELL-5PM560MFIXED IND 56UH 400MA 610MOHM SMD |
2,888 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±20% | 400 mA | - | Shielded | 610mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
ELL-5PM680MFIXED IND 68UH 350MA 700MOHM SMD |
3,455 |
|
Datasheet |
M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 350 mA | - | Shielded | 700mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
