Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL10120NLTFIXED IND 3.6UH 17A 1.8 MOHM SMD |
3,763 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 3.6 µH | ±15% | 17 A | 18A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10120TFIXED IND 3.6UH 17A 1.8 MOHM SMD |
3,401 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 3.6 µH | ±15% | 17 A | 18A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
1840R-07FFIXED IND 560NH 1.67A 100MOHM TH |
4,713 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±1% | 1.67 A | - | Unshielded | 100mOhm Max | 55 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-08FFIXED IND 680NH 1.52A 120MOHM TH |
4,363 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±1% | 1.52 A | - | Unshielded | 120mOhm Max | 55 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-09FFIXED IND 820NH 1.24A 180MOHM TH |
2,679 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±1% | 1.24 A | - | Unshielded | 180mOhm Max | 55 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-10FFIXED IND 1UH 1.05A 250 MOHM TH |
3,306 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±1% | 1.05 A | - | Unshielded | 250mOhm Max | 55 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
MLP5025-102LTHIGH CURRENT T-LEVEL INDUCTOR |
3,491 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±15% | 2.36 A | 2.36A | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-223LTHIGH CURRENT T-LEVEL INDUCTOR |
2,540 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±15% | 500 mA | 500mA | Unshielded | 1.58Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-122LTHIGH CURRENT T-LEVEL INDUCTOR |
1,227 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 12 µH | ±15% | 2.24 A | 2.24A | Unshielded | 79mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-104LTHIGH CURRENT T-LEVEL INDUCTOR |
1,517 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±15% | 240 mA | 240mA | Unshielded | 6.9Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-681LTHIGH CURRENT T-LEVEL INDUCTOR |
2,903 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±15% | 2.61 A | 2.61A | Unshielded | 58mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-222LTHIGH CURRENT T-LEVEL INDUCTOR |
4,966 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±15% | 1.61 A | 1.61A | Unshielded | 152mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-332LTHIGH CURRENT T-LEVEL INDUCTOR |
3,120 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±15% | 1.33 A | 1.33A | Unshielded | 222mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-473LTHIGH CURRENT T-LEVEL INDUCTOR |
3,704 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±15% | 350 mA | 350mA | Unshielded | 3.25Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-472LTHIGH CURRENT T-LEVEL INDUCTOR |
4,162 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±15% | 1.04 A | 1.04A | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-152LTHIGH CURRENT T-LEVEL INDUCTOR |
4,696 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±15% | 2.11 A | 2.11A | Unshielded | 89mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-563LTHIGH CURRENT T-LEVEL INDUCTOR |
1,995 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 µH | ±15% | 330 mA | 330mA | Unshielded | 3.75Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|

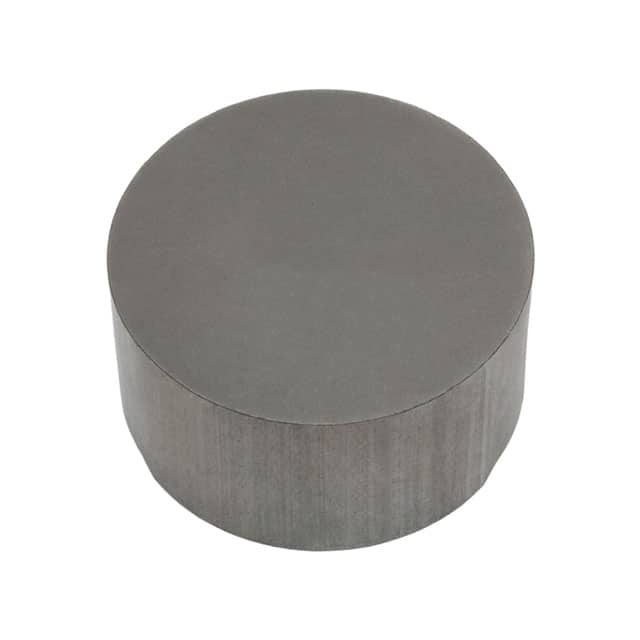

IHTH1500TZEB100M5AIHTH-1500TZ-5A 100 20% EB E2 |
2,886 |
|
Datasheet |
IHTH-1500TZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 10 µH | ±20% | 52.9 A | 85.2A | Shielded | 1.7mOhm Max | - | 5.7MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.780" (19.81mm) |
|
|
IHTH1500TZEB101M5AIHTH-1500TZ-5A 100 20% EB E2 |
3,447 |
|
Datasheet |
IHTH-1500TZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 100 µH | ±20% | 12.2 A | 33.7A | Shielded | 22.6mOhm Max | - | 1.2MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.780" (19.81mm) |
|
|
IHTH1500TZEB220M5AIHTH-1500TZ-5A 22 20% EB E2 |
3,579 |
|
Datasheet |
IHTH-1500TZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 22 µH | ±20% | 34.4 A | 59.78A | Shielded | 3.9mOhm Max | - | 3.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.780" (19.81mm) |
