Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

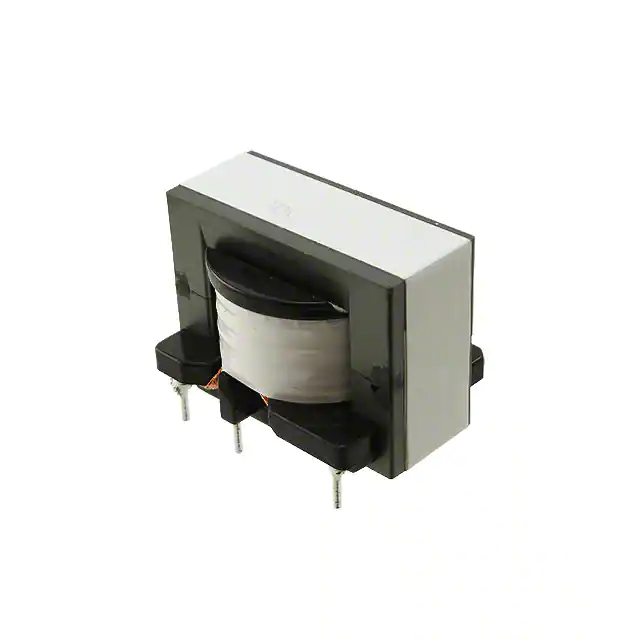

PFC3525ER-301K04E-00CHOKE COMMON MODE |
4,720 |
|
Datasheet |
PFC | Radial, Horizontal, 6 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 300 µH | ±10% | 4.1 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.083" W (37.00mm x 27.50mm) | 1.063" (27.00mm) |
|
|
PFC3525ER-231K06E-00CHOKE COMMON MODE |
2,568 |
|
Datasheet |
PFC | Radial, Horizontal, 6 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 225 µH | ±10% | 5.6 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.083" W (37.00mm x 27.50mm) | 1.063" (27.00mm) |
|
|
PFC3525ER-181K09B-00CHOKE COMMON MODE |
1,680 |
|
Datasheet |
PFC | Radial, Horizontal, 6 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 9.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.083" W (37.00mm x 27.50mm) | 1.063" (27.00mm) |
|
1540M01FIXED IND 10UH 11A 8 MOHM TH |
3,699 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 10 µH | ±15% | 11 A | - | Unshielded | 8mOhm Max | - | - | - | - | - | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
3094-100KSFIXED IND 10NH 1A 40 MOHM SMD |
4,457 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 10 nH | ±10% | 1 A | - | Unshielded | 40mOhm Max | 60 @ 150MHz | 2GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-120KSFIXED IND 12NH 1A 40 MOHM SMD |
2,185 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 12 nH | ±10% | 1 A | - | Unshielded | 40mOhm Max | 60 @ 150MHz | 1.8GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-150KSFIXED IND 15NH 1A 40 MOHM SMD |
4,558 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 15 nH | ±10% | 1 A | - | Unshielded | 40mOhm Max | 60 @ 150MHz | 1.5GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-180KSFIXED IND 18NH 1A 40 MOHM SMD |
3,232 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 18 nH | ±10% | 1 A | - | Unshielded | 40mOhm Max | 60 @ 150MHz | 1.5GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-220KSFIXED IND 22NH 1A 50 MOHM SMD |
1,490 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 22 nH | ±10% | 1 A | - | Unshielded | 50mOhm Max | 60 @ 100MHz | 1.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-270KSFIXED IND 27NH 1A 50 MOHM SMD |
4,751 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 27 nH | ±10% | 1 A | - | Unshielded | 50mOhm Max | 60 @ 100MHz | 1.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-330KSFIXED IND 33NH 1A 50 MOHM SMD |
2,288 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 33 nH | ±10% | 1 A | - | Unshielded | 50mOhm Max | 60 @ 100MHz | 1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-390KSFIXED IND 39NH 900MA 60 MOHM SMD |
4,189 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 39 nH | ±10% | 900 mA | - | Unshielded | 60mOhm Max | 60 @ 100MHz | 1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-470KSFIXED IND 47NH 900MA 60 MOHM SMD |
1,078 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 47 nH | ±10% | 900 mA | - | Unshielded | 60mOhm Max | 65 @ 100MHz | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-560KSFIXED IND 56NH 900MA 60 MOHM SMD |
3,827 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 56 nH | ±10% | 900 mA | - | Unshielded | 60mOhm Max | 65 @ 100MHz | 760MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-680KSFIXED IND 68NH 840MA 70 MOHM SMD |
2,898 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 68 nH | ±10% | 840 mA | - | Unshielded | 70mOhm Max | 65 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-820KSFIXED IND 82NH 840MA 70 MOHM SMD |
2,013 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 82 nH | ±10% | 840 mA | - | Unshielded | 70mOhm Max | 65 @ 100MHz | 650MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-101KSFIXED IND 100NH 840MA 70MOHM SMD |
4,368 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±10% | 840 mA | - | Unshielded | 70mOhm Max | 65 @ 50MHz | 570MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-121KSFIXED IND 120NH 840MA 70MOHM SMD |
2,804 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±10% | 840 mA | - | Unshielded | 70mOhm Max | 65 @ 50MHz | 520MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-151KSFIXED IND 150NH 790MA 80MOHM SMD |
3,915 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±10% | 790 mA | - | Unshielded | 80mOhm Max | 75 @ 50MHz | 400MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
|
|
3094-181KSFIXED IND 180NH 790MA 80MOHM SMD |
2,163 |
|
Datasheet |
3094 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±10% | 790 mA | - | Unshielded | 80mOhm Max | 75 @ 50MHz | 360MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.93mm x 3.17mm) | 0.133" (3.38mm) |
