Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMP3308LP-153MLOW PROFILE UNSHIELDED INDUCTOR |
1,975 |
|
Datasheet |
SMP3308LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 580 mA | 770mA | Unshielded | 1.05Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.100" (2.54mm) |
|
|
SMRF1010-015KEPOXY-COATED CHIP INDUCTOR |
2,109 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 15 nH | ±10% | 1.11 A | - | Unshielded | 78mOhm Max | 55 @ 50MHz | 2.2GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
|
SMP3308LP-103MLOW PROFILE UNSHIELDED INDUCTOR |
3,620 |
|
Datasheet |
SMP3308LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 740 mA | 940mA | Unshielded | 641mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.100" (2.54mm) |
|
PL8503FIXED IND 56UH 1.6A 135 MOHM SMD |
2,774 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 56 µH | ±10% | 1.6 A | - | Unshielded | 135mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8503NLFIXED IND 56UH 1.6A 135 MOHM SMD |
2,009 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 56 µH | ±10% | 1.6 A | - | Unshielded | 135mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|

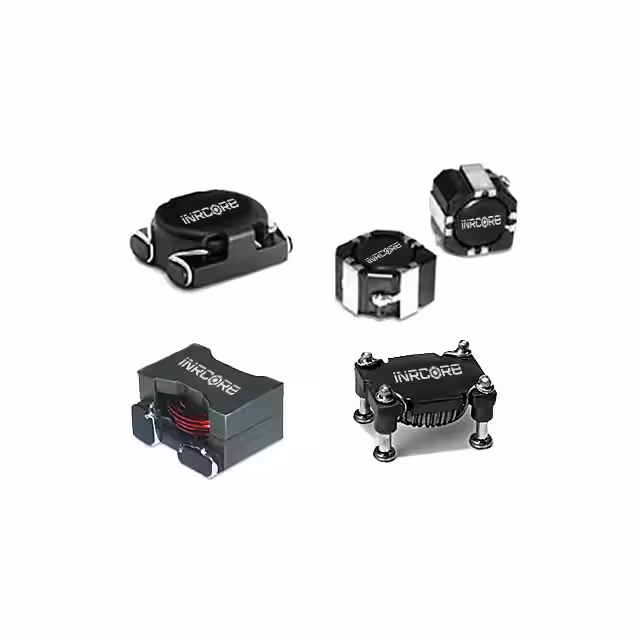

PL8506FIXED IND 152UH 1A 425 MOHM SMD |
4,724 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 152 µH | ±10% | 1 A | - | Unshielded | 425mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8506NLFIXED IND 152UH 1A 425 MOHM SMD |
4,595 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 152 µH | ±10% | 1 A | - | Unshielded | 425mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8500FIXED IND 10.4UH 3.8A 32MOHM SMD |
3,801 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 10.4 µH | ±10% | 3.8 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8500NLFIXED IND 10.4UH 3.8A 32MOHM SMD |
4,223 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 10.4 µH | ±10% | 3.8 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
8532-25HFIXED IND 100UH 1.3A 208MOHM SMD |
4,712 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±3% | 1.3 A | 640mA | Unshielded | 208mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-26HFIXED IND 120UH 1.12A 283MOHM SM |
1,891 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±3% | 1.12 A | 580mA | Unshielded | 283mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-27HFIXED IND 150UH 1.04A 330MOHM SM |
2,321 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±3% | 1.04 A | 520mA | Unshielded | 330mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-28HFIXED IND 180UH 990MA 362MOHM SM |
4,933 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±3% | 990 mA | 480mA | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-29HFIXED IND 220UH 840MA 505MOHM SM |
4,702 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±3% | 840 mA | 430mA | Unshielded | 505mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-30HFIXED IND 270UH 800MA 557MOHM SM |
3,712 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±3% | 800 mA | 390mA | Unshielded | 557mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-31HFIXED IND 330UH 740MA 650MOHM SM |
3,455 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±3% | 740 mA | 350mA | Unshielded | 650mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-32HFIXED IND 390UH 680MA 770MOHM SM |
1,140 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 390 µH | ±3% | 680 mA | 320mA | Unshielded | 770mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-33HFIXED IND 470UH 590MA 1.03OHM SM |
2,333 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±3% | 590 mA | 290mA | Unshielded | 1.03Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-34HFIXED IND 560UH 560MA 1.14OHM SM |
3,246 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±3% | 560 mA | 270mA | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532-35HFIXED IND 680UH 490MA 1.5OHM SMD |
4,230 |
|
Datasheet |
8532 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±3% | 490 mA | 250mA | Unshielded | 1.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
