Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMRF2007-182MLFMOLDED VERT TOROIDAL INDUCTOR |
1,097 |
|
Datasheet |
SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±20% | 533 mA | 310mA | Unshielded | 640mOhm Max | - | 34MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
SMRF2007-821MMOLDED VERT TOROIDAL INDUCTOR |
2,659 |
|
Datasheet |
SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 871 mA | 490mA | Unshielded | 240mOhm Max | - | 51MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
SMRF2007-101MMOLDED VERT TOROIDAL INDUCTOR |
1,004 |
|
Datasheet |
SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 1.71 A | 1.4A | Unshielded | 62mOhm Max | - | 180MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
SMRF2007-271MMOLDED VERT TOROIDAL INDUCTOR |
4,045 |
|
Datasheet |
SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.7 µH | ±20% | 1.44 A | 900mA | Unshielded | 88mOhm Max | - | 86MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
SMRF2007-392MLFMOLDED VERT TOROIDAL INDUCTOR |
4,213 |
|
Datasheet |
SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 39 µH | ±20% | 622 mA | 72mA | Unshielded | 470mOhm Max | - | 24MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
SMRF2007-272MMOLDED VERT TOROIDAL INDUCTOR |
3,928 |
|
Datasheet |
SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 27 µH | ±20% | 853 mA | 88mA | Unshielded | 250mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
040AT5002SMLFWIREWOUND TOROIDAL INDUCTOR |
2,003 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 50 µH | ±10% | 1.9 A | 2.5A | Shielded | 110mOhm Max | - | 13MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.565" L x 0.560" W (14.35mm x 14.22mm) | 0.360" (9.14mm) |
|

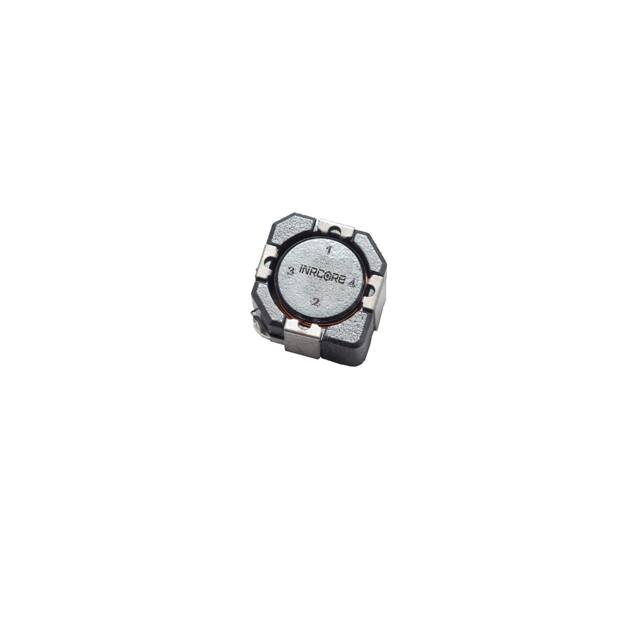

PL8914TFIXED IND 33UH 3A 64.8 MOHM SMD |
1,230 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 3 A | 3A | Shielded | 64.8mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
059KM2502HHORIZONTAL TOROIDAL INDUCTOR |
3,143 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 25 µH | ±10% | 9.8 A | 8.3A | Shielded | 11mOhm Max | - | 8MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
PL8303FIXED IND 13.8UH 17A 6.4MOHM SMD |
3,026 |
|
Datasheet |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 13.8 µH | - | 17 A | - | Unshielded | 6.4mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8303NLFIXED IND 13.8UH 17A 6.4MOHM SMD |
4,700 |
|
Datasheet |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 13.8 µH | - | 17 A | - | Unshielded | 6.4mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
1330-56FFIXED IND 33UH 130MA 3.4 OHM SMD |
1,421 |
|
Datasheet |
1330 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±1% | 130 mA | - | Unshielded | 3.4Ohm Max | 35 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330-58FFIXED IND 39UH 125MA 3.6 OHM SMD |
4,008 |
|
Datasheet |
1330 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±1% | 125 mA | - | Unshielded | 3.6Ohm Max | 35 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330-60FFIXED IND 47UH 110MA 4.5 OHM SMD |
2,779 |
|
Datasheet |
1330 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±1% | 110 mA | - | Unshielded | 4.5Ohm Max | 35 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330-62FFIXED IND 56UH 100MA 5.7 OHM SMD |
4,870 |
|
Datasheet |
1330 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±1% | 100 mA | - | Unshielded | 5.7Ohm Max | 35 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330-64FFIXED IND 68UH 92MA 6.7 OHM SMD |
3,011 |
|
Datasheet |
1330 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±1% | 92 mA | - | Unshielded | 6.7Ohm Max | 35 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330-66FFIXED IND 82UH 88MA 7.3 OHM SMD |
3,449 |
|
Datasheet |
1330 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±1% | 88 mA | - | Unshielded | 7.3Ohm Max | 35 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330-68FFIXED IND 100UH 84MA 8 OHM SMD |
3,211 |
|
Datasheet |
1330 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±1% | 84 mA | - | Unshielded | 8Ohm Max | 35 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330-70FFIXED IND 120UH 66MA 13 OHM SMD |
4,708 |
|
Datasheet |
1330 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±1% | 66 mA | - | Unshielded | 13Ohm Max | 30 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330-72FFIXED IND 150UH 61MA 15 OHM SMD |
4,907 |
|
Datasheet |
1330 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±1% | 61 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
