Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
103R-821KFIXED IND 820NH 430MA 530MOHM SM |
2,631 |
|
Datasheet |
103R | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 820 nH | ±10% | 430 mA | - | Unshielded | 530mOhm Max | 22 @ 25MHz | 160MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103R-822KFIXED IND 8.2UH 195MA 2.5OHM SMD |
3,020 |
|
Datasheet |
103R | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±10% | 195 mA | - | Unshielded | 2.5Ohm Max | 22 @ 7.9MHz | 48MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
S0402-10NH1DFIXED IND 10NH 475MA 210MOHM SMD |
2,208 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 10 nH | ±3% | 475 mA | - | Unshielded | 210mOhm Max | 20 @ 250MHz | 3.9GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-12NH1DFIXED IND 12NH 475MA 220MOHM SMD |
4,979 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 12 nH | ±3% | 475 mA | - | Unshielded | 220mOhm Max | 21 @ 250MHz | 3.6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-15NH1DFIXED IND 15NH 475MA 220MOHM SMD |
1,273 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 15 nH | ±3% | 475 mA | - | Unshielded | 220mOhm Max | 23 @ 250MHz | 3.28GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-22NH1DFIXED IND 22NH 400MA 350MOHM SMD |
2,426 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 22 nH | ±3% | 400 mA | - | Unshielded | 350mOhm Max | 24 @ 250MHz | 2.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-2N2H1DFIXED IND 2.2NH 950MA 90MOHM SMD |
3,314 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 2.2 nH | ±3% | 950 mA | - | Unshielded | 90mOhm Max | 18 @ 250MHz | 8.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-3N3H1DFIXED IND 3.3NH 800MA 80MOHM SMD |
4,293 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 3.3 nH | ±3% | 800 mA | - | Unshielded | 80mOhm Max | 18 @ 250MHz | 7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-4N7H1DFIXED IND 4.7NH 600MA 150MOHM SM |
2,523 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 4.7 nH | ±3% | 600 mA | - | Unshielded | 150mOhm Max | 14 @ 250MHz | 4.7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-6N8H1DFIXED IND 6.8NH 600MA 100MOHM SM |
2,735 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 6.8 nH | ±3% | 600 mA | - | Unshielded | 100mOhm Max | 19 @ 250MHz | 4.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-8N2H1DFIXED IND 8.2NH 600MA 130MOHM SM |
1,106 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 8.2 nH | ±3% | 600 mA | - | Unshielded | 130mOhm Max | 20 @ 250MHz | 4.4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|

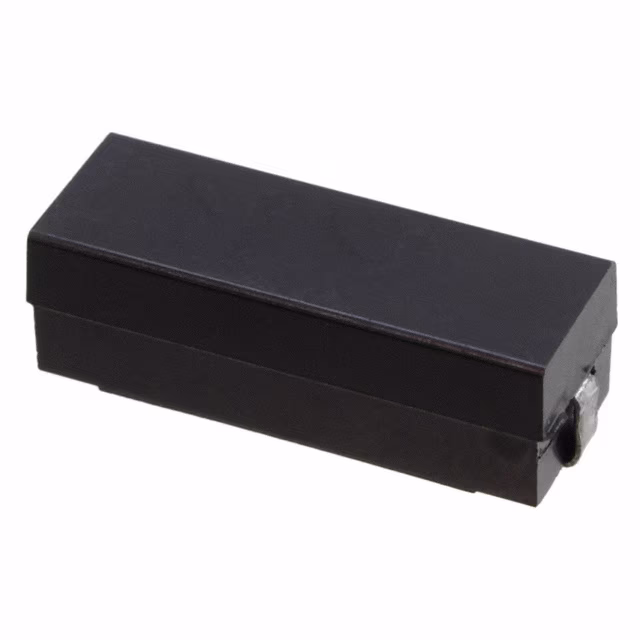

M27/370-09FIXED IND 4.7UH 4.01A 22MOHM SMD |
4,326 |
|
Datasheet |
Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±15% | 4.01 A | 2.9A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
1537-00FFIXED IND 150NH 2.74A 30 MOHM TH |
1,312 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±1% | 2.74 A | - | Unshielded | 30mOhm Max | 50 @ 25MHz | 525MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-02FFIXED IND 220NH 2.02A 55 MOHM TH |
4,582 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±1% | 2.02 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-04FFIXED IND 330NH 1.58A 90 MOHM TH |
1,977 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 330 nH | ±1% | 1.58 A | - | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-06FFIXED IND 470NH 1.37A 120MOHM TH |
3,138 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±1% | 1.37 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537R-00FFIXED IND 150NH 2.74A 30 MOHM TH |
4,762 |
|
Datasheet |
1537R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±1% | 2.74 A | - | Unshielded | 30mOhm Max | 50 @ 25MHz | 525MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537R-02FFIXED IND 220NH 2.02A 55 MOHM TH |
1,394 |
|
Datasheet |
1537R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±1% | 2.02 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537R-04FFIXED IND 330NH 1.58A 90 MOHM TH |
3,684 |
|
Datasheet |
1537R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 330 nH | ±1% | 1.58 A | - | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537R-06FFIXED IND 470NH 1.37A 120MOHM TH |
1,240 |
|
Datasheet |
1537R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±1% | 1.37 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
