Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMP2007-331MVERTICAL MOUNT TOROIDAL INDUCTOR |
3,848 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 3.3 µH | ±20% | 3.2 mA | 800mA | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
|
SMP2007-820MVERTICAL MOUNT TOROIDAL INDUCTOR |
2,566 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 820 nH | ±20% | 4.6 mA | 2.3A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
|
SMP2007-221MVERTICAL MOUNT TOROIDAL INDUCTOR |
4,288 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.2 µH | ±20% | 3.6 mA | 1A | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
|
SMP2007-470MVERTICAL MOUNT TOROIDAL INDUCTOR |
4,741 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 470 nH | ±20% | 4.8 mA | 4A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
|
SMP2007-561MVERTICAL MOUNT TOROIDAL INDUCTOR |
1,841 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 5.6 µH | ±20% | 2.8 mA | 680mA | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
|
SMP2007-330MVERTICAL MOUNT TOROIDAL INDUCTOR |
1,982 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 330 nH | ±20% | 5.1 mA | 6A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
|
SMP2007-150MVERTICAL MOUNT TOROIDAL INDUCTOR |
3,388 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 150 nH | ±20% | 5.9 mA | 15A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
|
SMP2007-152MVERTICAL MOUNT TOROIDAL INDUCTOR |
1,994 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 15 µH | ±20% | 1.9 mA | 400mA | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
PQ108081-330MHFFIXED IND 33UH 15.6A 8.9MOHM SMD |
1,915 |
|
Datasheet |
PQ108081 | Nonstandard | Tray | Active | - | Ferrite | 33 µH | ±20% | 15.6 A | 19.8A | Shielded | 8.9mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-100MHFFIXED IND 10UH 26.8A 3.2MOHM SMD |
2,623 |
|
Datasheet |
PQ108081 | Nonstandard | Tray | Active | - | Ferrite | 10 µH | ±20% | 26.8 A | 34.1A | Shielded | 3.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-500MHFFIXED IND 50UH 13.7A 11.5MOHM SM |
2,369 |
|
Datasheet |
PQ108081 | Nonstandard | Tray | Active | - | Ferrite | 50 µH | ±20% | 13.7 A | 16.2A | Shielded | 11.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
LC50-2592SMLFTOROIDAL INDUCTOR |
2,807 |
|
Datasheet |
LC37SM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25.9 µH | ±20% | 4.6 A | - | Shielded | 32mOhm Max | - | 10MHz | - | -30°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
SH150S-3.00-53FIXED IND 53UH 3A 80 MOHM SMD |
3,054 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 53 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|

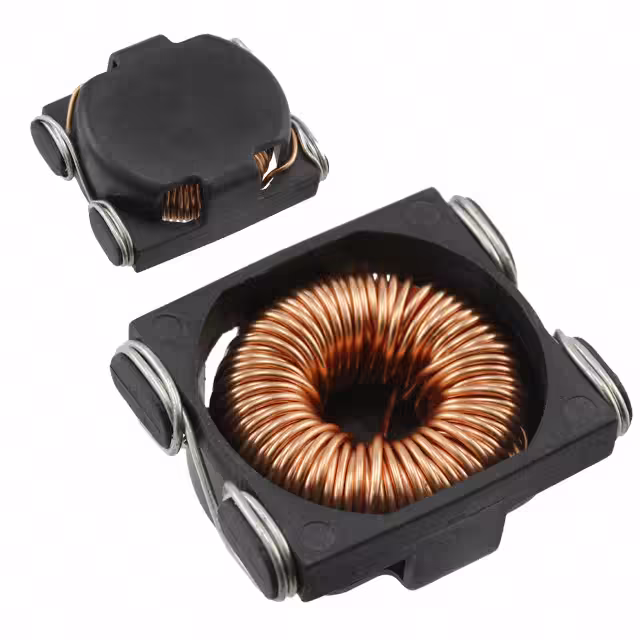

SH150S-3.00-110FIXED IND 110UH 3A 90 MOHM SMD |
1,850 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 110 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 1.213" L x 1.000" W (30.80mm x 25.40mm) | 0.514" (13.05mm) |
|
|
MLRF22M114JMIL MOLDED AXIAL RF COIL |
3,088 |
|
Datasheet |
MLRF22M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.1 mH | ±5% | 78 mA | - | Unshielded | 21Ohm Max | 60 @ 250kHz | 2.8MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.215" Dia x 0.561" L (5.47mm x 14.24mm) | - |
|
|
MLRF22M364JMIL MOLDED AXIAL RF COIL |
4,889 |
|
Datasheet |
MLRF22M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.6 mH | ±5% | 57 mA | - | Unshielded | 40Ohm Max | 70 @ 250kHz | 1.5MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.215" Dia x 0.561" L (5.47mm x 14.24mm) | - |
|
|
PT75-1260FIXED IND 75UH 7.4A 35 MOHM TH |
2,182 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 75 µH | ±15% | 7.4 A | - | Shielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.260" Dia x 0.600" W (32.00mm x 15.24mm) | - |
|
|
PT75-1550FIXED IND 75UH 10.6A 25 MOHM TH |
3,246 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 75 µH | ±15% | 10.6 A | - | Shielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.550" Dia x 0.640" W (39.37mm x 16.26mm) | - |
|
|
PT75-900FIXED IND 75UH 3.9A 60 MOHM TH |
4,682 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 75 µH | ±15% | 3.9 A | - | Shielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.900" Dia x 0.360" W (22.86mm x 9.14mm) | - |
|
|
PT75-980FIXED IND 75UH 5.2A 40 MOHM TH |
4,675 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 75 µH | ±15% | 5.2 A | - | Shielded | 40mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.980" Dia x 0.380" W (24.89mm x 9.65mm) | - |
