Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

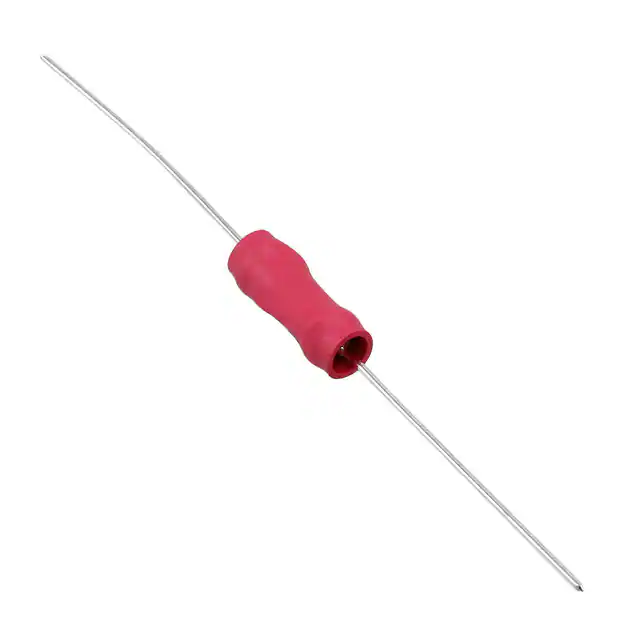

IHD1EB153LFIXED IND 15MH 80MA 36 OHM TH |
2,581 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±15% | 80 mA | 60mA | Unshielded | 36Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
50PX1003VVERTICAL TOROIDAL INDUCTOR |
2,127 |
|
Datasheet |
PX | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 2 A | 1.3A | Unshielded | 120mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.620" Dia x 0.340" L (15.75mm x 8.64mm) | - |
|
|
50PX1003HHORIZONTAL TOROIDAL INDUCTOR |
1,893 |
|
Datasheet |
PX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 2 A | 1.3A | Unshielded | 120mOhm Max | - | 3MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.620" Dia (15.75mm) | 0.340" (8.64mm) |
|
|
50PX1003HLFHORIZONTAL TOROIDAL INDUCTOR |
2,086 |
|
Datasheet |
PX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 2 A | 1.3A | Unshielded | 120mOhm Max | - | 3MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial, Horizontal (Open) | 0.620" Dia (15.75mm) | 0.340" (8.64mm) |
|
|
SMP5057-561MMOLDED UNSHIELDED INDUCTOR |
3,749 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 5.6 µH | ±20% | 7.77 A | 22A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-471MMOLDED UNSHIELDED INDUCTOR |
3,489 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±20% | 9.11 A | 22A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-681MMOLDED UNSHIELDED INDUCTOR |
1,200 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 µH | ±20% | 7.6 A | 20A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-821MMOLDED UNSHIELDED INDUCTOR |
2,531 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 8.2 µH | ±20% | 7.15 A | 18A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-391MMOLDED UNSHIELDED INDUCTOR |
4,057 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.9 µH | ±20% | 9.75 A | 24A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
24M684JMOLDED AXL UNSHIELDED RF COILS |
3,693 |
|
Datasheet |
24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 mH | ±5% | 52 mA | - | Unshielded | 59Ohm Max | 80 @ 250kHz | 1.15MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
S4924-101HFIXED IND 100NH 3.9A 25 MOHM SMD |
1,293 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±3% | 3.9 A | 3.9A | Shielded | 25mOhm Max | 50 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924-102HFIXED IND 1UH 2.32A 70 MOHM SMD |
2,386 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1 µH | ±3% | 2.32 A | 2.32A | Shielded | 70mOhm Max | 44 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924-103HFIXED IND 10UH 485MA 1.62OHM SMD |
3,054 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±3% | 485 mA | 485mA | Shielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924-104HFIXED IND 100UH 312MA 3.12OHM SM |
3,110 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±3% | 312 mA | 113mA | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924-105HFIXED IND 1MH 134MA 17.5 OHM SMD |
1,390 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±3% | 134 mA | 29mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924-121HFIXED IND 120NH 3.345A 34MOHM SM |
4,618 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 120 nH | ±3% | 3.345 A | 3.345A | Shielded | 34mOhm Max | 50 @ 25MHz | 425MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924-122HFIXED IND 1.2UH 1.92A 100MOHM SM |
1,923 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1.2 µH | ±3% | 1.92 A | 1.92A | Shielded | 100mOhm Max | 44 @ 7.9MHz | 130MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924-123HFIXED IND 12UH 440MA 2 OHM SMD |
2,762 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 12 µH | ±3% | 440 mA | 440mA | Shielded | 2Ohm Max | 55 @ 2.5MHz | 44MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924-124HFIXED IND 120UH 291MA 3.6OHM SMD |
3,041 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±3% | 291 mA | 98mA | Shielded | 3.6Ohm Max | 55 @ 790kHz | 9.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924-151HFIXED IND 150NH 3.195A 37MOHM SM |
1,918 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±3% | 3.195 A | 3.195A | Shielded | 37mOhm Max | 50 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
