Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

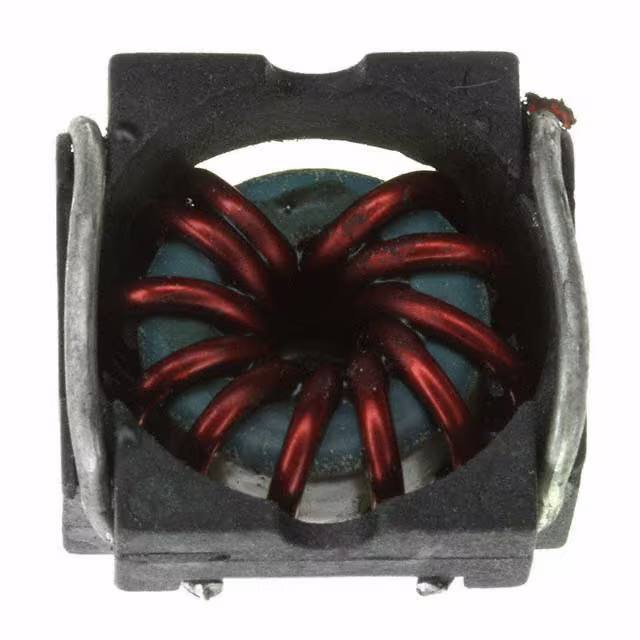

HCTR-442FIXED IND 4.2UH 12.8A 5.4MOHM SM |
1,078 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 4.2 µH | ±25% | 12.8 A | - | Shielded | 5.4mOhm Max | 29 @ 100kHz | 85MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|
HCTR-443FIXED IND 5.7UH 10.9A 7.5MOHM SM |
1,458 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 5.7 µH | ±25% | 10.9 A | - | Shielded | 7.5mOhm Max | 29 @ 100kHz | 65MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|
HCTR-444FIXED IND 9UH 6.28A 11.4MOHM SMD |
3,054 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 9 µH | ±25% | 6.28 A | - | Shielded | 11.4mOhm Max | 26 @ 100kHz | 55MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|

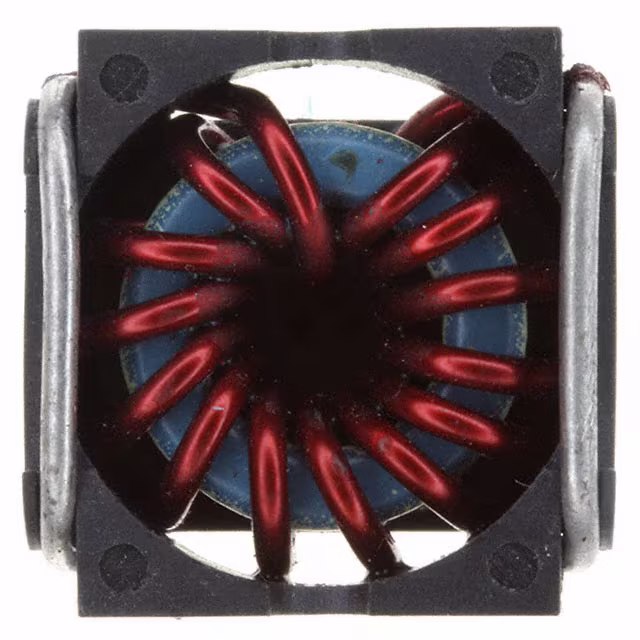

HCTR-501FIXED IND 6.5UH 12A 6.6 MOHM SMD |
1,898 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 6.5 µH | ±25% | 12 A | - | Shielded | 6.6mOhm Max | 25 @ 100kHz | 55MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|

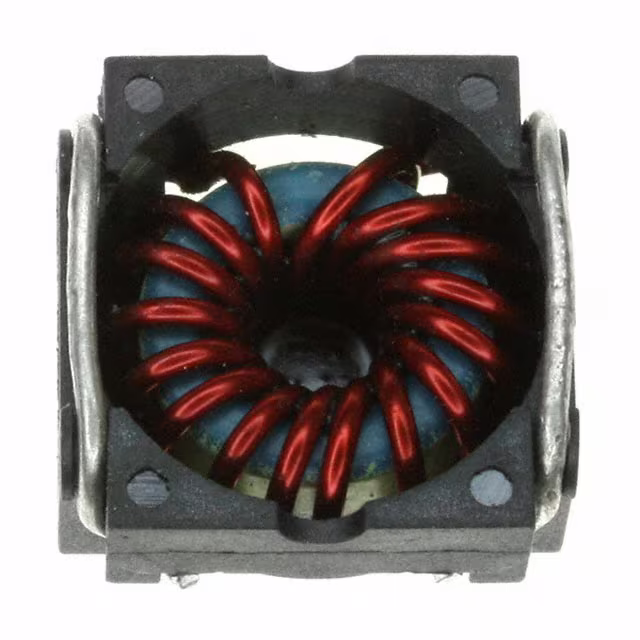

HCTR-502FIXED IND 8.4UH 10.8A 8.3MOHM SM |
3,330 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 8.4 µH | ±25% | 10.8 A | - | Shielded | 8.3mOhm Max | 23 @ 100kHz | 45MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|

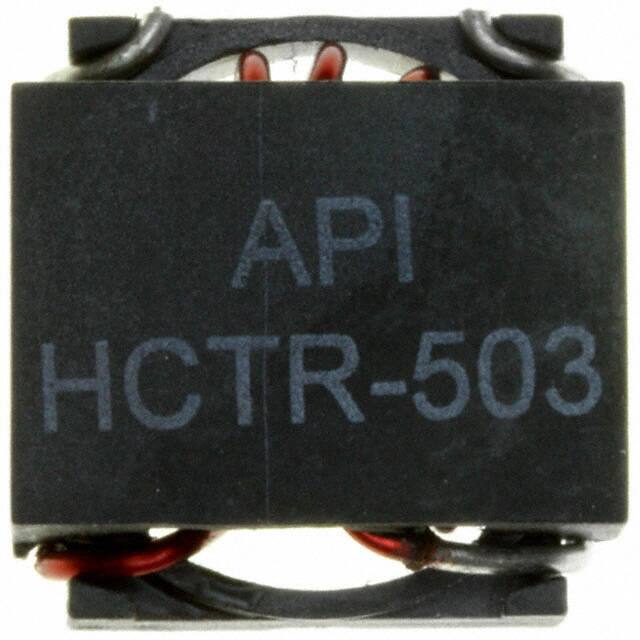

HCTR-503FIXED IND 12.5UH 9.25A 11.4 MOHM |
1,954 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 12.5 µH | ±25% | 9.25 A | - | Shielded | 11.4mOhm Max | 23 @ 100kHz | 35MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|

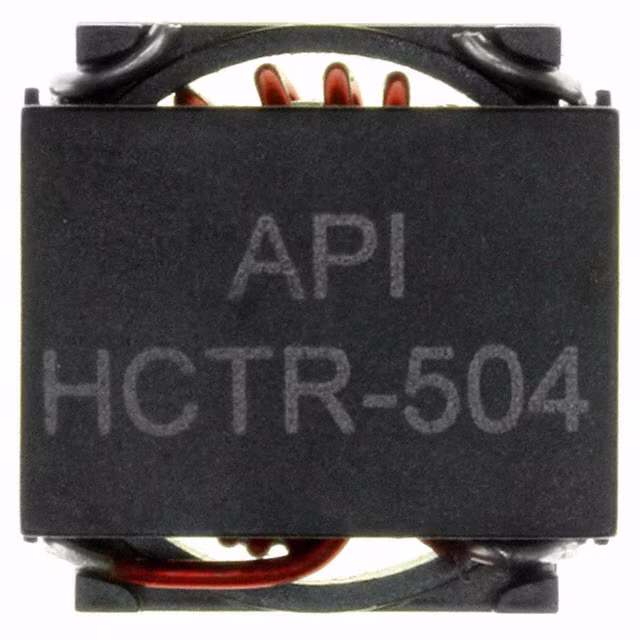

HCTR-504FIXED IND 17UH 5.37A 17 MOHM SMD |
2,781 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 17 µH | ±25% | 5.37 A | - | Shielded | 17mOhm Max | 22 @ 100kHz | 29MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|

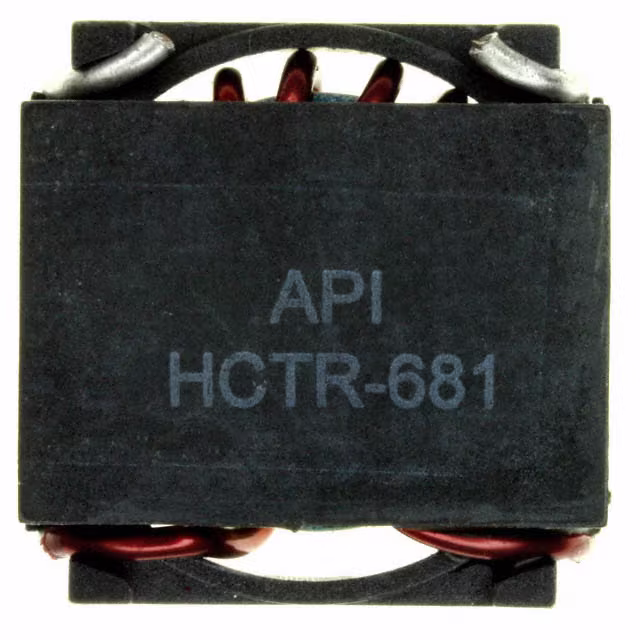

HCTR-681FIXED IND 10.5UH 13.2A 6.2 MOHM |
3,044 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 10.5 µH | ±25% | 13.2 A | - | Shielded | 6.2mOhm Max | 35 @ 100kHz | 30MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.940" W (24.00mm x 23.88mm) | 0.400" (10.16mm) |
|

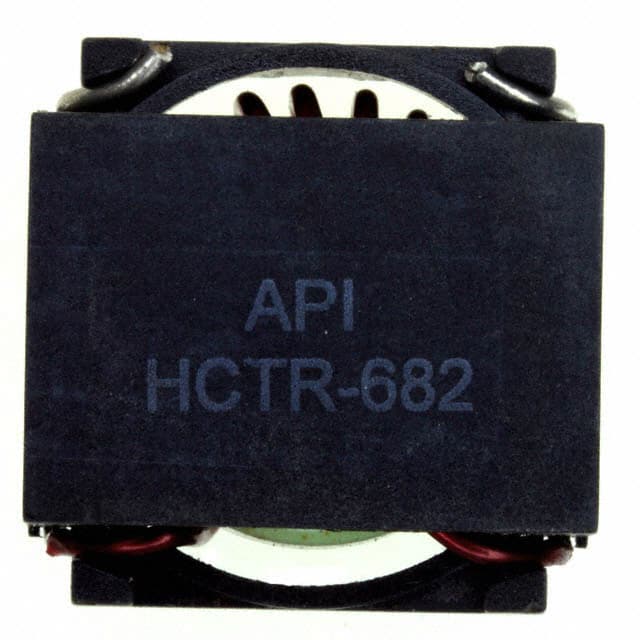

HCTR-682FIXED IND 17.6UH 9.32A 12.3 MOHM |
1,875 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 17.6 µH | ±25% | 9.32 A | - | Shielded | 12.3mOhm Max | 35 @ 100kHz | 24MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.940" W (24.00mm x 23.88mm) | 0.400" (10.16mm) |
|
HCTR-683FIXED IND 22UH 7.87A 17.5MOHM SM |
3,246 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±25% | 7.87 A | - | Shielded | 17.5mOhm Max | 30 @ 100kHz | 21MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.940" W (24.00mm x 23.88mm) | 0.400" (10.16mm) |
|
PL8500NLTFIXED IND 10.4UH 3.8A 32MOHM SMD |
1,606 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10.4 µH | ±10% | 3.8 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8500TFIXED IND 10.4UH 3.8A 32MOHM SMD |
1,290 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10.4 µH | ±10% | 3.8 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
S1008-391KFIXED IND 390NH 840MA 160MOHM SM |
4,635 |
|
Datasheet |
S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 390 nH | ±10% | 840 mA | - | Shielded | 160mOhm Max | 40 @ 25MHz | 278MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-911KFIXED IND 910NH 685MA 240MOHM SM |
2,303 |
|
Datasheet |
S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 910 nH | ±10% | 685 mA | - | Shielded | 240mOhm Max | 40 @ 25MHz | 130MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-272KFIXED IND 2.7UH 365MA 850MOHM SM |
4,611 |
|
Datasheet |
S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±10% | 365 mA | - | Shielded | 850mOhm Max | 30 @ 7.9MHz | 55MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-332KFIXED IND 3.3UH 355MA 900MOHM SM |
3,147 |
|
Datasheet |
S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±10% | 355 mA | - | Shielded | 900mOhm Max | 30 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-223KFIXED IND 22UH 170MA 6 OHM SMD |
4,904 |
|
Datasheet |
S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 170 mA | - | Shielded | 6Ohm Max | 30 @ 2.5MHz | 18MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008-273KFIXED IND 27UH 160MA 7 OHM SMD |
2,080 |
|
Datasheet |
S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±10% | 160 mA | - | Shielded | 7Ohm Max | 30 @ 2.5MHz | 15MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
HC2-4R7TR-RFIXED IND 4.7UH 17A 4.6 MOHM SMD |
2,687 |
|
Datasheet |
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 17 A | 21.25A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-6R0TR-RFIXED IND 6UH 17A 4.6 MOHM SMD |
2,196 |
|
Datasheet |
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6 µH | ±20% | 17 A | 16.5A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
