Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB2-222RADIAL POWER LINE CHOKE |
3,769 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 22 µH | ±10% | 7.2 A | 21A | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-332RADIAL POWER LINE CHOKE |
2,365 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 33 µH | ±10% | 5.6 A | 18.6A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-102RADIAL POWER LINE CHOKE |
3,518 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 10 µH | ±10% | 11.7 A | 30A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-182RADIAL POWER LINE CHOKE |
1,495 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 18 µH | ±10% | 7.2 A | 22A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-562RADIAL POWER LINE CHOKE |
3,920 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 56 µH | ±10% | 5.5 A | 13.6A | Unshielded | 31mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-272RADIAL POWER LINE CHOKE |
2,115 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 27 µH | ±10% | 5.8 A | 20.5A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-152RADIAL POWER LINE CHOKE |
1,818 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 15 µH | ±10% | 9 A | 25A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-122RADIAL POWER LINE CHOKE |
1,743 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 12 µH | ±10% | 11.4 A | 27A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-472RADIAL POWER LINE CHOKE |
2,264 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 47 µH | ±15% | 5.5 A | 15.1A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
SWS-1.26-112FIXED IND 112UH 1.26A 300MOHM SM |
1,091 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 112 µH | ±20% | 1.26 A | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|

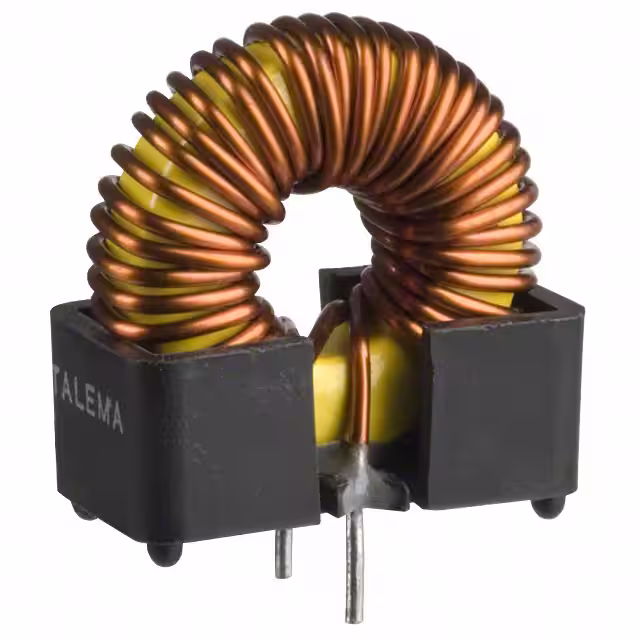

SWC-4.9-23FIXED IND 22.8UH 4.9A 36 MOHM TH |
1,663 |
|
Datasheet |
SW260 | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | Iron Powder | 22.8 µH | ±20% | 4.9 A | - | Unshielded | 36mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
SH260C-4.9-23FIXED IND 22.8UH 4.9A 36 MOHM TH |
4,043 |
|
Datasheet |
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 22.8 µH | ±20% | 4.9 A | - | Unshielded | 36mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
1840-11GFIXED IND 1.2UH 835MA 400MOHM TH |
2,227 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±2% | 835 mA | - | Unshielded | 400mOhm Max | 35 @ 7.9MHz | 180MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840-12GFIXED IND 1.5UH 755MA 485MOHM TH |
2,008 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±2% | 755 mA | - | Unshielded | 485mOhm Max | 35 @ 7.9MHz | 170MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840-13GFIXED IND 1.8UH 610MA 740MOHM TH |
2,356 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±2% | 610 mA | - | Unshielded | 740mOhm Max | 35 @ 7.9MHz | 150MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840-14GFIXED IND 2.2UH 555MA 900MOHM TH |
4,760 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±2% | 555 mA | - | Unshielded | 900mOhm Max | 35 @ 7.9MHz | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840-16GFIXED IND 2.7UH 525MA 1.1 OHM TH |
3,731 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±2% | 525 mA | - | Unshielded | 1.1Ohm Max | 35 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840-18GFIXED IND 3.3UH 1.02A 120MOHM TH |
3,376 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.3 µH | ±2% | 1.02 A | - | Unshielded | 120mOhm Max | 35 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840-20GFIXED IND 3.9UH 900MA 155MOHM TH |
4,687 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.9 µH | ±2% | 900 mA | - | Unshielded | 155mOhm Max | 35 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840-22GFIXED IND 4.7UH 775MA 210MOHM TH |
4,309 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.7 µH | ±2% | 775 mA | - | Unshielded | 210mOhm Max | 35 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
