Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

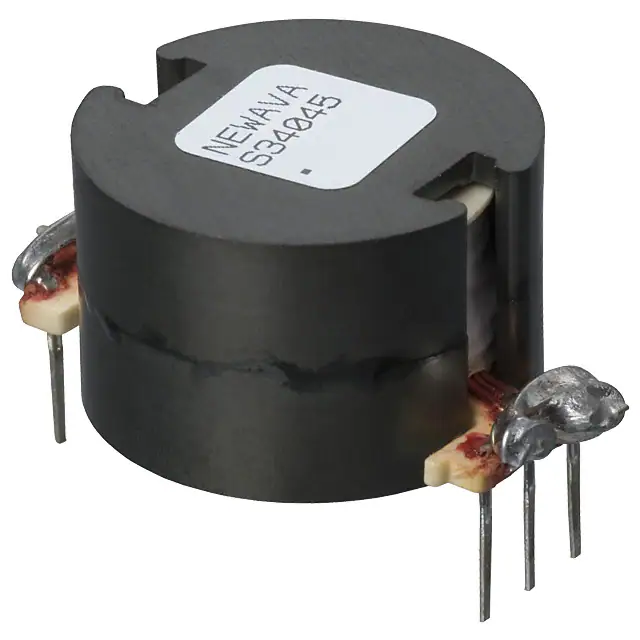

S34045FIXED IND 150UH 3A 0.06OHM TH |
4,922 |
|
Datasheet |
- | Nonstandard | Bulk | Active | - | - | 150 µH | - | 3 A | - | Unshielded | 60mOhm Max | - | - | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 1.287" L x 0.890" W (32.69mm x 22.61mm) | 0.550" (13.97mm) |
|
SWC-2.22-114FIXED IND 114UH 2.22A 100MOHM TH |
4,518 |
|
Datasheet |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 114 µH | ±20% | 2.22 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
PE-51511NLFIXED IND 43UH 10A 18 MOHM TH |
2,823 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 43 µH | - | 10 A | - | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | 1.720" (43.68mm) |
|
DB2-471RADIAL POWER LINE CHOKE |
3,561 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 15.1 A | 50A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
1944-09HFIXED IND 470NH 2A 70 MOHM TH |
4,337 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±3% | 2 A | - | Unshielded | 70mOhm Max | 55 @ 25MHz | 288MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-10HFIXED IND 560NH 1.7A 100 MOHM TH |
2,003 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±3% | 1.7 A | - | Unshielded | 100mOhm Max | 50 @ 25MHz | 264MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-11HFIXED IND 680NH 1.5A 120 MOHM TH |
4,005 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±3% | 1.5 A | - | Unshielded | 120mOhm Max | 50 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-12HFIXED IND 820NH 1.3A 160 MOHM TH |
1,017 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±3% | 1.3 A | - | Unshielded | 160mOhm Max | 45 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-13HFIXED IND 1UH 1.1A 230 MOHM TH |
4,070 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±3% | 1.1 A | - | Unshielded | 230mOhm Max | 45 @ 20MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-14HFIXED IND 1.2UH 1A 280 MOHM TH |
4,301 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±3% | 1 A | - | Unshielded | 280mOhm Max | 45 @ 20MHz | 176MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944R-09HFIXED IND 470NH 2A 70 MOHM TH |
4,295 |
|
Datasheet |
1944R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±3% | 2 A | - | Unshielded | 70mOhm Max | 55 @ 25MHz | 288MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944R-10HFIXED IND 560NH 1.7A 100 MOHM TH |
3,573 |
|
Datasheet |
1944R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±3% | 1.7 A | - | Unshielded | 100mOhm Max | 50 @ 25MHz | 264MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944R-11HFIXED IND 680NH 1.5A 120 MOHM TH |
3,980 |
|
Datasheet |
1944R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±3% | 1.5 A | - | Unshielded | 120mOhm Max | 50 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944R-12HFIXED IND 820NH 1.3A 160 MOHM TH |
4,181 |
|
Datasheet |
1944R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±3% | 1.3 A | - | Unshielded | 160mOhm Max | 45 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944R-13HFIXED IND 1UH 1.1A 230 MOHM TH |
3,964 |
|
Datasheet |
1944R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±3% | 1.1 A | - | Unshielded | 230mOhm Max | 45 @ 20MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944R-14HFIXED IND 1.2UH 1A 280 MOHM TH |
2,280 |
|
Datasheet |
1944R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±3% | 1 A | - | Unshielded | 280mOhm Max | 45 @ 20MHz | 176MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1008-101GFIXED IND 100NH 728MA 230MOHM SM |
2,509 |
|
Datasheet |
1008 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±2% | 728 mA | - | Unshielded | 230mOhm Max | 15 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.085" (2.16mm) |
|
|
1008-102GFIXED IND 1UH 685MA 320 MOHM SMD |
4,705 |
|
Datasheet |
1008 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±2% | 685 mA | - | Unshielded | 320mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.085" (2.16mm) |
|
|
1008-103GFIXED IND 10UH 245MA 2.5 OHM SMD |
3,000 |
|
Datasheet |
1008 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±2% | 245 mA | - | Unshielded | 2.5Ohm Max | 30 @ 7.9MHz | 28MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.085" (2.16mm) |
|
|
1008-121GFIXED IND 120NH 1.225A 100 MOHM |
3,885 |
|
Datasheet |
1008 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±2% | 1.225 A | - | Unshielded | 100mOhm Max | 40 @ 25MHz | 750MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.085" (2.16mm) |
