Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4922R-51JFIXED IND 15MH 61MA 105 OHM SMD |
2,198 |
|
Datasheet |
4922R | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±5% | 61 mA | 61mA | Unshielded | 105Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
4922R-52JFIXED IND 18MH 52MA 143 OHM SMD |
4,025 |
|
Datasheet |
4922R | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±5% | 52 mA | 52mA | Unshielded | 143Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
4922R-53JFIXED IND 22MH 50MA 160 OHM SMD |
4,533 |
|
Datasheet |
4922R | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±5% | 50 mA | 50mA | Unshielded | 160Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
DB1-393RADIAL POWR LINE CHOKE |
1,592 |
|
Datasheet |
DB1 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 390 µH | ±20% | 1.4 A | 3.3A | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.650" Dia (16.51mm) | 0.712" (18.08mm) |
|
|
DB2-151RADIAL POWER LINE CHOKE |
1,359 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1840R-07HFIXED IND 560NH 1.67A 100MOHM TH |
1,019 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±3% | 1.67 A | - | Unshielded | 100mOhm Max | 55 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-08HFIXED IND 680NH 1.52A 120MOHM TH |
4,018 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±3% | 1.52 A | - | Unshielded | 120mOhm Max | 55 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-09HFIXED IND 820NH 1.24A 180MOHM TH |
4,035 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±3% | 1.24 A | - | Unshielded | 180mOhm Max | 55 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-10HFIXED IND 1UH 1.05A 250 MOHM TH |
3,119 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±3% | 1.05 A | - | Unshielded | 250mOhm Max | 55 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|

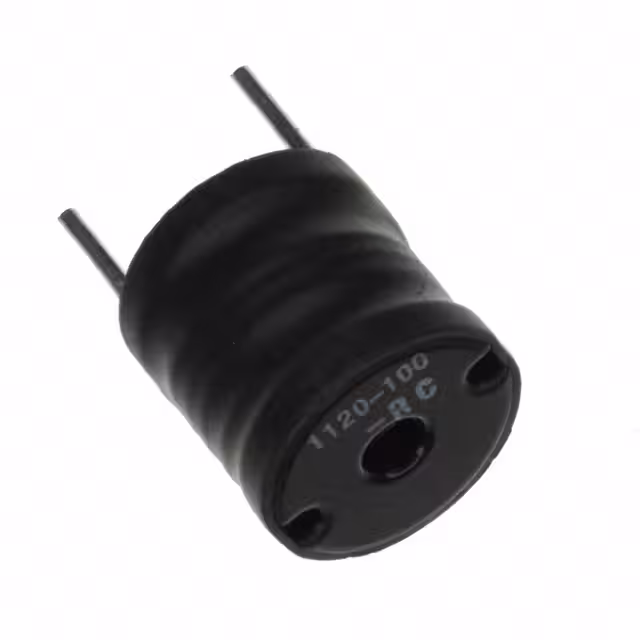

1120-100K-RCFIXED IND 10UH 11.4A 9 MOHM TH |
2,493 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 11.4 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-820K-RCFIXED IND 82UH 4.8A 60 MOHM TH |
2,109 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 4.8 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-121K-RCFIXED IND 120UH 4A 90 MOHM TH |
2,066 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 4 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-122K-RCFIXED IND 1.2MH 800MA 1.14OHM TH |
3,004 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 800 mA | - | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-180K-RCFIXED IND 18UH 7.2A 18 MOHM TH |
3,821 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 7.2 A | - | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-181K-RCFIXED IND 180UH 4A 110 MOHM TH |
1,096 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 4 A | - | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-1R0M-RCFIXED IND 1UH 11.4A 3 MOHM TH |
1,015 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 11.4 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-220K-RCFIXED IND 22UH 7.2A 19 MOHM TH |
4,789 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 7.2 A | - | Unshielded | 19mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-270K-RCFIXED IND 27UH 5.5A 26 MOHM TH |
3,898 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 5.5 A | - | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-330K-RCFIXED IND 33UH 5.5A 29 MOHM TH |
4,125 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 5.5 A | - | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-331K-RCFIXED IND 330UH 1.6A 305 MOHM TH |
3,931 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.6 A | - | Unshielded | 305mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
