Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

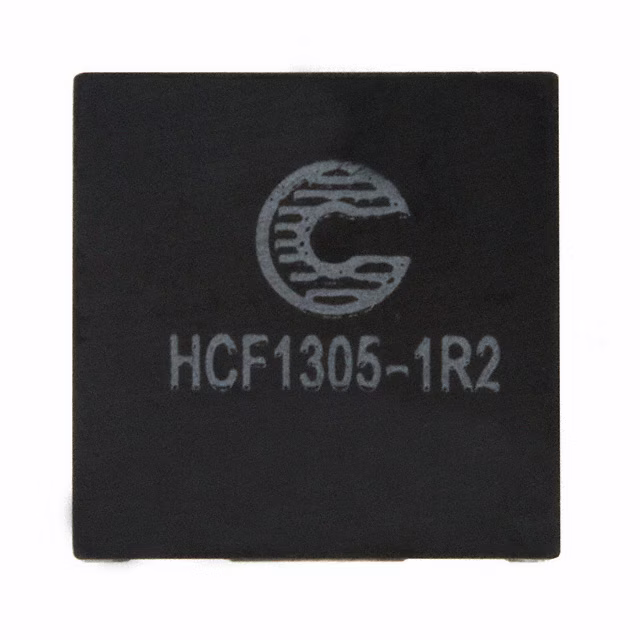

HCF1305-1R2-RFIXED IND 1.2UH 22A 1.9 MOHM SMD |
3,930 |
|
Datasheet |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 22 A | 20A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SH150S-0.38-118FIXED IND 118UH 380MA 1.2OHM SMD |
3,957 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 118 µH | ±20% | 380 mA | - | Unshielded | 1.2Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.441" L x 0.433" W (11.20mm x 11.00mm) | 0.301" (7.65mm) |
|
PL9405TFIXED IND 4.7UH 4.1A 21.2MOHM SM |
2,994 |
|
Datasheet |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 4.1 A | 4.1A | Shielded | 21.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
SWC-3.0-330FIXED IND 330UH 3A 150 MOHM TH |
2,103 |
|
Datasheet |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 330 µH | ±20% | 3 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
IHSM4825ER1R5LFIXED IND 1.5UH 6.9A 20 MOHM SMD |
4,532 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±15% | 6.9 A | 3.5A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
3B752WW HIGH CURRENT POWER CHOKE |
3,350 |
|
Datasheet |
3B | Axial | Bulk | Active | Toroidal | - | 75 µH | ±10% | 3 A | - | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 0.850" L (12.70mm x 21.59mm) | - |
|
|
2256-34JFIXED IND 560UH 330MA 3.75OHM TH |
2,154 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±5% | 330 mA | 330mA | Unshielded | 3.75Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-35JFIXED IND 680UH 300MA 4.31OHM TH |
3,721 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 µH | ±5% | 300 mA | 300mA | Unshielded | 4.31Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-36JFIXED IND 820UH 260MA 6.04OHM TH |
3,145 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±5% | 260 mA | 260mA | Unshielded | 6.04Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-37JFIXED IND 1MH 240MA 6.9 OHM TH |
3,563 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±5% | 240 mA | 240mA | Unshielded | 6.9Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-38JFIXED IND 1.2MH 200MA 10 OHM TH |
3,382 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.2 mH | ±5% | 200 mA | 200mA | Unshielded | 10Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-39JFIXED IND 1.5MH 178MA 12.5OHM TH |
1,218 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 mH | ±5% | 178 mA | 178mA | Unshielded | 12.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-40JFIXED IND 1.8MH 157MA 16 OHM TH |
2,946 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 mH | ±5% | 157 mA | 157mA | Unshielded | 16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-41JFIXED IND 2.2MH 141MA 20 OHM TH |
2,076 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 2.2 mH | ±5% | 141 mA | 141mA | Unshielded | 20Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-42JFIXED IND 2.7MH 131MA 23 OHM TH |
4,541 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 2.7 mH | ±5% | 131 mA | 131mA | Unshielded | 23Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-43JFIXED IND 3.3MH 126MA 25 OHM TH |
3,479 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 mH | ±5% | 126 mA | 126mA | Unshielded | 25Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-44JFIXED IND 3.9MH 110MA 33 OHM TH |
2,773 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 3.9 mH | ±5% | 110 mA | 110mA | Unshielded | 33Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-45JFIXED IND 4.7MH 103MA 37 OHM TH |
2,427 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 mH | ±5% | 103 mA | 103mA | Unshielded | 37Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-46JFIXED IND 5.6MH 100MA 40 OHM TH |
2,817 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 5.6 mH | ±5% | 100 mA | 100mA | Unshielded | 40Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256-47JFIXED IND 6.8MH 80MA 62 OHM TH |
1,805 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 mH | ±5% | 80 mA | 80mA | Unshielded | 62Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
