Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4232-472FFIXED IND 4.7UH 339MA 1.8OHM SMD |
3,783 |
|
Datasheet |
4232 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±1% | 339 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
|
4232-473FFIXED IND 47UH 135MA 11.4OHM SMD |
2,348 |
|
Datasheet |
4232 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 47 µH | ±1% | 135 mA | - | Unshielded | 11.4Ohm Max | 30 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
|
4232-561FFIXED IND 560NH 338MA 1.06OHM SM |
3,390 |
|
Datasheet |
4232 | 2-SMD | Tape & Reel (TR) | Active | Wirewound | Phenolic | 560 nH | ±1% | 338 mA | - | Unshielded | 1.06Ohm Max | 15 @ 25MHz | 120MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
|
4232-562FFIXED IND 5.6UH 322MA 2 OHM SMD |
4,907 |
|
Datasheet |
4232 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 5.6 µH | ±1% | 322 mA | - | Unshielded | 2Ohm Max | 30 @ 7.9MHz | 36MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
|
4232-681FFIXED IND 680NH 312MA 1.25OHM SM |
1,366 |
|
Datasheet |
4232 | 2-SMD | Tape & Reel (TR) | Active | Wirewound | Phenolic | 680 nH | ±1% | 312 mA | - | Unshielded | 1.25Ohm Max | 15 @ 25MHz | 110MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
|
4232-682FFIXED IND 6.8UH 294MA 2.4OHM SMD |
3,111 |
|
Datasheet |
4232 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 6.8 µH | ±1% | 294 mA | - | Unshielded | 2.4Ohm Max | 30 @ 7.9MHz | 22MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
|
4232-821FFIXED IND 820NH 294MA 1.4OHM SMD |
2,456 |
|
Datasheet |
4232 | 2-SMD | Tape & Reel (TR) | Active | Wirewound | Phenolic | 820 nH | ±1% | 294 mA | - | Unshielded | 1.4Ohm Max | 10 @ 25MHz | 100MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
|
4232-822FFIXED IND 8.2UH 263MA 3 OHM SMD |
1,947 |
|
Datasheet |
4232 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 8.2 µH | ±1% | 263 mA | - | Unshielded | 3Ohm Max | 30 @ 7.9MHz | 21MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
|
3B103LFWW HIGH CURRENT POWER CHOKE |
1,368 |
|
Datasheet |
3B | Axial | Bulk | Active | Toroidal | - | 100 µH | ±10% | 3 A | - | Unshielded | 85mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.600" Dia x 1.100" L (15.24mm x 27.94mm) | - |
|
|
DB1-223RADIAL POWR LINE CHOKE |
4,000 |
|
Datasheet |
DB1 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 220 µH | ±10% | 1.8 A | 4.3A | Unshielded | 172mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.650" Dia (16.51mm) | 0.712" (18.08mm) |
|

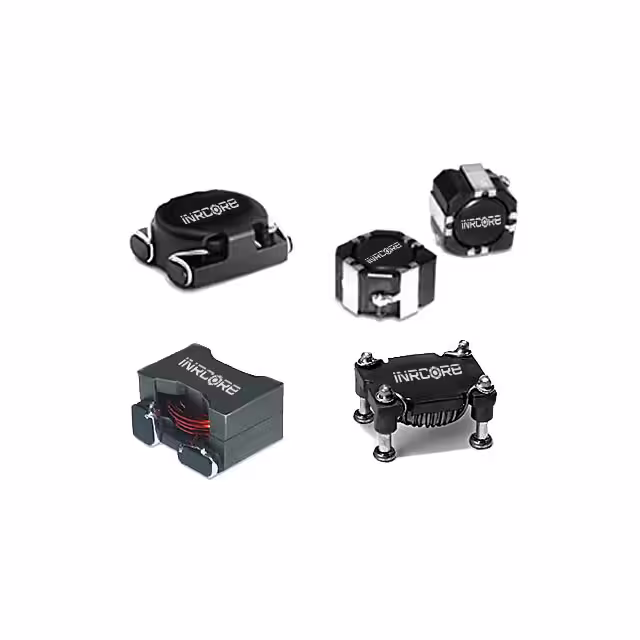

PL8100FIXED IND 1.1UH 3.4A 11 MOHM SMD |
2,896 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 1.1 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
|
PL8100NLFIXED IND 1.1UH 3.4A 11 MOHM SMD |
1,481 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 1.1 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
S1812-394KFIXED IND 390UH 105MA 18 OHM SMD |
1,716 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 390 µH | ±10% | 105 mA | - | Shielded | 18Ohm Max | 40 @ 790kHz | 3.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-332KFIXED IND 3.3UH 534MA 700MOHM SM |
3,136 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±10% | 534 mA | - | Shielded | 700mOhm Max | 40 @ 7.9MHz | 61MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1537-701KFIXED IND 150NH 2.27A 28 MOHM TH |
1,536 |
|
Datasheet |
1537-7 | Axial | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±10% | 2.27 A | 2.27A | Shielded | 28mOhm | 45 @ 25MHz | 250MHz | - | - | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-702JFIXED IND 220NH 1.92A 39 MOHM TH |
1,269 |
|
- |
1537-7 | Axial | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±5% | 1.92 A | 1.92A | Shielded | 39mOhm | 45 @ 25MHz | 250MHz | - | - | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-702KFIXED IND 220NH 1.92A 39 MOHM TH |
4,739 |
|
Datasheet |
1537-7 | Axial | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±10% | 1.92 A | 1.92A | Shielded | 39mOhm | 45 @ 25MHz | 250MHz | - | - | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-703JFIXED IND 330NH 1.63A 54 MOHM TH |
2,890 |
|
- |
1537-7 | Axial | Tape & Reel (TR) | Active | - | Iron | 330 nH | ±5% | 1.63 A | 1.63A | Shielded | 54mOhm | 45 @ 25MHz | 250MHz | - | - | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-703KFIXED IND 330NH 1.63A 54 MOHM TH |
3,232 |
|
Datasheet |
1537-7 | Axial | Tape & Reel (TR) | Active | - | Iron | 330 nH | ±10% | 1.63 A | 1.63A | Shielded | 54mOhm | 45 @ 25MHz | 250MHz | - | - | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-704JFIXED IND 470NH 1.53A 62 MOHM TH |
2,492 |
|
- |
1537-7 | Axial | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±5% | 1.53 A | 1.53A | Shielded | 62mOhm | 45 @ 25MHz | 235MHz | - | - | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
