Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5022-563JFIXED IND 56UH 335MA 3 OHM SMD |
2,634 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 56 µH | ±5% | 335 mA | - | Unshielded | 3Ohm Max | 55 @ 2.5MHz | 12MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-623JFIXED IND 62UH 328MA 3.15OHM SMD |
1,478 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 62 µH | ±5% | 328 mA | - | Unshielded | 3.15Ohm Max | 55 @ 2.5MHz | 11.5MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-683JFIXED IND 68UH 320MA 3.3 OHM SMD |
2,490 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 68 µH | ±5% | 320 mA | - | Unshielded | 3.3Ohm Max | 55 @ 2.5MHz | 11MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-823JFIXED IND 82UH 295MA 3.9 OHM SMD |
3,013 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 82 µH | ±5% | 295 mA | - | Unshielded | 3.9Ohm Max | 50 @ 2.5MHz | 10.3MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-124JFIXED IND 120UH 255MA 5.2OHM SMD |
2,599 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 120 µH | ±5% | 255 mA | - | Unshielded | 5.2Ohm Max | 65 @ 790kHz | 8.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-134JFIXED IND 130UH 250MA 5.45OHM SM |
2,955 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 130 µH | ±5% | 250 mA | - | Unshielded | 5.45Ohm Max | 65 @ 790kHz | 8.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-184JFIXED IND 180UH 224MA 6.75OHM SM |
1,977 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 180 µH | ±5% | 224 mA | - | Unshielded | 6.75Ohm Max | 65 @ 790kHz | 7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-244JFIXED IND 240UH 210MA 7.8OHM SMD |
4,020 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 240 µH | ±5% | 210 mA | - | Unshielded | 7.8Ohm Max | 65 @ 790kHz | 5.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-274JFIXED IND 270UH 182MA 11 OHM SMD |
1,170 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 270 µH | ±5% | 182 mA | - | Unshielded | 11Ohm Max | 65 @ 790kHz | 5.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-394JFIXED IND 390UH 149MA 16.3OHM SM |
4,793 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 390 µH | ±5% | 149 mA | - | Unshielded | 16.3Ohm Max | 65 @ 790kHz | 4.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-514JFIXED IND 510UH 139MA 18.8OHM SM |
3,453 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 510 µH | ±5% | 139 mA | - | Unshielded | 18.8Ohm Max | 65 @ 790kHz | 3.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-564JFIXED IND 560UH 136MA 19.5OHM SM |
1,886 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 560 µH | ±5% | 136 mA | - | Unshielded | 19.5Ohm Max | 65 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-624JFIXED IND 620UH 119MA 25.9OHM SM |
2,072 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 620 µH | ±5% | 119 mA | - | Unshielded | 25.9Ohm Max | 65 @ 790kHz | 3.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-684JFIXED IND 680UH 116MA 27.2OHM SM |
3,703 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 680 µH | ±5% | 116 mA | - | Unshielded | 27.2Ohm Max | 65 @ 790kHz | 3.1MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-754JFIXED IND 750UH 112MA 28.6OHM SM |
3,301 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 750 µH | ±5% | 112 mA | - | Unshielded | 28.6Ohm Max | 65 @ 790kHz | 2.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-914JFIXED IND 910UH 107MA 31.5OHM SM |
4,395 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 910 µH | ±5% | 107 mA | - | Unshielded | 31.5Ohm Max | 65 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
IHSM3825ER221LFIXED IND 220UH 340MA 3.65OHM SM |
3,073 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±15% | 340 mA | 280mA | Unshielded | 3.65Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
5022R-105JFIXED IND 1MH 105MA 33 OHM SMD |
1,180 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1 mH | ±5% | 105 mA | - | Unshielded | 33Ohm Max | 65 @ 790kHz | 2.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|

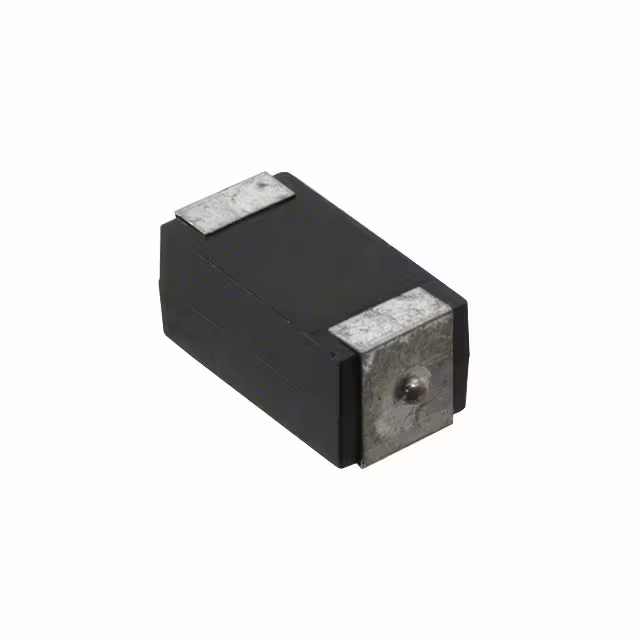

IHSM5832RF220LFIXED IND 22UH 2.8A 120 MOHM SMD |
3,680 |
|
Datasheet |
IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±15% | 2.8 A | 1.3A | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
2474-37KFIXED IND 1MH 390MA 2.3 OHM TH |
1,863 |
|
Datasheet |
2474 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±10% | 390 mA | 200mA | Unshielded | 2.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
