Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1641R-471HFIXED IND 470NH 580MA 250MOHM TH |
3,874 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±3% | 580 mA | 580mA | Shielded | 250mOhm Max | 44 @ 25MHz | 235MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-472HFIXED IND 4.7UH 390MA 550MOHM TH |
3,883 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.7 µH | ±3% | 390 mA | 390mA | Shielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-473HFIXED IND 47UH 200MA 2.11 OHM TH |
2,796 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±3% | 200 mA | 175mA | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-561HFIXED IND 560NH 505MA 330MOHM TH |
1,329 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±3% | 505 mA | 505mA | Shielded | 330mOhm Max | 43 @ 25MHz | 210MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-562HFIXED IND 5.6UH 340MA 720MOHM TH |
1,257 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.6 µH | ±3% | 340 mA | 340mA | Shielded | 720mOhm Max | 44 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-563HFIXED IND 56UH 194MA 2.23 OHM TH |
1,298 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 56 µH | ±3% | 194 mA | 160mA | Shielded | 2.23Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-681HFIXED IND 680NH 430MA 450MOHM TH |
1,720 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±3% | 430 mA | 430mA | Shielded | 450mOhm Max | 42 @ 25MHz | 190MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-682HFIXED IND 6.8UH 285MA 1.02OHM TH |
3,707 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 µH | ±3% | 285 mA | 285mA | Shielded | 1.02Ohm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-683HFIXED IND 68UH 176MA 2.7 OHM TH |
4,375 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±3% | 176 mA | 150mA | Shielded | 2.7Ohm Max | 50 @ 2.5MHz | 21MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-821HFIXED IND 820NH 375MA 590MOHM TH |
1,754 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±3% | 375 mA | 375mA | Shielded | 590mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
1641R-822HFIXED IND 8.2UH 250MA 1.32OHM TH |
2,645 |
|
Datasheet |
1641R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 8.2 µH | ±3% | 250 mA | 250mA | Shielded | 1.32Ohm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
CTIHSM5832F-180K18UH SMD MOLDED INDUCTOR |
2,307 |
|
Datasheet |
CTIHSM5832F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 18 µH | ±10% | 1.5 A | 3.2A | Unshielded | 83mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.638" L x 0.320" W (16.20mm x 8.13mm) | 0.285" (7.24mm) |
|
|
SPFC-EFD30-100PWR FACTOR COR EFD30 PCB 100W |
2,965 |
|
Datasheet |
SPFC | Radial, Horizontal, 12 Leads | Tray | Active | Wirewound | - | 500 µH | ±10% | 600 mA | 4.2A | Shielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Horizontal, 12 Leads | 1.181" L x 1.220" W (30.00mm x 31.00mm) | 0.551" (14.00mm) |
|
|
SPFC-EFD30-225PWR FACTOR COR EFD30 PCB 225W |
1,890 |
|
Datasheet |
SPFC | Radial, Horizontal, 12 Leads | Tray | Active | Wirewound | - | 200 µH | ±10% | 1.4 A | 6A | Shielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Horizontal, 12 Leads | 1.181" L x 1.220" W (30.00mm x 31.00mm) | 0.551" (14.00mm) |
|
|
SPFC-EFD30-200PWR FACTOR COR EFD30 PCB 200W |
3,557 |
|
Datasheet |
SPFC | Radial, Horizontal, 12 Leads | Tray | Active | Wirewound | - | 250 µH | ±10% | 1.1 A | 4.8A | Shielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Horizontal, 12 Leads | 1.181" L x 1.220" W (30.00mm x 31.00mm) | 0.551" (14.00mm) |
|
|
SPFC-EFD30-150PWR FACTOR COR EFD30 PCB 150W |
3,116 |
|
Datasheet |
SPFC | Radial, Horizontal, 12 Leads | Tray | Active | Wirewound | - | 375 µH | ±10% | 800 mA | 4A | Shielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Horizontal, 12 Leads | 1.181" L x 1.220" W (30.00mm x 31.00mm) | 0.551" (14.00mm) |
|

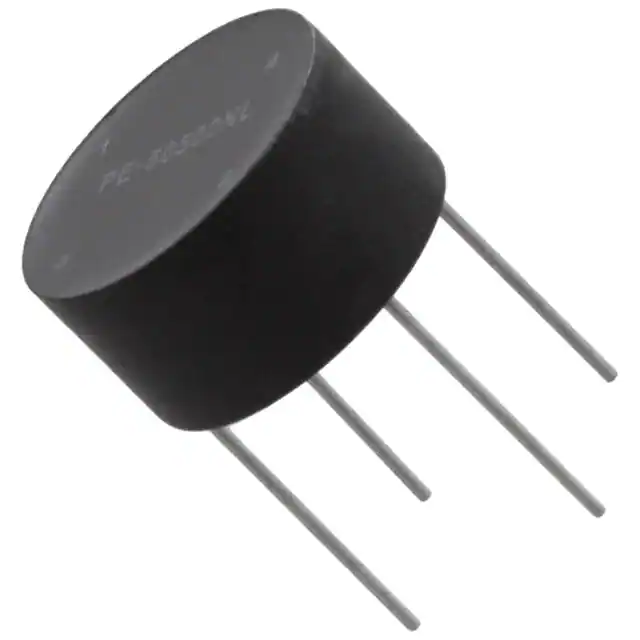

PE-50502NLFIXED IND 2MH 250MA 1.3 OHM TH |
3,910 |
|
Datasheet |
- | Radial, Vertical Cylinder, 4 Leads | Tube | Active | Toroidal | - | 2 mH | - | 250 mA | - | Unshielded | 1.3Ohm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 0.754" Dia (19.15mm) | 0.400" (10.16mm) |
|
DLF-28-0002CMC 600MA 2LN TH |
3,599 |
|
Datasheet |
DLF | Radial, Horizontal, 4 Leads | Bulk | Last Time Buy | - | - | 3 mH | ±15% | 600 mA | - | Unshielded | 1.7Ohm | - | 300kHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.114" L x 1.079" W (28.30mm x 27.40mm) | 0.657" (16.70mm) |
|
DLF-28-0008CMC 7A 2LN TH |
1,201 |
|
Datasheet |
DLF | Radial, Horizontal, 4 Leads | Bulk | Last Time Buy | - | - | 20 µH | ±15% | 7 A | - | Unshielded | 13mOhm | - | 20MHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.114" L x 1.079" W (28.30mm x 27.40mm) | 0.657" (16.70mm) |
|
IHLP6767GZERR47M51FIXED IND 470NH 65A 0.95MOHM SMD |
1,275 |
|
Datasheet |
IHLP-6767GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 65 A | 76A | Shielded | 0.95mOhm Max | - | 52.3MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
