Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4564-101KFIXED IND 100UH 200MA 2 OHM TH |
1,763 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 100 µH | ±10% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 5.3MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-121KFIXED IND 120UH 200MA 2 OHM TH |
2,778 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 120 µH | ±10% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 4.5MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|

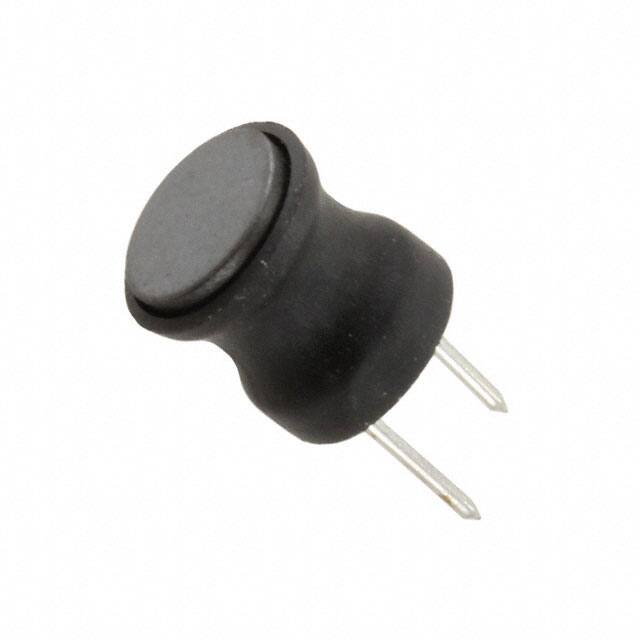

4564-151KFIXED IND 150UH 200MA 2 OHM TH |
3,605 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 150 µH | ±10% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 3.8MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-181KFIXED IND 180UH 200MA 3 OHM TH |
4,689 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 180 µH | ±10% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 3.3MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-221KFIXED IND 220UH 200MA 3 OHM TH |
3,629 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 220 µH | ±10% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 2.9MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-271KFIXED IND 270UH 200MA 3 OHM TH |
3,081 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 270 µH | ±10% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 2.6MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-331KFIXED IND 330UH 200MA 4 OHM TH |
3,517 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 330 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 2.3MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-391KFIXED IND 390UH 200MA 4 OHM TH |
3,343 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 390 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 2.1MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-471KFIXED IND 470UH 200MA 4 OHM TH |
1,163 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 470 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.9MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-561KFIXED IND 560UH 200MA 4 OHM TH |
2,787 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 560 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.7MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-681KFIXED IND 680UH 200MA 4 OHM TH |
1,446 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 680 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.6MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-821KFIXED IND 820UH 200MA 6 OHM TH |
1,872 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 820 µH | ±10% | 200 mA | - | Unshielded | 6Ohm Max | 80 @ 796kHz | 1.4MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-102KFIXED IND 1MH 150MA 6 OHM TH |
4,021 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1 mH | ±10% | 150 mA | - | Unshielded | 6Ohm Max | 90 @ 252kHz | 1.3MHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-122KFIXED IND 1.2MH 150MA 9 OHM TH |
1,488 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1.2 mH | ±10% | 150 mA | - | Unshielded | 9Ohm Max | 90 @ 252kHz | 1.2MHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-152KFIXED IND 1.5MH 150MA 9 OHM TH |
2,379 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1.5 mH | ±10% | 150 mA | - | Unshielded | 9Ohm Max | 90 @ 252kHz | 1.1MHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-182KFIXED IND 1.8MH 100MA 9 OHM TH |
2,430 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1.8 mH | ±10% | 100 mA | - | Unshielded | 9Ohm Max | 90 @ 252kHz | 1MHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-222KFIXED IND 2.2MH 100MA 13 OHM TH |
4,015 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.2 mH | ±10% | 100 mA | - | Unshielded | 13Ohm Max | 90 @ 252kHz | 900kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-272KFIXED IND 2.7MH 100MA 13 OHM TH |
3,786 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.7 mH | ±10% | 100 mA | - | Unshielded | 13Ohm Max | 90 @ 252kHz | 800kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-332KFIXED IND 3.3MH 100MA 13 OHM TH |
1,883 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 3.3 mH | ±10% | 100 mA | - | Unshielded | 13Ohm Max | 90 @ 252kHz | 700kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-392KFIXED IND 3.9MH 50MA 13 OHM TH |
1,060 |
|
Datasheet |
4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 3.9 mH | ±10% | 50 mA | - | Unshielded | 13Ohm Max | 90 @ 252kHz | 700kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
