Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GA20-224KHIGH CURRENT AXIAL POWER CHOKE |
2,477 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 2.2 mH | ±10% | 249 mA | 270mA | Unshielded | 4.48Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-334KLFHIGH CURRENT AXIAL POWER CHOKE |
3,977 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 3.3 mH | ±10% | 0.202 mA | 125mA | Unshielded | 6.8Ohm Max | - | 430kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-334KHIGH CURRENT AXIAL POWER CHOKE |
3,458 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 3.3 mH | ±10% | 0.202 mA | 125mA | Unshielded | 6.8Ohm Max | - | 430kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-334KHIGH CURRENT AXIAL POWER CHOKE |
4,357 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 3.3 mH | ±10% | 206 mA | 220mA | Unshielded | 6.56Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-274KHIGH CURRENT AXIAL POWER CHOKE |
2,411 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 2.7 mH | ±10% | 217 mA | 240mA | Unshielded | 5.9Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-274KHIGH CURRENT AXIAL POWER CHOKE |
1,987 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 2.7 mH | ±10% | 0.213 mA | 0.15mA | Unshielded | 6.1Ohm Max | - | 440kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|

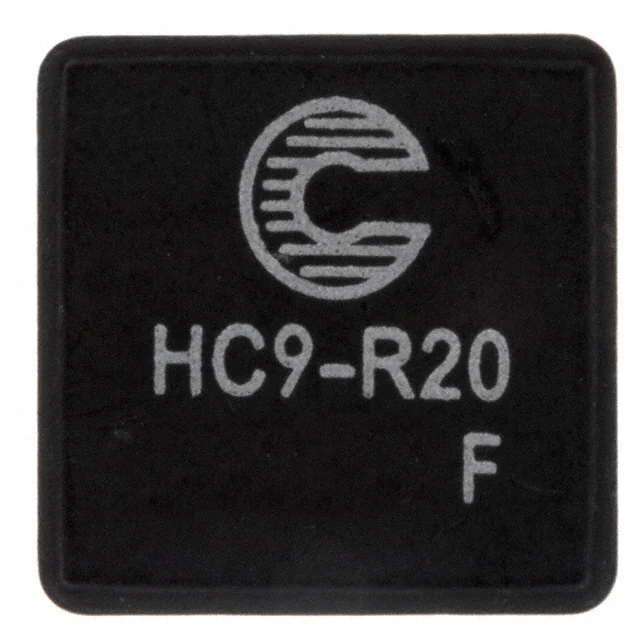

HC9-R20-RFIXED IND 200NH 46.7A 0.5MOHM SM |
1,700 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±15% | 46.7 A | 95A | Unshielded | 0.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.516" W (13.40mm x 13.10mm) | 0.295" (7.50mm) |
|
HC8LP-R15-RFIXED IND 150NH 29A 1.4 MOHM SMD |
1,539 |
|
Datasheet |
HC8LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 150 nH | ±20% | 29 A | 56A | Unshielded | 1.4mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.138" (3.50mm) |
|
PE-51510NLFIXED IND 23UH 11A 12 MOHM TH |
1,599 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 23 µH | - | 11 A | - | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.440" L x 0.800" W (36.57mm x 20.32mm) | 1.440" (36.57mm) |
|
CTH8F-562K5600UH AXIAL PWR LINE INDUCTOR |
1,027 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 5.6 mH | ±10% | 315 mA | 359mA | Unshielded | 3.92Ohm Max | - | 400kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-393K39000UH AXIAL PWR LINE INDUCTOR |
4,332 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 39 mH | ±10% | 100 mA | 143mA | Unshielded | 29Ohm Max | - | 150kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
IHLE5050FHER3R3M51FIXED IND 3.3UH 20.2A 5.44 MOHM |
3,620 |
|
Datasheet |
IHLE-5050FH-51 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 20.2 A | 16.7A | Shielded | 5.44mOhm Max | - | 17.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
|
CTH8F-330K33UH AXIAL PWR LINE INDUCTOR |
3,024 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 33 µH | ±10% | 4 A | 4.82A | Unshielded | 32mOhm Max | - | 9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-3R9K3.9UH AXIAL PWR LINE INDUCTOR |
2,121 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 3.9 µH | ±10% | 4 A | 15.5A | Unshielded | 7mOhm Max | - | 34MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-471K470UH AXIAL PWR LINE INDUCTOR |
3,611 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 470 µH | ±10% | 1.2 A | 1.24A | Unshielded | 380mOhm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-563K56000UH AXIAL PWR LINE INDUCTOR |
4,764 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 56 mH | ±10% | 83 mA | 119mA | Unshielded | 42.6Ohm Max | - | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-220K22UH AXIAL PWR LINE INDUCTOR |
1,934 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 22 µH | ±10% | 4 A | 6.07A | Unshielded | 26mOhm Max | - | 10MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-823K82000UH AXIAL PWR LINE INDUCTOR |
2,659 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 82 mH | ±10% | 67 mA | 98mA | Unshielded | 64.9Ohm Max | - | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-180K18UH AXIAL PWR LINE INDUCTOR |
2,730 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 18 µH | ±10% | 4 A | 6.64A | Unshielded | 23mOhm Max | - | 11MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
MLRF19M753JMIL MOLDED AXIAL RF COIL |
2,375 |
|
Datasheet |
MLRF19M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 750 µH | ±5% | 83 mA | - | Unshielded | 14.4Ohm Max | 60 @ 790kHz | 3.3MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
