Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1782-39GFIXED IND 6.2UH 175MA 2 OHM TH |
1,408 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.2 µH | ±2% | 175 mA | - | Unshielded | 2Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-41GFIXED IND 7.5UH 155MA 2.7 OHM TH |
4,733 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 7.5 µH | ±2% | 155 mA | - | Unshielded | 2.7Ohm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-43GFIXED IND 9.1UH 130MA 3.7 OHM TH |
2,443 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 9.1 µH | ±2% | 130 mA | - | Unshielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-45GFIXED IND 11UH 155MA 2.7 OHM TH |
1,015 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 11 µH | ±2% | 155 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-47GFIXED IND 13UH 150MA 2.8 OHM TH |
4,744 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 13 µH | ±2% | 150 mA | - | Unshielded | 2.8Ohm Max | 40 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-49GFIXED IND 16UH 145MA 3.1 OHM TH |
3,679 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 16 µH | ±2% | 145 mA | - | Unshielded | 3.1Ohm Max | 40 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-51GFIXED IND 20UH 140MA 3.3 OHM TH |
3,161 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 20 µH | ±2% | 140 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-53GFIXED IND 24UH 135MA 3.5 OHM TH |
3,768 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 24 µH | ±2% | 135 mA | - | Unshielded | 3.5Ohm Max | 50 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-95GFIXED IND 110NH 1.27A 90 MOHM TH |
4,361 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 110 nH | ±2% | 1.27 A | - | Unshielded | 90mOhm Max | 40 @ 25MHz | 640MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-97GFIXED IND 130NH 1.2A 100 MOHM TH |
1,498 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 130 nH | ±2% | 1.2 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
SMT1803-821MLFHIGH EFFICIENCY LOW PRO TOROID |
1,408 |
|
- |
SMT1803 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 8.2 µH | ±20% | 1 A | 1.54A | Unshielded | 175mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.205" W (7.90mm x 5.21mm) | 0.080" (2.03mm) |
|
|
IMS02WWDBH8R2K40FIXED IND 8.2UH 440MA 1.68OHM TH |
1,545 |
|
- |
IMS-2WWD-40 | Axial | - | Obsolete | Drum Core, Wirewound | Iron | 8.2 µH | ±10% | 440 mA | 440mA | Shielded | 1.68Ohm Max | 47 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.133" Dia x 0.335" L (3.38mm x 8.51mm) | - |
|
SWT-1.26-112FIXED IND 112UH 1.26A 300MOHM TH |
2,505 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 112 µH | ±20% | 1.26 A | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
|
S1210-392KFIXED IND 3.9UH 441MA 830MOHM SM |
2,888 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±10% | 441 mA | - | Shielded | 830mOhm Max | 40 @ 7.9MHz | 42MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210R-273KFIXED IND 27UH 201MA 4 OHM SMD |
1,928 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±10% | 201 mA | - | Shielded | 4Ohm Max | 40 @ 2.5MHz | 16MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

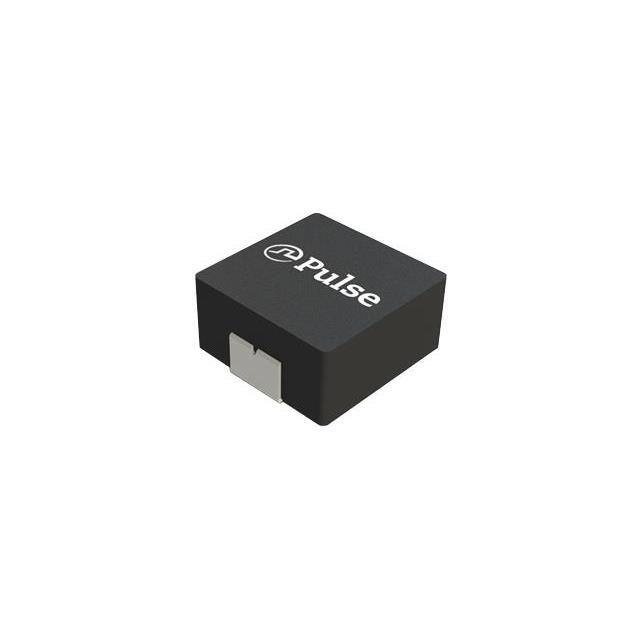

PA4349.102ANLTFIXED IND 1UH 65A 0.95 MOHM SMD |
3,975 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 65 A | 54A | Shielded | 0.95mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
GA10-183KLFHIGH CURRENT AXIAL POWER CHOKE |
1,091 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 180 µH | ±10% | 0.777 mA | 520mA | Unshielded | 460mOhm Max | - | 1.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-103KHIGH CURRENT AXIAL POWER CHOKE |
4,532 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 10 mH | ±10% | 1.156 mA | 1.2A | Unshielded | 208mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-123KLFHIGH CURRENT AXIAL POWER CHOKE |
2,385 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 120 µH | ±10% | 0.963 mA | 0.62mA | Unshielded | 300mOhm Max | - | 2.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-123KHIGH CURRENT AXIAL POWER CHOKE |
1,331 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 120 µH | ±10% | 0.963 mA | 0.62mA | Unshielded | 300mOhm Max | - | 2.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
