Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GA10-271KHIGH CURRENT AXIAL POWER CHOKE |
2,156 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 2.7 µH | ±10% | 4.456 mA | 4.2A | Unshielded | 14mOhm Max | - | 100MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-391KLFHIGH CURRENT AXIAL POWER CHOKE |
2,919 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 3.9 µH | ±10% | 4.044 A | 7.4A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
SWS-1.87-53FIXED IND 53UH 1.87A 130MOHM SMD |
3,127 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 53 µH | ±20% | 1.87 A | - | Unshielded | 130mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|

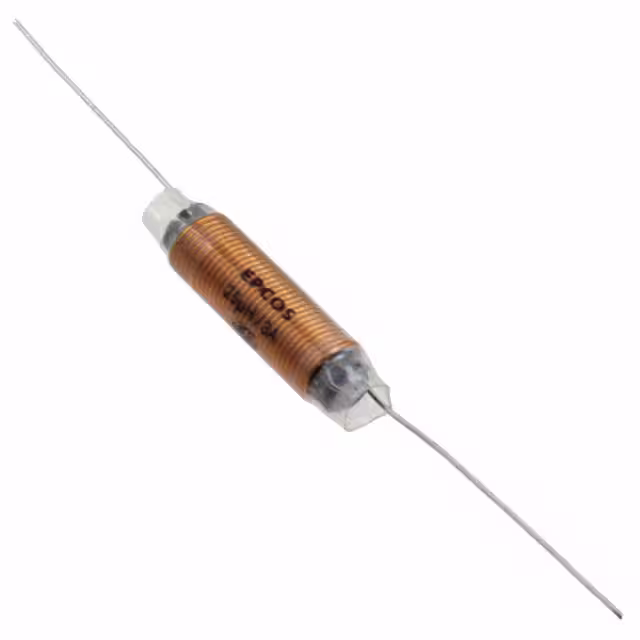

B82111B0000C024FIXED IND 25UH 3A 46 MOHM TH |
1,880 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 25 µH | ±20% | 3 A | - | Unshielded | 46mOhm | - | 85MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.335" Dia x 1.339" L (8.50mm x 34.00mm) | - |
|
FIRCH-1-BFIXED IND 2.54UH 11.6A 5.5 MOHM |
3,018 |
|
Datasheet |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.54 µH | ±15% | 11.6 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|
FIRCH-2-BFIXED IND 3.05UH 9.7A 7.3MOHM TH |
4,449 |
|
Datasheet |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.05 µH | ±15% | 9.7 A | - | Unshielded | 7.3mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|

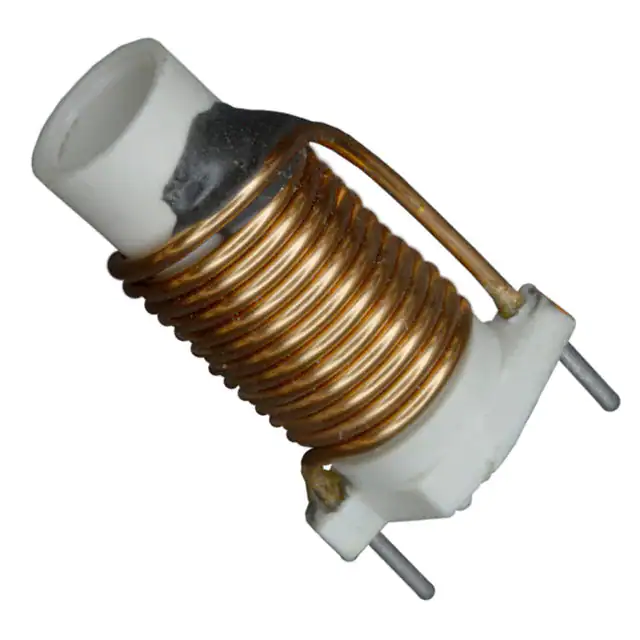

FIRCH-3-BFIXED IND 3.6UH 8.1A 9.95MOHM TH |
4,193 |
|
Datasheet |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±15% | 8.1 A | - | Unshielded | 9.95mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|

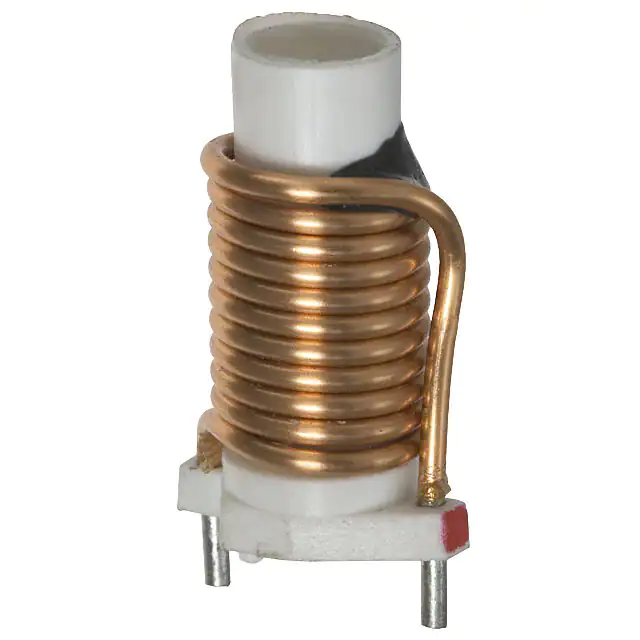

FIRCH-4-BFIXED IND 5UH 6.8A 14.1 MOHM TH |
2,620 |
|
Datasheet |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±15% | 6.8 A | - | Unshielded | 14.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|
FIRCH-5-BFIXED IND 5.9UH 5.7A 18.5MOHM TH |
3,519 |
|
Datasheet |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.9 µH | ±15% | 5.7 A | - | Unshielded | 18.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|

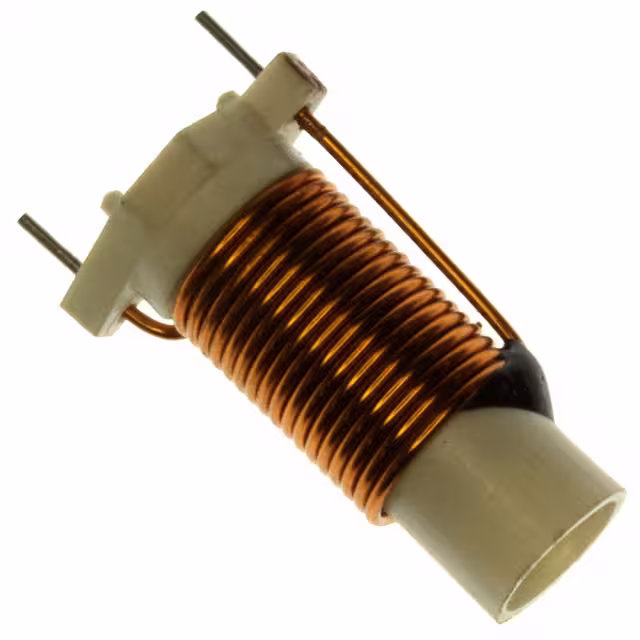

FIRCH-6-BFIXED IND 7.22UH 4.8A 26.1 MOHM |
4,738 |
|
Datasheet |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 7.22 µH | ±15% | 4.8 A | - | Unshielded | 26.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|
|
CC0805-068JSCERAMIC SMT CHIP INDUCTOR |
4,134 |
|
Datasheet |
CC0805 | Nonstandard | Tape & Reel (TR) | Active | - | Ceramic | 68 nH | ±5% | 540 mA | - | Unshielded | 380mOhm Max | 50 @ 500MHz | 1.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
GA5-104KHIGH CURRENT AXIAL POWER CHOKE |
1,454 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 1 mH | ±10% | 160 mA | 95mA | Unshielded | 7.9Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-124KLFHIGH CURRENT AXIAL POWER CHOKE |
1,869 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 1.2 mH | ±10% | 150 mA | 87mA | Unshielded | 9Ohm Max | - | 940kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-154KHIGH CURRENT AXIAL POWER CHOKE |
3,982 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 1.5 mH | ±10% | 130 mA | 78mA | Unshielded | 12Ohm Max | - | 760kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-184KHIGH CURRENT AXIAL POWER CHOKE |
1,304 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 1.8 mH | ±10% | 120 mA | 71mA | Unshielded | 14Ohm Max | - | 720kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-124KHIGH CURRENT AXIAL POWER CHOKE |
1,575 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 1.2 mH | ±10% | 150 mA | 87mA | Unshielded | 9Ohm Max | - | 940kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
1XC0394-2T0-10FIXED IND 6UH 19A 4 MOHM TH |
2,963 |
|
Datasheet |
- | Radial, Horizontal Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±25% | 19 A | - | Unshielded | 4mOhm | - | - | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - |
|
|
TCK-159INDUCTORS |
1,090 |
|
Datasheet |
- | Nonstandard | Bulk | Active | - | - | 1 µH | ±20% | 5 A | - | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
MLRF1812-333JMIL QUAL UNSHIELDED INDUCTOR |
3,564 |
|
Datasheet |
MLRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 330 µH | ±5% | 120 mA | - | Unshielded | 14Ohm Max | 40 @ 790kHz | 3.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.178" L x 0.126" W (4.53mm x 3.20mm) | 0.134" (3.40mm) |
|
|
MLRF1812-104JMIL QUAL UNSHIELDED INDUCTOR |
1,548 |
|
Datasheet |
MLRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±5% | 55 mA | - | Unshielded | 60Ohm Max | 30 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.178" L x 0.126" W (4.53mm x 3.20mm) | 0.134" (3.40mm) |
