Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4590R-566JFIXED IND 56MH 130MA 38 OHM TH |
4,809 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 mH | ±5% | 130 mA | 80mA | Unshielded | 38Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-685JFIXED IND 6.8MH 340MA 5.75OHM TH |
2,666 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±5% | 340 mA | 220mA | Unshielded | 5.75Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-686JFIXED IND 68MH 110MA 52.8 OHM TH |
1,903 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±5% | 110 mA | 70mA | Unshielded | 52.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-825JFIXED IND 8.2MH 320MA 6.44OHM TH |
4,515 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±5% | 320 mA | 200mA | Unshielded | 6.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-826JFIXED IND 82MH 100MA 67.3 OHM TH |
3,870 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 mH | ±5% | 100 mA | 70mA | Unshielded | 67.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
FP2207R1-R230-RFIXED IND 230NH 50A SMD |
4,804 |
|
- |
FP2207 | Nonstandard | Bag | Active | - | Ferrite | 230 nH | ±10% | 50 A | 72A | Shielded | 0.47mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.870" L x 0.311" W (22.10mm x 7.90mm) | 0.285" (7.25mm) |
|
SWC-0.90-330FIXED IND 330UH 900MA 180MOHM TH |
3,410 |
|
Datasheet |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
1026R-02GFIXED IND 27NH 2.2A 30 MOHM TH |
1,639 |
|
Datasheet |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 27 nH | ±2% | 2.2 A | - | Unshielded | 30mOhm Max | 40 @ 25MHz | 875MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-04GFIXED IND 33NH 2A 35 MOHM TH |
4,965 |
|
Datasheet |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 33 nH | ±2% | 2 A | - | Unshielded | 35mOhm Max | 40 @ 25MHz | 850MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-06GFIXED IND 39NH 1.9A 40 MOHM TH |
2,909 |
|
Datasheet |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 39 nH | ±2% | 1.9 A | - | Unshielded | 40mOhm Max | 40 @ 25MHz | 825MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-08GFIXED IND 47NH 1.8A 45 MOHM TH |
2,651 |
|
Datasheet |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 47 nH | ±2% | 1.8 A | - | Unshielded | 45mOhm Max | 40 @ 25MHz | 800MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-10GFIXED IND 56NH 1.7A 50 MOHM TH |
3,528 |
|
Datasheet |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 56 nH | ±2% | 1.7 A | - | Unshielded | 50mOhm Max | 40 @ 25MHz | 775MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-12GFIXED IND 68NH 1.5A 60 MOHM TH |
4,689 |
|
Datasheet |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 68 nH | ±2% | 1.5 A | - | Unshielded | 60mOhm Max | 40 @ 25MHz | 750MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-14GFIXED IND 82NH 1.4A 70 MOHM TH |
3,860 |
|
Datasheet |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 82 nH | ±2% | 1.4 A | - | Unshielded | 70mOhm Max | 40 @ 25MHz | 725MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SWS-5.0-10FIXED IND 11UH 5A 25 MOHM SMD |
4,232 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 11 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.400" (10.16mm) |
|
|
SH260S-5.0-10FIXED IND 11UH 5A 25 MOHM SMD |
4,581 |
|
Datasheet |
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 11 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.451" (11.45mm) |
|
|
IHSM3825PJ102KFIXED IND 1MH 160MA 12.97OHM SMD |
1,209 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 1 mH | ±15% | 160 mA | 130mA | Unshielded | 12.97Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM5832EB102LFIXED IND 1MH 370MA 4.2 OHM SMD |
3,304 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 1 mH | ±15% | 370 mA | 210mA | Unshielded | 4.2Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB821LFIXED IND 820UH 400MA 3.78OHM SM |
3,893 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 820 µH | ±15% | 400 mA | 230mA | Unshielded | 3.78Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|

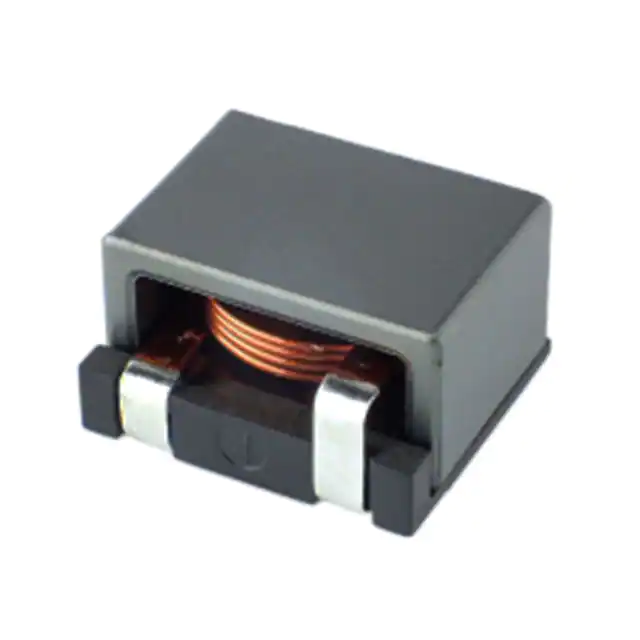

VLM13580T-R82M-D1FIXED IND 820NH 12.6A 2 MOHM SMD |
4,551 |
|
Datasheet |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 12.6 A | 36A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.480" W (13.50mm x 12.20mm) | 0.327" (8.30mm) |
