Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4307-276KFIXED IND 27MH 31MA 308 OHM TH |
2,692 |
|
Datasheet |
4307 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 27 mH | ±10% | 31 mA | 8mA | Shielded | 308Ohm Max | 27 @ 79kHz | 400kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
IHSM3825PJ271LFIXED IND 270UH 290MA 4.4OHM SMD |
3,930 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 270 µH | ±15% | 290 mA | 260mA | Unshielded | 4.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ331LFIXED IND 330UH 270MA 5.07OHM SM |
2,575 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 330 µH | ±15% | 270 mA | 230mA | Unshielded | 5.07Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ471LFIXED IND 470UH 220MA 7.67OHM SM |
4,085 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 470 µH | ±15% | 220 mA | 190mA | Unshielded | 7.67Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ561LFIXED IND 560UH 210MA 8.85OHM SM |
3,702 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 560 µH | ±15% | 210 mA | 170mA | Unshielded | 8.85Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|

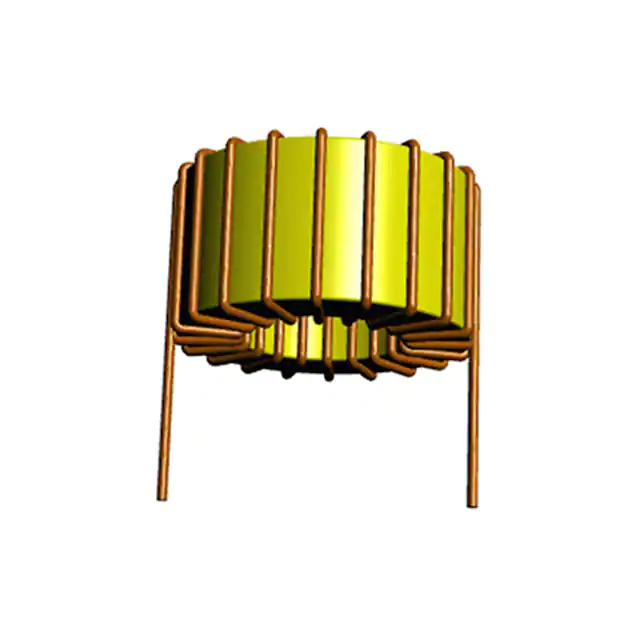

ATCA-05-182M-HFIXED IND 1.8MH 1A 680 MOHM TH |
1,254 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 1.8 mH | ±20% | 1 A | - | Unshielded | 680mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" Dia (30.00mm) | 0.669" (17.00mm) |
|
ATCA-05-182M-VFIXED IND 1.8MH 1A 680 MOHM TH |
2,165 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1.8 mH | ±20% | 1 A | - | Unshielded | 680mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" L x 0.669" W (30.00mm x 17.00mm) | - |
|
|
IHD3BH104LFIXED IND 100MH 70MA 76 OHM TH |
2,063 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±15% | 70 mA | 60mA | Unshielded | 76Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH393LFIXED IND 39MH 100MA 29.7 OHM TH |
2,822 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 39 mH | ±15% | 100 mA | 90mA | Unshielded | 29.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH473LFIXED IND 47MH 100MA 33.7 OHM TH |
2,920 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±15% | 100 mA | 90mA | Unshielded | 33.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH563LFIXED IND 56MH 100MA 38 OHM TH |
1,136 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 56 mH | ±15% | 100 mA | 80mA | Unshielded | 38Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH683LFIXED IND 68MH 80MA 52.8 OHM TH |
3,921 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±15% | 80 mA | 70mA | Unshielded | 52.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH823LFIXED IND 82MH 70MA 67.3 OHM TH |
3,198 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 82 mH | ±15% | 70 mA | 70mA | Unshielded | 67.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3AC104LFIXED IND 100MH 70MA 76 OHM TH |
3,226 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±15% | 70 mA | 60mA | Unshielded | 76Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH103LFIXED IND 10MH 250MA 7.3 OHM TH |
1,538 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±15% | 250 mA | 180mA | Unshielded | 7.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH123LFIXED IND 12MH 200MA 9.34 OHM TH |
1,011 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±15% | 200 mA | 170mA | Unshielded | 9.34Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH153LFIXED IND 15MH 200MA 10.7 OHM TH |
3,441 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±15% | 200 mA | 150mA | Unshielded | 10.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH183LFIXED IND 18MH 160MA 14.8 OHM TH |
1,174 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±15% | 160 mA | 140mA | Unshielded | 14.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH223LFIXED IND 22MH 130MA 18 OHM TH |
2,545 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±15% | 130 mA | 120mA | Unshielded | 18Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3BH273LFIXED IND 27MH 130MA 22.7 OHM TH |
4,206 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 27 mH | ±15% | 130 mA | 110mA | Unshielded | 22.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
