Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1945-09HFIXED IND 12UH 590MA 810 MOHM TH |
3,527 |
|
Datasheet |
1945 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 12 µH | ±3% | 590 mA | - | Unshielded | 810mOhm Max | 65 @ 5MHz | 42.4MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1945-10HFIXED IND 15UH 500MA 1.15 OHM TH |
4,945 |
|
Datasheet |
1945 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 15 µH | ±3% | 500 mA | - | Unshielded | 1.15Ohm Max | 80 @ 2.5MHz | 37.6MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1945-11HFIXED IND 18UH 460MA 1.4 OHM TH |
1,144 |
|
Datasheet |
1945 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 18 µH | ±3% | 460 mA | - | Unshielded | 1.4Ohm Max | 75 @ 2.5MHz | 34.4MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1945-12HFIXED IND 22UH 430MA 1.6 OHM TH |
1,887 |
|
Datasheet |
1945 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 22 µH | ±3% | 430 mA | - | Unshielded | 1.6Ohm Max | 75 @ 2.5MHz | 32MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
GA5-122KLFHIGH CURRENT AXIAL POWER CHOKE |
1,001 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 12 µH | ±10% | 1.4 A | 880mA | Unshielded | 110mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-122KHIGH CURRENT AXIAL POWER CHOKE |
2,347 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 12 µH | ±10% | 1.4 A | 880mA | Unshielded | 110mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-102KHIGH CURRENT AXIAL POWER CHOKE |
3,734 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 10 µH | ±10% | 1.5 A | 970mA | Unshielded | 95mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-102KLFHIGH CURRENT AXIAL POWER CHOKE |
2,627 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 10 µH | ±10% | 1.5 A | 970mA | Unshielded | 95mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-182KHIGH CURRENT AXIAL POWER CHOKE |
4,933 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 18 µH | ±10% | 1.1 A | 710mA | Unshielded | 160mOhm Max | - | 10MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-152KHIGH CURRENT AXIAL POWER CHOKE |
3,787 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 15 µH | ±10% | 1.2 A | 790mA | Unshielded | 150mOhm Max | - | 13MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-182KLFHIGH CURRENT AXIAL POWER CHOKE |
3,133 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 18 µH | ±10% | 1.1 A | 710mA | Unshielded | 160mOhm Max | - | 10MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
IHD3EB103LFIXED IND 10MH 250MA 7.3 OHM TH |
3,307 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±15% | 250 mA | 180mA | Unshielded | 7.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3EB153LFIXED IND 15MH 200MA 10.7 OHM TH |
2,136 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±15% | 200 mA | 150mA | Unshielded | 10.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3EB123LFIXED IND 12MH 200MA 9.34 OHM TH |
3,759 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±15% | 200 mA | 170mA | Unshielded | 9.34Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3EB183LFIXED IND 18MH 160MA 14.8 OHM TH |
3,388 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±15% | 160 mA | 140mA | Unshielded | 14.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3EB273LFIXED IND 27MH 130MA 22.7 OHM TH |
4,663 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 27 mH | ±15% | 130 mA | 110mA | Unshielded | 22.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3EB333LFIXED IND 33MH 130MA 25.7 OHM TH |
4,151 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±15% | 130 mA | 100mA | Unshielded | 25.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|

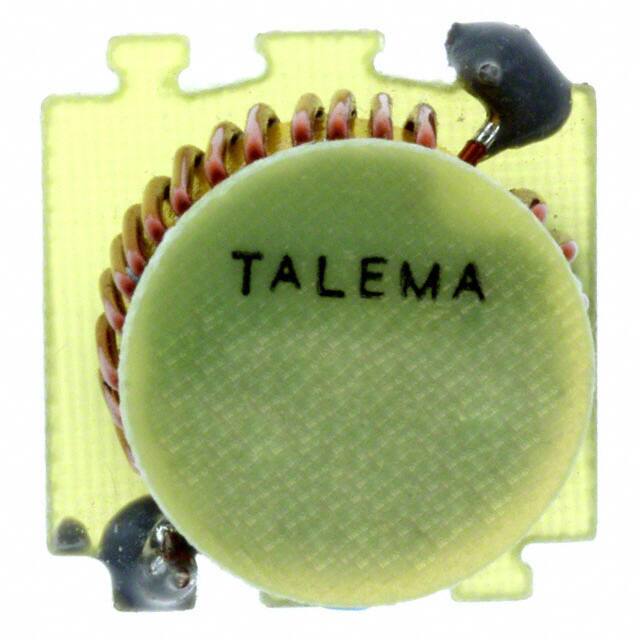

SWT-3.0-47FIXED IND 47UH 3A 50 MOHM TH |
1,767 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.422" (10.71mm) |
|
|
IHD3ER183LFIXED IND 18MH 160MA 14.8 OHM TH |
3,381 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±15% | 160 mA | 140mA | Unshielded | 14.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
831750220FIXED IND 220NH 30A 1.4 MOHM SMD |
2,605 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 220 nH | ±20% | 30 A | 60A | Shielded | 1.4mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - |
