Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHD3ER120LFIXED IND 12UH 4A 18 MOHM TH |
1,523 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±15% | 4 A | 4.7A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3ER150LFIXED IND 15UH 4A 20 MOHM TH |
3,884 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±15% | 4 A | 4.3A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3ER220LFIXED IND 22UH 4A 24 MOHM TH |
1,851 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 4 A | 3.5A | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3ER390LFIXED IND 39UH 4A 31 MOHM TH |
4,603 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±15% | 4 A | 2.7A | Unshielded | 31mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3ER470LFIXED IND 47UH 4A 34 MOHM TH |
4,461 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 4 A | 2.5A | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3ER560LFIXED IND 56UH 3.2A 43 MOHM TH |
3,497 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±15% | 3.2 A | 2.3A | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHD3ER680LFIXED IND 68UH 2.5A 59 MOHM TH |
3,101 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±15% | 2.5 A | 2.1A | Unshielded | 59mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|

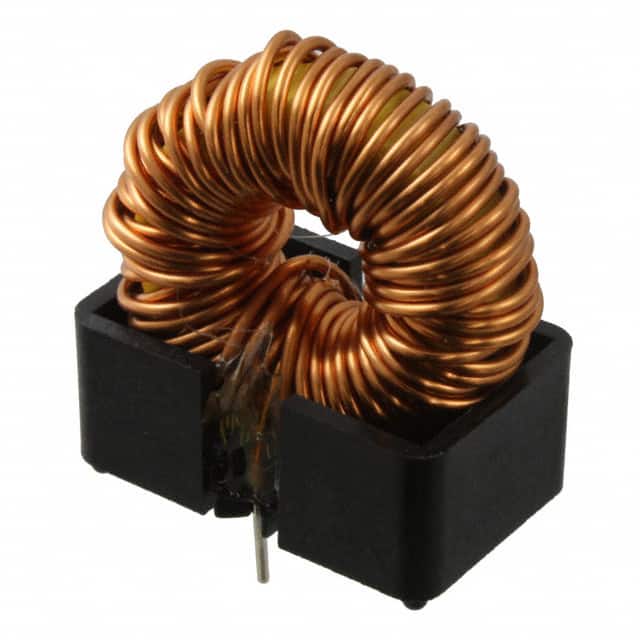

PE-54043NLFIXED IND 121UH 3A 90 MOHM TH |
4,017 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 121 µH | ±20% | 3 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
SMRF1210-332JLFMOLDED UNSHIELDED INDUCTOR |
1,780 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 33 µH | ±5% | 182 mA | - | Unshielded | 5.6Ohm Max | 30 @ 2.5MHz | 15MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
IHSM4825EB220LFIXED IND 22UH 1.7A 152 MOHM SMD |
3,849 |
|
Datasheet |
IHSM-4825 | Nonstandard | Bulk | Active | - | Ferrite | 22 µH | ±15% | 1.7 A | 1.02A | Unshielded | 152mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM4825EB270LFIXED IND 27UH 1.6A 179 MOHM SMD |
4,909 |
|
Datasheet |
IHSM-4825 | Nonstandard | Bulk | Active | - | Ferrite | 27 µH | ±15% | 1.6 A | 950mA | Unshielded | 179mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM4825EB330LFIXED IND 33UH 1.3A 222 MOHM SMD |
3,995 |
|
Datasheet |
IHSM-4825 | Nonstandard | Bulk | Active | - | Ferrite | 33 µH | ±15% | 1.3 A | 880mA | Unshielded | 222mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM5832EB1R0LFIXED IND 1UH 9A 10 MOHM SMD |
4,249 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 1 µH | ±15% | 9 A | 6.2A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB2R2LFIXED IND 2.2UH 8.5A 15 MOHM SMD |
4,259 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 2.2 µH | ±15% | 8.5 A | 4A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB2R7LFIXED IND 2.7UH 8.4A 17 MOHM SMD |
3,551 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 2.7 µH | ±15% | 8.4 A | 3.7A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB3R3LFIXED IND 3.3UH 8.3A 20 MOHM SMD |
3,978 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 3.3 µH | ±15% | 8.3 A | 3.4A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB3R9LFIXED IND 3.9UH 7.9A 21 MOHM SMD |
4,237 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 3.9 µH | ±15% | 7.9 A | 3.1A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB4R7LFIXED IND 4.7UH 7.4A 23 MOHM SMD |
4,251 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 4.7 µH | ±15% | 7.4 A | 2.8A | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB5R6LFIXED IND 5.6UH 7A 24 MOHM SMD |
3,547 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 5.6 µH | ±15% | 7 A | 2.6A | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB6R8LFIXED IND 6.8UH 6.1A 38 MOHM SMD |
3,980 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 6.8 µH | ±15% | 6.1 A | 2.3A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
