Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SML32S-473JLFMOLDED SHIELDED INDUCTOR |
3,180 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±5% | 91 mA | - | Shielded | 25Ohm Max | - | 2.1MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
FPT705-230-RFIXED IND 230NH 13A SMD |
1,598 |
|
- |
FLAT-PAC, FPT705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 230 nH | ±10% | 13 A | 23A | Shielded | 0.65mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2727 | 0.283" L x 0.276" W (7.20mm x 7.00mm) | 0.211" (5.35mm) |
|
CDEP134NP-1R6MCFIXED IND 1.6UH 15A 3.7 MOHM SMD |
1,452 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.6 µH | ±20% | 15 A | 16A | Shielded | 3.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|

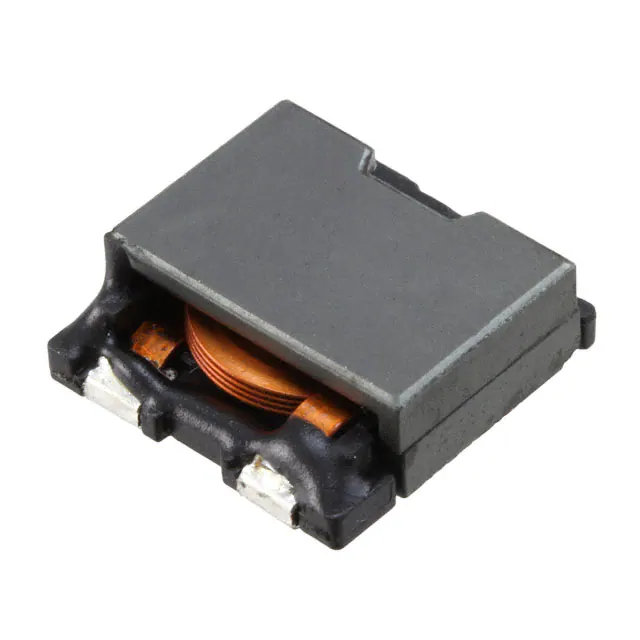

CDEP134NP-2R5MCFIXED IND 2.5UH 10.5A 6.6MOHM SM |
1,465 |
|
Datasheet |
CDEP134 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 10.5 A | 12.8A | Shielded | 6.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.193" (4.90mm) |
|
|
CSBX1250-3R3MFLAT WIRE HIGH CURRENT INDUCTOR |
1,971 |
|
Datasheet |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CSBX1265-390MFLAT WIRE HIGH CURRENT INDUCTOR |
4,461 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 39 µH | ±20% | 4.5 A | 8A | Shielded | 46.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-R20MFLAT WIRE HIGH CURRENT INDUCTOR |
3,390 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 0.2 µH | ±20% | 36 A | 110A | Shielded | 0.37mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-7R3MFLAT WIRE HIGH CURRENT INDUCTOR |
2,568 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 7.3 µH | ±20% | 13 A | 18.5A | Shielded | 6.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-R47MFLAT WIRE HIGH CURRENT INDUCTOR |
1,673 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 0.47 µH | ±20% | 32 A | 90A | Shielded | 0.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-110MFLAT WIRE HIGH CURRENT INDUCTOR |
3,660 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 11 µH | ±20% | 11 A | 15A | Shielded | 10.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-270MFLAT WIRE HIGH CURRENT INDUCTOR |
4,281 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 27 µH | ±20% | 6.5 A | 9.5A | Shielded | 27.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-R85MFLAT WIRE HIGH CURRENT INDUCTOR |
1,427 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 0.85 µH | ±20% | 26 A | 63A | Shielded | 1.05mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-1R3MFLAT WIRE HIGH CURRENT INDUCTOR |
1,292 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 1.3 µH | ±20% | 25 A | 50A | Shielded | 1.95mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-130MFLAT WIRE HIGH CURRENT INDUCTOR |
1,180 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 13 µH | ±20% | 10 A | 13.5A | Shielded | 11.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-220MFLAT WIRE HIGH CURRENT INDUCTOR |
1,026 |
|
Datasheet |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 10.7A | Shielded | 21.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
2890-00JFIXED IND 1.2UH 2.4A 75 MOHM TH |
4,588 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±5% | 2.4 A | - | Unshielded | 75mOhm Max | 60 @ 7.9MHz | 170MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-02JFIXED IND 1.5UH 2.19A 90 MOHM TH |
2,861 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±5% | 2.19 A | - | Unshielded | 90mOhm Max | 60 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-03JFIXED IND 1.8UH 1.79A 135MOHM TH |
3,544 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±5% | 1.79 A | - | Unshielded | 135mOhm Max | 60 @ 7.9MHz | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-04JFIXED IND 2.2UH 1.64A 160MOHM TH |
4,137 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±5% | 1.64 A | - | Unshielded | 160mOhm Max | 60 @ 7.9MHz | 125MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-06JFIXED IND 2.7UH 1.4A 220 MOHM TH |
1,053 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±5% | 1.4 A | - | Unshielded | 220mOhm Max | 60 @ 7.9MHz | 115MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
