Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

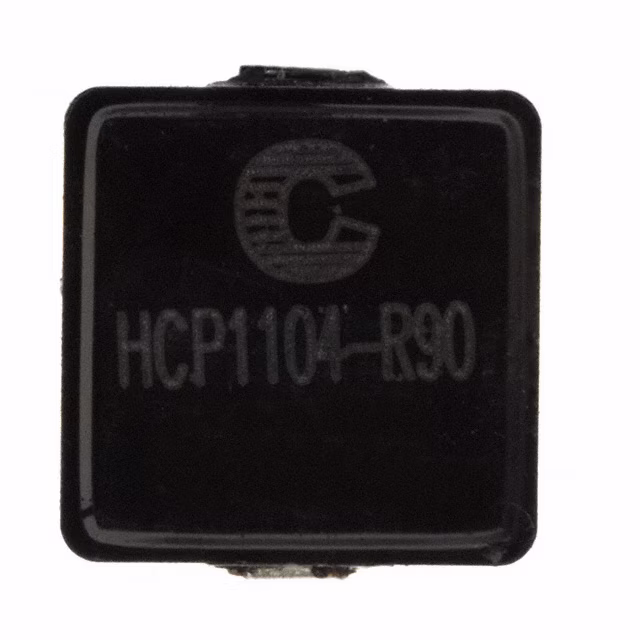

HCP1104-R90-RFIXED IND 900NH 22A 2.5 MOHM SMD |
3,821 |
|
Datasheet |
HCP1104 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 900 nH | ±20% | 22 A | 25A | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
HCLC-1000-2.4TOR IND LOW CORE LOSS 1000UH 2.4 |
3,528 |
|
Datasheet |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 1 mH | ±15% | 2.4 A | - | Shielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
IHA105BAFIXED IND 1MH 1.4A 600 MOHM TH |
1,178 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1.4 A | - | Unshielded | 600mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.550" Dia x 1.175" L (13.97mm x 29.85mm) | - |
|
IHSM7832ER682LFIXED IND 6.8MH 190MA 15.8OHM SM |
2,307 |
|
Datasheet |
IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 mH | ±15% | 190 mA | 77.5mA | Unshielded | 15.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
SML32S-100KMOLDED SHIELDED INDUCTOR |
2,999 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 100 nH | ±10% | 1.175 A | - | Shielded | 150mOhm Max | - | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SM3-820JMOLDED UNSHIELDED INDUCTOR |
3,076 |
|
Datasheet |
SM3 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 820 nH | ±5% | 792 mA | - | Unshielded | 330mOhm Max | - | 120MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SM3-221JLFMOLDED UNSHIELDED INDUCTOR |
1,385 |
|
Datasheet |
SM3 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±5% | 509 mA | - | Unshielded | 800mOhm Max | - | 60MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-221KMOLDED SHIELDED INDUCTOR |
4,695 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 2.2 µH | ±10% | 533 mA | - | Shielded | 730mOhm Max | - | 80MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-101KLFMOLDED SHIELDED INDUCTOR |
2,322 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±10% | 679 mA | - | Shielded | 400mOhm Max | - | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SM3-101JMOLDED UNSHIELDED INDUCTOR |
4,525 |
|
Datasheet |
SM3 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±5% | 769 mA | - | Unshielded | 350mOhm Max | - | 100MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-270KLFMOLDED SHIELDED INDUCTOR |
2,658 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 270 nH | ±10% | 860 mA | - | Shielded | 300mOhm Max | - | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-470KLFMOLDED SHIELDED INDUCTOR |
2,717 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±10% | 679 mA | - | Shielded | 450mOhm Max | - | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-471KLFMOLDED SHIELDED INDUCTOR |
4,612 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±10% | 455 mA | - | Shielded | 1Ohm Max | - | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SM3-821JMOLDED UNSHIELDED INDUCTOR |
1,911 |
|
Datasheet |
SM3 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 8.2 µH | ±5% | 282 mA | - | Unshielded | 2.6Ohm Max | - | 25MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-120KMOLDED SHIELDED INDUCTOR |
2,716 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 120 nH | ±10% | 1.104 A | - | Shielded | 170mOhm Max | - | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-472KMOLDED SHIELDED INDUCTOR |
2,851 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±10% | 194 mA | - | Shielded | 5.5Ohm Max | - | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-471KMOLDED SHIELDED INDUCTOR |
1,104 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±10% | 455 mA | - | Shielded | 1Ohm Max | - | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SM3-271JLFMOLDED UNSHIELDED INDUCTOR |
3,971 |
|
Datasheet |
SM3 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.7 µH | ±5% | 467 mA | - | Unshielded | 950mOhm Max | - | 55MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-101KMOLDED SHIELDED INDUCTOR |
3,542 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±10% | 679 mA | - | Shielded | 400mOhm Max | - | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-270KMOLDED SHIELDED INDUCTOR |
4,797 |
|
Datasheet |
SML32S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 270 nH | ±10% | 860 mA | - | Shielded | 300mOhm Max | - | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
