Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2320-HFIXED IND 470UH 3.8A 130 MOHM TH |
2,830 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 470 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2321-HFIXED IND 560UH 3.6A 140 MOHM TH |
2,479 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 560 µH | ±15% | 3.6 A | - | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2322-HFIXED IND 680UH 3.4A 150 MOHM TH |
2,902 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 680 µH | ±15% | 3.4 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2324-HFIXED IND 1MH 2.4A 300 MOHM TH |
2,076 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 1 mH | ±15% | 2.4 A | - | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
SMP2512-102KMOLDED UNSHIELDED INDUCTOR |
4,676 |
|
Datasheet |
SMP2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 10 µH | ±10% | 519 mA | 389mA | Unshielded | 1.5Ohm Max | - | - | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 2512 | 0.245" L x 0.095" W (6.22mm x 2.41mm) | 0.110" (2.79mm) |
|

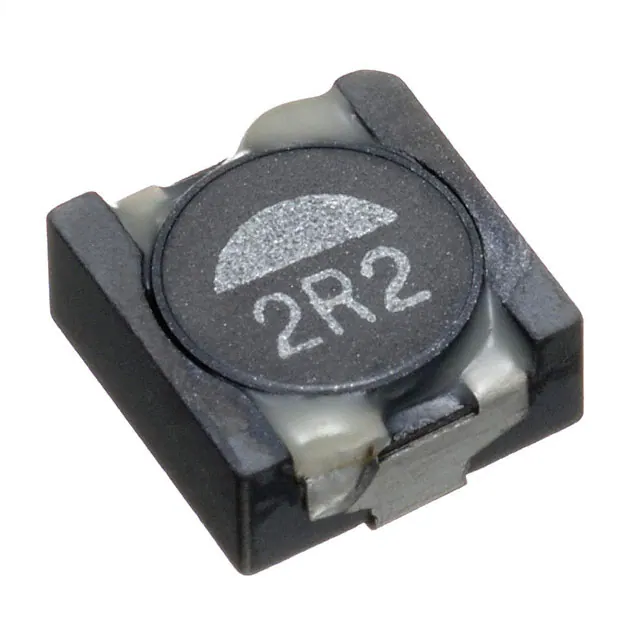

RLF7030T-1R0N6R4-TFIXED IND 1UH 6.4A 8.76 MOHM SMD |
4,150 |
|
Datasheet |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.4 A | 7.9A | Shielded | 8.76mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-1R5N6R1-TFIXED IND 1.5UH 6.1A 9.6MOHM SMD |
1,725 |
|
Datasheet |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.1 A | 6.5A | Shielded | 9.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-2R2M5R4-TFIXED IND 2.2UH 5.4A 12 MOHM SMD |
3,175 |
|
Datasheet |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5.4 A | 5.5A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-3R3M4R1-TFIXED IND 3.3UH 4.1A 20.88 MOHM |
1,701 |
|
Datasheet |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.1 A | 4.4A | Shielded | 20.88mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-4R7M3R4-TFIXED IND 4.7UH 3.4A 21.3MOHM SM |
1,978 |
|
Datasheet |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.4 A | 3.5A | Shielded | 21.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-6R8M2R8-TFIXED IND 6.8UH 2.8A 44.76 MOHM |
3,788 |
|
Datasheet |
RLF-T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.8 A | 3A | Shielded | 44.76mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
24FP-121KFIXED IND 1.2UH 5.95A 0.01OHM TH |
4,007 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±10% | 5.95 A | 12.8A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-181KFIXED IND 1.8UH 5.43A 0.012OHM |
3,670 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±10% | 5.43 A | 10A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-221KFIXED IND 2.2UH 5.22A 0.013OHM |
1,329 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±10% | 5.22 A | 9A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-151KFIXED IND 1.5UH 5.67A 0.011OHM |
2,635 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±10% | 5.67 A | 11.2A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-101KFIXED IND 1UH 6.27A 0.09OHM TH |
4,191 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±10% | 6.27 A | 13.8A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
24FP-821KFIXED IND 8.2UH 3.55A 0.028OHM |
4,051 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±10% | 3.55 A | 4.1A | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-271KFIXED IND 2.7UH 5.03A 0.014OHM |
2,680 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 2.7 µH | ±10% | 5.03 A | 8.2A | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-681KFIXED IND 6.8UH 3.69A 0.026OHM |
4,250 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±10% | 3.69 A | 4.5A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
24FP-331KFIXED IND 3.3UH 4.7A 0.016OHM TH |
4,209 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±10% | 4.7 A | 6.9A | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
