Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2890-28KFIXED IND 22UH 815MA 295 MOHM TH |
1,592 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 22 µH | ±10% | 815 mA | - | Unshielded | 295mOhm Max | 50 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-30KFIXED IND 27UH 750MA 350 MOHM TH |
1,524 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 27 µH | ±10% | 750 mA | - | Unshielded | 350mOhm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-32KFIXED IND 33UH 595MA 550 MOHM TH |
1,844 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 33 µH | ±10% | 595 mA | - | Unshielded | 550mOhm Max | 60 @ 2.5MHz | 19MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-34KFIXED IND 39UH 550MA 650 MOHM TH |
3,650 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 39 µH | ±10% | 550 mA | - | Unshielded | 650mOhm Max | 55 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-36KFIXED IND 47UH 445MA 1 OHM TH |
3,716 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 47 µH | ±10% | 445 mA | - | Unshielded | 1Ohm Max | 65 @ 2.5MHz | 16MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-38KFIXED IND 56UH 410MA 1.15 OHM TH |
2,632 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 56 µH | ±10% | 410 mA | - | Unshielded | 1.15Ohm Max | 65 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-39KFIXED IND 68UH 325MA 1.85 OHM TH |
1,013 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 68 µH | ±10% | 325 mA | - | Unshielded | 1.85Ohm Max | 75 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-40KFIXED IND 82UH 305MA 2.1 OHM TH |
4,168 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 82 µH | ±10% | 305 mA | - | Unshielded | 2.1Ohm Max | 75 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-42KFIXED IND 100UH 279MA 2.5 OHM TH |
4,802 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 100 µH | ±10% | 279 mA | - | Unshielded | 2.5Ohm Max | 75 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890-44KFIXED IND 120UH 219MA 4.1 OHM TH |
2,508 |
|
Datasheet |
2890 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 120 µH | ±10% | 219 mA | - | Unshielded | 4.1Ohm Max | 95 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-03KFIXED IND 1.8UH 1.79A 135MOHM TH |
1,132 |
|
Datasheet |
2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±10% | 1.79 A | - | Unshielded | 135mOhm Max | 60 @ 7.9MHz | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
IHA301BAFIXED IND 5UH 6.8A 15 MOHM TH |
1,136 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 6.8 A | - | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 0.800" L (12.07mm x 20.32mm) | - |
|
|
IHA201BAFIXED IND 27UH 3.7A 60 MOHM TH |
1,285 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 3.7 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 0.800" L (12.70mm x 20.32mm) | - |
|

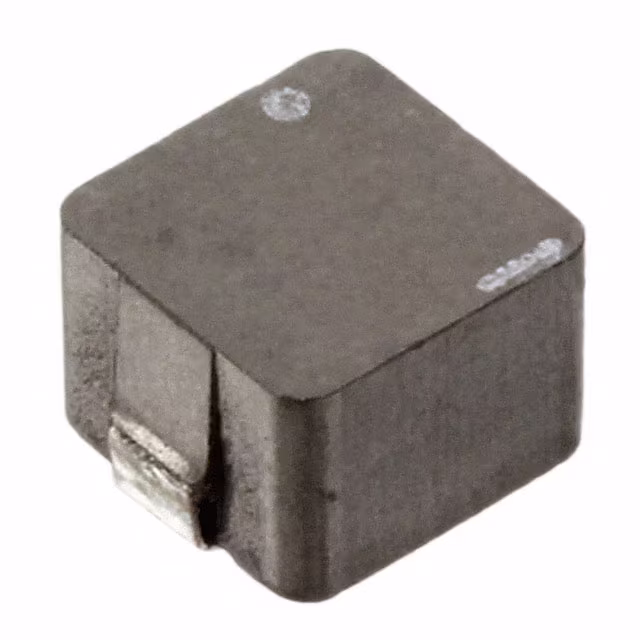

MPC0750LR68CFIXED IND 680NH 18A 2.2 MOHM SMD |
2,020 |
|
Datasheet |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±20% | 18 A | 16A | Shielded | 2.2mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.197" (5.00mm) |
|
784776056FIXED IND 5.6UH 4.8A 18 MOHM SMD |
1,244 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 4.8 A | 5.5A | Unshielded | 18mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
7443739650047FIXED IND 470NH 29.5A 0.0012OHM |
3,161 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 29.5 A | 99.4A | Shielded | 1.2mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
7443739650056FIXED IND 560NH 29.5A 0.0012OHM |
3,074 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 29.5 A | 68.3A | Shielded | 1.2mOhm Max | - | 51.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
7843320039FIXED IND 390NH 28A 1.65MOHM SMD |
4,885 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±20% | 28 A | 57A | Shielded | 1.65mOhm Max | - | 100MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
SRP1060VR-R15MIND 0.15UH 90A SLD SMD |
2,206 |
|
Datasheet |
SRP1060VR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | Metal | 150 nH | ±20% | 90 A | 87A | Shielded | 210mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.228" W (12.70mm x 5.80mm) | 0.453" (11.50mm) |
|
|
SRP1060VR-90NMIND 0.09UH 90A SLD SMD |
3,374 |
|
Datasheet |
SRP1060VR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | Metal | 90 nH | ±20% | 90 A | 95A | Shielded | 210mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.228" W (12.70mm x 5.80mm) | 0.453" (11.50mm) |
