Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4470-36JFIXED IND 820UH 150MA 22 OHM TH |
2,547 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 820 µH | ±5% | 150 mA | - | Unshielded | 22Ohm Max | 75 @ 500kHz | 2.24MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470-38JFIXED IND 1.2MH 137MA 27 OHM TH |
3,312 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.2 mH | ±5% | 137 mA | - | Unshielded | 27Ohm Max | 75 @ 500kHz | 1.68MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
0819R-74KFIXED IND 120UH 54.5MA 16 OHM TH |
3,919 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±10% | 54.5 mA | - | Unshielded | 16Ohm Max | 35 @ 790kHz | 8.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-76KFIXED IND 150UH 51MA 18 OHM TH |
4,659 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 150 µH | ±10% | 51 mA | - | Unshielded | 18Ohm Max | 35 @ 790kHz | 7.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-78KFIXED IND 180UH 49MA 20 OHM TH |
2,540 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±10% | 49 mA | - | Unshielded | 20Ohm Max | 35 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-80KFIXED IND 220UH 42.5MA 26.5 OHM |
1,724 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±10% | 42.5 mA | - | Unshielded | 26.5Ohm Max | 35 @ 790kHz | 7.1MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-82KFIXED IND 270UH 39MA 30.5 OHM TH |
4,001 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 270 µH | ±10% | 39 mA | - | Unshielded | 30.5Ohm Max | 35 @ 790kHz | 6.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-84KFIXED IND 330UH 34MA 40.5 OHM TH |
1,831 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 330 µH | ±10% | 34 mA | - | Unshielded | 40.5Ohm Max | 35 @ 790kHz | 6.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-86KFIXED IND 390UH 33MA 43 OHM TH |
4,152 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 390 µH | ±10% | 33 mA | - | Unshielded | 43Ohm Max | 35 @ 790kHz | 5.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-88KFIXED IND 470UH 31.5MA 48 OHM TH |
2,268 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±10% | 31.5 mA | - | Unshielded | 48Ohm Max | 35 @ 790kHz | 5.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-90KFIXED IND 560UH 28MA 60 OHM TH |
1,885 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±10% | 28 mA | - | Unshielded | 60Ohm Max | 35 @ 790kHz | 5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-92KFIXED IND 680UH 27MA 66 OHM TH |
1,620 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 µH | ±10% | 27 mA | - | Unshielded | 66Ohm Max | 35 @ 790kHz | 4.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-94KFIXED IND 820UH 25.5MA 72 OHM TH |
1,446 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±10% | 25.5 mA | - | Unshielded | 72Ohm Max | 35 @ 790kHz | 3.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-96KFIXED IND 1MH 24.5MA 79 OHM TH |
1,370 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±10% | 24.5 mA | - | Unshielded | 79Ohm Max | 35 @ 790kHz | 3.3MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
SBC7-682-211FIXED IND 6.8MH 210MA 7 OHM TH |
1,523 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 210 mA | 440mA | Unshielded | 7Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.689" (17.50mm) |
|
PM13560S-6R0MFIXED IND 6UH 9.5A 10.7 MOHM SMD |
1,515 |
|
Datasheet |
PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 6 µH | ±20% | 9.5 A | - | Shielded | 10.7mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|

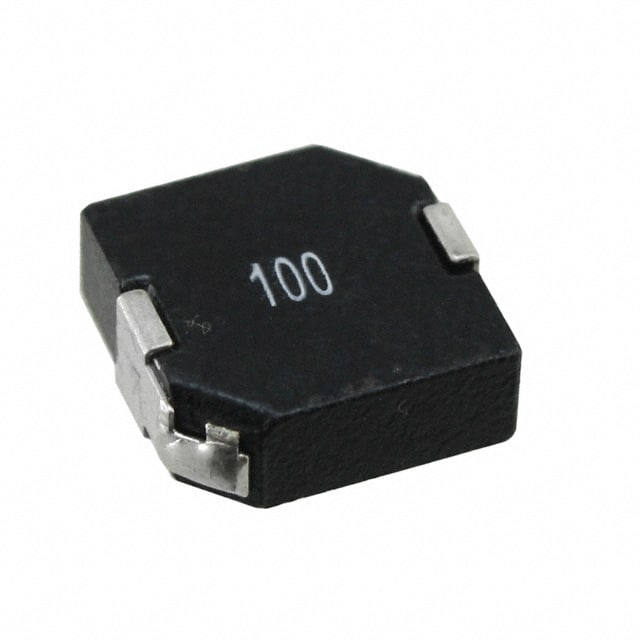

PM13560S-100MFIXED IND 10UH 7.5A 14.9MOHM SMD |
2,465 |
|
Datasheet |
PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±20% | 7.5 A | - | Shielded | 14.9mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
83421CFIXED IND 420NH 3A 24 MOHM SMD |
2,780 |
|
Datasheet |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 420 nH | ±20% | 3 A | 5.69A | Unshielded | 24mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
|
83751CFIXED IND 750NH 2.7A 30 MOHM SMD |
1,507 |
|
Datasheet |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 750 nH | ±20% | 2.7 A | 4.55A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
|
83122CFIXED IND 1.2UH 1.7A 65 MOHM SMD |
2,196 |
|
Datasheet |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 1.2 µH | ±20% | 1.7 A | 3.36A | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
