Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5022R-754JFIXED IND 750UH 112MA 28.6OHM SM |
2,407 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 750 µH | ±5% | 112 mA | - | Unshielded | 28.6Ohm Max | 65 @ 790kHz | 2.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-821JFIXED IND 820NH 1.3A 220MOHM SMD |
3,539 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 820 nH | ±5% | 1.3 A | - | Unshielded | 220mOhm Max | 50 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-822JFIXED IND 8.2UH 748MA 600MOHM SM |
1,476 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 8.2 µH | ±5% | 748 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-823JFIXED IND 82UH 295MA 3.9 OHM SMD |
3,765 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 82 µH | ±5% | 295 mA | - | Unshielded | 3.9Ohm Max | 50 @ 2.5MHz | 10.3MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-824JFIXED IND 820UH 110MA 30 OHM SMD |
1,395 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 820 µH | ±5% | 110 mA | - | Unshielded | 30Ohm Max | 65 @ 790kHz | 2.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-911JFIXED IND 910NH 1.24A 240MOHM SM |
2,683 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 910 nH | ±5% | 1.24 A | - | Unshielded | 240mOhm Max | 50 @ 25MHz | 210MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-912JFIXED IND 9.1UH 638MA 800MOHM SM |
4,227 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 9.1 µH | ±5% | 638 mA | - | Unshielded | 800mOhm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-913JFIXED IND 91UH 280MA 4.3 OHM SMD |
4,090 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 91 µH | ±5% | 280 mA | - | Unshielded | 4.3Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-914JFIXED IND 910UH 107MA 31.5OHM SM |
2,769 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 910 µH | ±5% | 107 mA | - | Unshielded | 31.5Ohm Max | 65 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
24FP-181KLFFIXED IND 1.8UH 5.43A 0.012OHM |
4,573 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±10% | 5.43 A | 10A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-471KLFFIXED IND 4.7UH 4.01A 0.022OHM |
1,559 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±10% | 4.01 A | 5.5A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-221KLFFIXED IND 2.2UH 5.22A 0.013OHM |
1,078 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±10% | 5.22 A | 9A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-271KLFFIXED IND 2.7UH 5.03A 0.014OHM |
3,712 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 2.7 µH | ±10% | 5.03 A | 8.2A | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-681KLFFIXED IND 6.8UH 3.69A 0.026OHM |
2,326 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±10% | 3.69 A | 4.5A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
SMRF1812T-391JLFMOLDED UNSHIELDED INDUCTOR |
3,494 |
|
Datasheet |
SMRF1812T | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.9 µH | ±5% | 443 mA | - | Unshielded | 900mOhm Max | 28 @ 7.9MHz | 42MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMRF1812S-563KLFMOLDED SHIELDED INDUCTOR |
1,493 |
|
Datasheet |
SMRF1812S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±10% | 106 mA | 47mA | Shielded | 17.8Ohm Max | 40 @ 790kHz | 2.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
24FP-561KLFFIXED IND 5.6UH 3.84A 0.024OHM |
3,983 |
|
Datasheet |
24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±10% | 3.84 A | 5A | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
SHBC8S-0R6A0043VCMC 43UH 2A 2LN TH |
2,438 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 43 µH | ±20% | 2 A | - | Unshielded | 54.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.669" Dia (17.00mm) | 0.669" (17.00mm) |
|
|
5526-6FIXED IND 222NH 3A SMD |
3,242 |
|
Datasheet |
5526 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 222 nH | ±5% | 3 A | - | Unshielded | - | 92 @ 50MHz | 730MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.420" L x 0.250" W (10.67mm x 6.35mm) | 0.235" (5.97mm) |
|

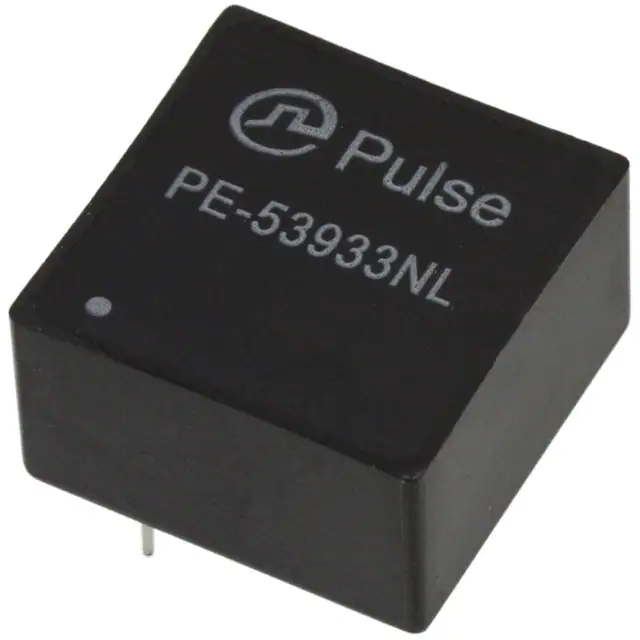

PE-53933NLFIXED IND 24UH 2.74A 70 MOHM TH |
3,896 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tray | Active | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
