Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD54R-393KFIXED IND 39UH 800MA 320MOHM SMD |
4,834 |
|
Datasheet |
PD54R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 800 mA | 800mA | Unshielded | 320mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.224" L x 0.201" W (5.70mm x 5.11mm) | 0.177" (4.50mm) |
|
|
PD54R-472MFIXED IND 4.7UH 1.8A 80 MOHM SMD |
3,718 |
|
Datasheet |
PD54R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.8 A | 1.8A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.224" L x 0.201" W (5.70mm x 5.11mm) | 0.177" (4.50mm) |
|
|
PD54R-473KFIXED IND 47UH 720MA 370MOHM SMD |
3,087 |
|
Datasheet |
PD54R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 720 mA | 720mA | Unshielded | 370mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.224" L x 0.201" W (5.70mm x 5.11mm) | 0.177" (4.50mm) |
|
|
PD54R-562MFIXED IND 5.6UH 1.7A 85 MOHM SMD |
3,280 |
|
Datasheet |
PD54R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1.7 A | 1.7A | Unshielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.224" L x 0.201" W (5.70mm x 5.11mm) | 0.177" (4.50mm) |
|
|
PD54R-563KFIXED IND 56UH 680MA 420MOHM SMD |
2,140 |
|
Datasheet |
PD54R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 680 mA | 680mA | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.224" L x 0.201" W (5.70mm x 5.11mm) | 0.177" (4.50mm) |
|
|
PD54R-682MFIXED IND 6.8UH 1.6A 90 MOHM SMD |
3,863 |
|
Datasheet |
PD54R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.6 A | 1.6A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.224" L x 0.201" W (5.70mm x 5.11mm) | 0.177" (4.50mm) |
|
|
PD54R-683KFIXED IND 68UH 630MA 500MOHM SMD |
3,895 |
|
Datasheet |
PD54R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 630 mA | 630mA | Unshielded | 500mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.224" L x 0.201" W (5.70mm x 5.11mm) | 0.177" (4.50mm) |
|
|
PD54R-822MFIXED IND 8.2UH 1.5A 95 MOHM SMD |
2,886 |
|
Datasheet |
PD54R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.5 A | 1.5A | Unshielded | 95mOhm Max | - | - | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.224" L x 0.201" W (5.70mm x 5.11mm) | 0.177" (4.50mm) |
|
|
PD54R-823KFIXED IND 82UH 580MA 600MOHM SMD |
1,745 |
|
Datasheet |
PD54R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 580 mA | 580mA | Unshielded | 600mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.224" L x 0.201" W (5.70mm x 5.11mm) | 0.177" (4.50mm) |
|

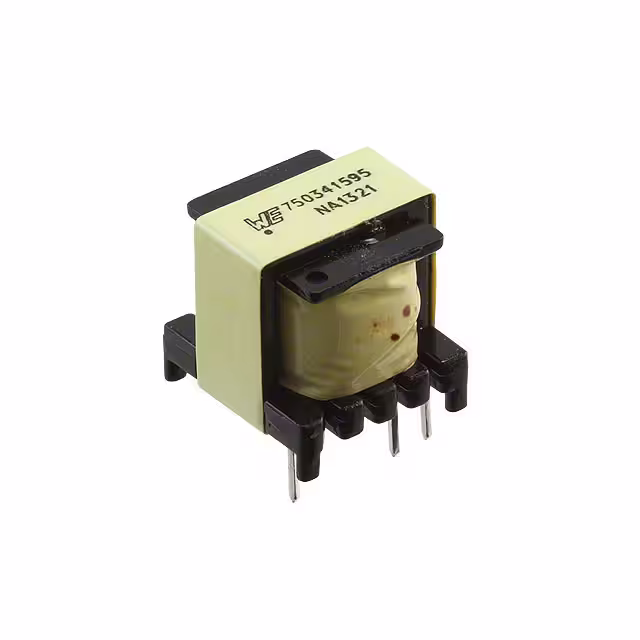

750341595FIXED IND 700UH 1.329 OHM TH |
3,068 |
|
Datasheet |
MID-DC16US | Radial, Vertical, 4 Leads | Tray | Active | - | - | 700 µH | ±5% | - | - | - | 1.329Ohm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Through Hole | - | 0.580" L x 0.580" W (14.73mm x 14.73mm) | 0.600" (15.24mm) |
|
DLO1-24-0003FIXED IND 3A 70 MOHM TH |
1,690 |
|
Datasheet |
DLO | Radial, Vertical (Open) | Bulk | Obsolete | - | - | - | - | 3 A | - | - | 70mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.787" Dia x 0.394" W (20.00mm x 10.00mm) | - |
|
|
PM12645S-1R2MFIXED IND 1.2UH 20A 2 MOHM SMD |
1,106 |
|
Datasheet |
PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.2 µH | ±20% | 20 A | - | Shielded | 2mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
PM12645S-1R8MFIXED IND 1.8UH 13A 3.5 MOHM SMD |
3,328 |
|
Datasheet |
PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.8 µH | ±20% | 13 A | - | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|

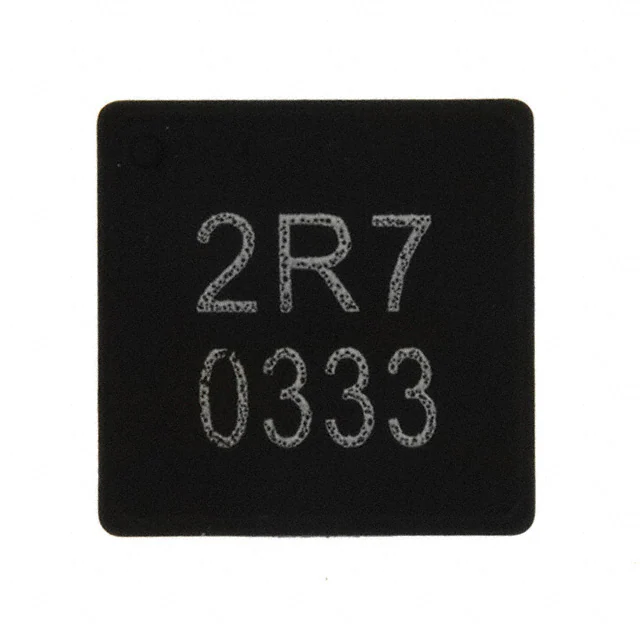

PM12645S-2R7MFIXED IND 2.7UH 12A 4.3 MOHM SMD |
4,322 |
|
Datasheet |
PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±20% | 12 A | - | Shielded | 4.3mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|

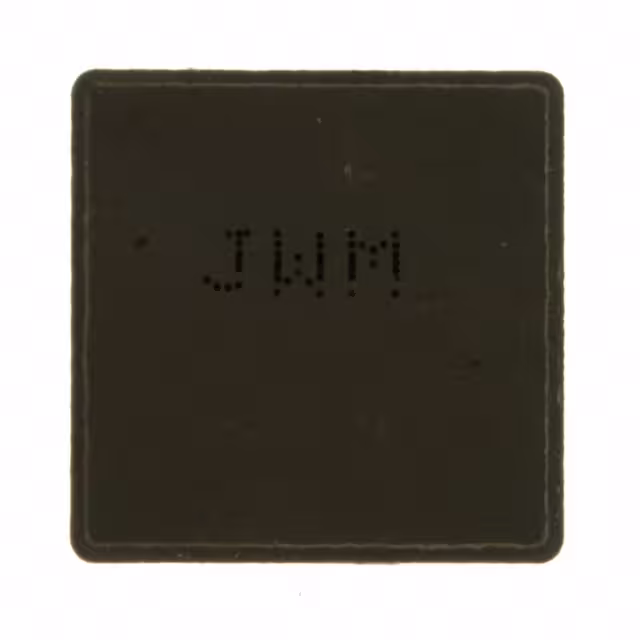

PM12651S-4R7MFIXED IND 4.7UH 12A 7.2 MOHM SMD |
2,625 |
|
Datasheet |
PM12651S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 12 A | - | Shielded | 7.2mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
SBCP-80HY331HFIXED IND 330UH 700MA 750MOHM TH |
3,158 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 700 mA | 850mA | Unshielded | 750mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY820HFIXED IND 82UH 1.3A 240 MOHM TH |
2,917 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.3 A | 1.7A | Unshielded | 240mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY221HFIXED IND 220UH 900MA 520MOHM TH |
4,113 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 900 mA | 1A | Unshielded | 520mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
FP0507V2-R100-RFLAT-PAC IND 100NH 38A 2 PADS |
2,813 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SC30331KTFIXED IND 330UH 79MA 28 OHM TH |
4,726 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Tape & Box (TB) | Active | - | - | 330 µH | ±10% | 79 mA | - | Shielded | 28Ohm Max | 30 @ 790kHz | 7MHz | - | -55°C ~ 100°C | 790 kHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
