Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
22FP-682LMOLDED AXIAL LEAD INDUCTOR |
1,271 |
|
Datasheet |
22FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±15% | 970 mA | 970mA | Unshielded | 418mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
22FP-273LMOLDED AXIAL LEAD INDUCTOR |
2,564 |
|
Datasheet |
22FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 270 µH | ±15% | 470 mA | 470mA | Unshielded | 1.77Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
22FP-182LMOLDED AXIAL LEAD INDUCTOR |
4,011 |
|
Datasheet |
22FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±15% | 1.82 A | 1.82A | Unshielded | 119mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
22FP-563LMOLDED AXIAL LEAD INDUCTOR |
3,360 |
|
Datasheet |
22FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±15% | 330 mA | 330mA | Unshielded | 3.75Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
22FP-822LMOLDED AXIAL LEAD INDUCTOR |
3,771 |
|
Datasheet |
22FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±15% | 810 mA | 810mA | Unshielded | 604mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
22FP-823LMOLDED AXIAL LEAD INDUCTOR |
3,774 |
|
Datasheet |
22FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±15% | 260 mA | 260mA | Unshielded | 6.04Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
22FP-153LMOLDED AXIAL LEAD INDUCTOR |
2,557 |
|
Datasheet |
22FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 150 µH | ±15% | 630 mA | 630mA | Unshielded | 913mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
22FP-683LMOLDED AXIAL LEAD INDUCTOR |
4,463 |
|
Datasheet |
22FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 µH | ±15% | 300 mA | 300mA | Unshielded | 4.31Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
22FP-102LMOLDED AXIAL LEAD INDUCTOR |
1,645 |
|
Datasheet |
22FP | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 10 µH | ±15% | 2.36 A | 2.36A | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
LQH66SNR27M03LFIXED IND 270NH 6A 9.8 MOHM SMD |
3,964 |
|
Datasheet |
LQH66 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±20% | 6 A | - | Shielded | 9.8mOhm Max | - | 300MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2525 (6363 Metric) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
|
LQH66SNR68M03LFIXED IND 680NH 5.3A 14 MOHM SMD |
1,992 |
|
Datasheet |
LQH66 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 5.3 A | - | Shielded | 14mOhm Max | - | 180MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2525 (6363 Metric) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
|
MP2A-1R0-RFIXED IND 1UH 2.11A 67 MOHM SMD |
1,835 |
|
Datasheet |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 1 µH | ±20% | 2.11 A | 3.63A | Unshielded | 67mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
|
MP2A-R68-RFIXED IND 680NH 3.31A 27MOHM SMD |
3,243 |
|
Datasheet |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 680 nH | ±20% | 3.31 A | 4.83A | Unshielded | 27mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
|
LQH66SN472M03LFIXED IND 4.7MH 70MA 27.3OHM SMD |
1,709 |
|
Datasheet |
LQH66 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±20% | 70 mA | - | Shielded | 27.3Ohm Max | - | 800kHz | - | -40°C ~ 80°C | 10 kHz | - | Surface Mount | 2525 (6363 Metric) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|

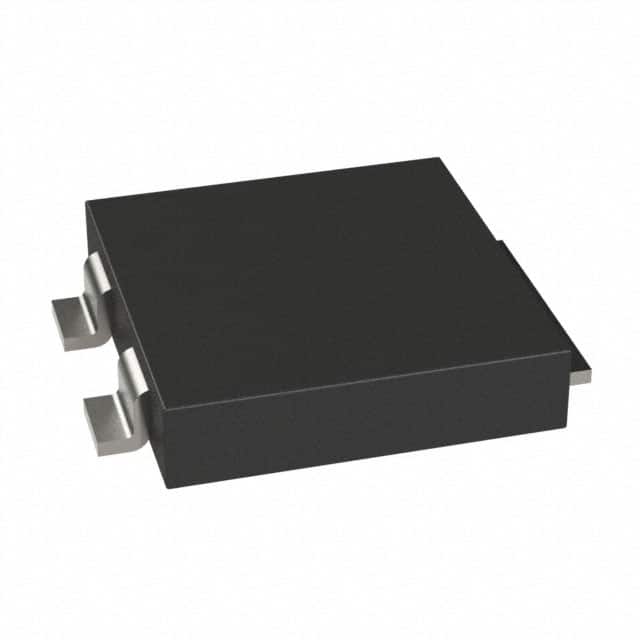

74431323016FIXED IND 160NH 26A 0.0007OHM SM |
1,818 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 160 nH | ±15% | 26 A | 35.1A | Shielded | 0.7mOhm | - | 113MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1323 | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.091" (2.30mm) |
|
|
74431323012FIXED IND 120NH 26A 0.0007OHM SM |
2,962 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±15% | 26 A | 47.8A | Shielded | 0.7mOhm | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1323 | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.091" (2.30mm) |
|
|
10M182KMOLDED UNSHIELDED RF COILS AXIAL |
4,358 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 18 µH | ±10% | 145 mA | - | Unshielded | 3.1Ohm Max | 50 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M152KMOLDED UNSHIELDED RF COILS AXIAL |
3,906 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 15 µH | ±10% | 150 mA | - | Unshielded | 2.8Ohm Max | 45 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
P1330-104JFIXED IND 100UH 347MA 1.68OHM SM |
1,454 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±5% | 347 mA | 132mA | Unshielded | 1.68Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-105JFIXED IND 1MH 105MA 11.16OHM SMD |
2,552 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±5% | 105 mA | 22mA | Unshielded | 11.16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
