Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMRF1812-471KLFMOLDED UNSHIELDED INDUCTOR |
3,343 |
|
- |
SMRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±10% | 448 mA | - | Unshielded | 1Ohm Max | 50 @ 7.9MHz | 35MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMRF1812-220JMOLDED UNSHIELDED INDUCTOR |
4,052 |
|
- |
SMRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±5% | 708 mA | - | Unshielded | 400mOhm Max | 40 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMRF1812-152KMOLDED UNSHIELDED INDUCTOR |
1,232 |
|
- |
SMRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±10% | 283 mA | - | Unshielded | 2.5Ohm Max | 50 @ 2.5MHz | 17MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMRF1812-332KMOLDED UNSHIELDED INDUCTOR |
1,002 |
|
Datasheet |
SMRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 33 µH | ±10% | 224 mA | - | Unshielded | 4Ohm Max | 50 @ 2.5MHz | 11MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMRF1812S-680MMOLDED SHIELDED INDUCTOR |
4,316 |
|
Datasheet |
SMRF1812S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 680 nH | ±20% | 1.117 A | 900mA | Shielded | 160mOhm Max | 40 @ 25MHz | 166MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMRF1812-151KLFMOLDED UNSHIELDED INDUCTOR |
1,575 |
|
Datasheet |
SMRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±10% | 578 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 70MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.138" (3.50mm) |
|

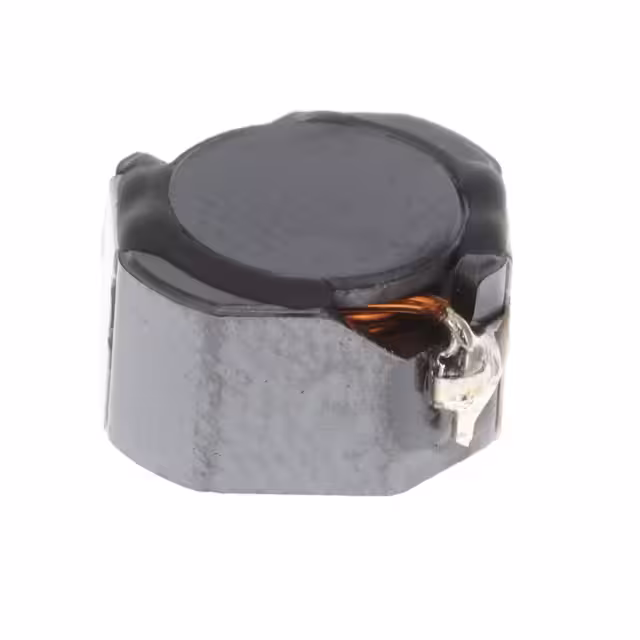

CDRH10D60BT150NP-100MCFIXED IND 10UH 6.9A 17 MOHM SMD |
1,925 |
|
Datasheet |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 6.9 A | 6.2A | Shielded | 17mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
|
CSAB1265A-4R7MMOLDING POWER CHOKE |
3,904 |
|
Datasheet |
CSAB1265A | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

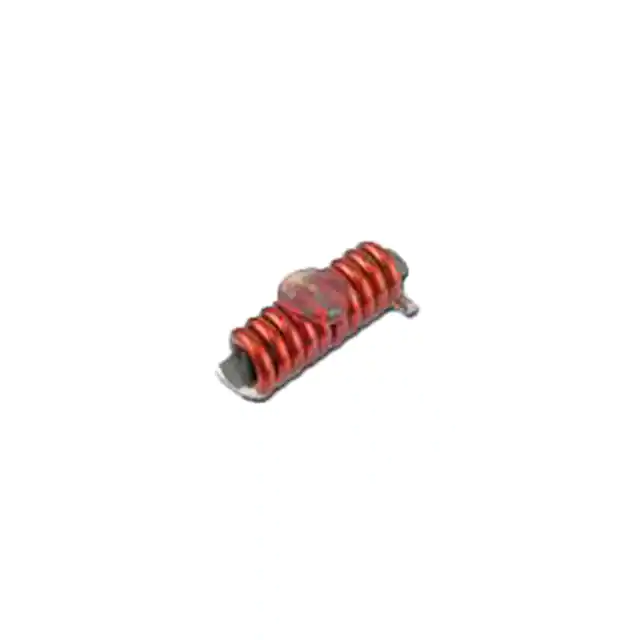

110001150FIXED IND 1.41UH 18.5A 1.1 MOHM |
4,742 |
|
Datasheet |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.41 µH | ±20% | 18.5 A | 14A | Unshielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.362" Dia x 0.984" L (9.20mm x 25.00mm) | - |
|
SP1210-102KFIXED IND 1UH 1.19A 147 MOHM SMD |
3,000 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 1.19 A | 1.29A | Shielded | 147mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-103KFIXED IND 10UH 464MA 960MOHM SMD |
3,776 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 464 mA | 410mA | Shielded | 960mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-104KFIXED IND 100UH 154MA 8.7OHM SMD |
4,878 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 154 mA | 129mA | Shielded | 8.7Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-122KFIXED IND 1.2UH 1.14A 160MOHM SM |
4,063 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 1.14 A | 1.18A | Shielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-123KFIXED IND 12UH 400MA 1.3 OHM SMD |
4,680 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 400 mA | 375mA | Shielded | 1.3Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-124KFIXED IND 120UH 147MA 9.6OHM SMD |
2,213 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 147 mA | 118mA | Shielded | 9.6Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-152KFIXED IND 1.5UH 1.08A 175MOHM SM |
4,026 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 1.08 A | 1.06A | Shielded | 175mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-153KFIXED IND 15UH 336MA 1.8 OHM SMD |
4,491 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 336 mA | 338mA | Shielded | 1.8Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-154KFIXED IND 150UH 124MA 13.5OHM SM |
1,377 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 124 mA | 106mA | Shielded | 13.5Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-182KFIXED IND 1.8UH 1.03A 195MOHM SM |
4,414 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 1.03 A | 965mA | Shielded | 195mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-183KFIXED IND 18UH 322MA 2 OHM SMD |
4,940 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 322 mA | 304mA | Shielded | 2Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
